1/2″ Flow Meter
57.259 Ft

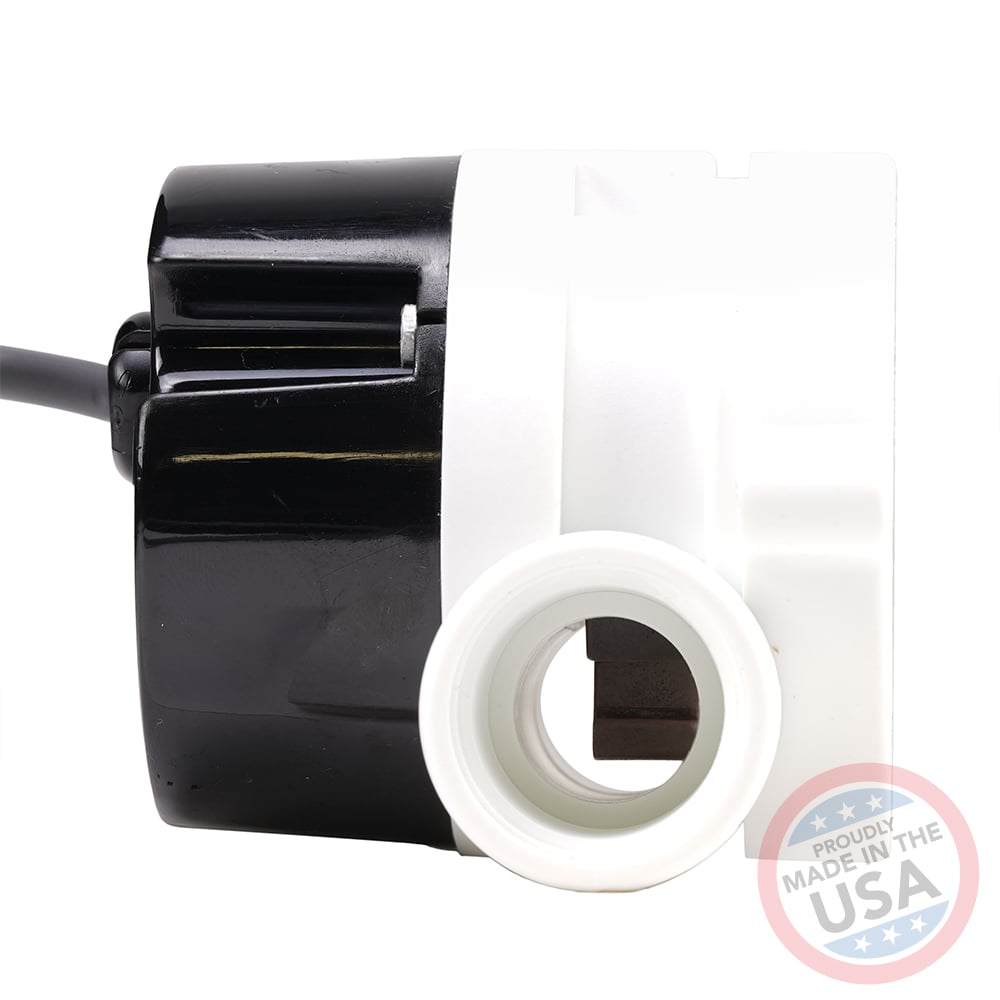

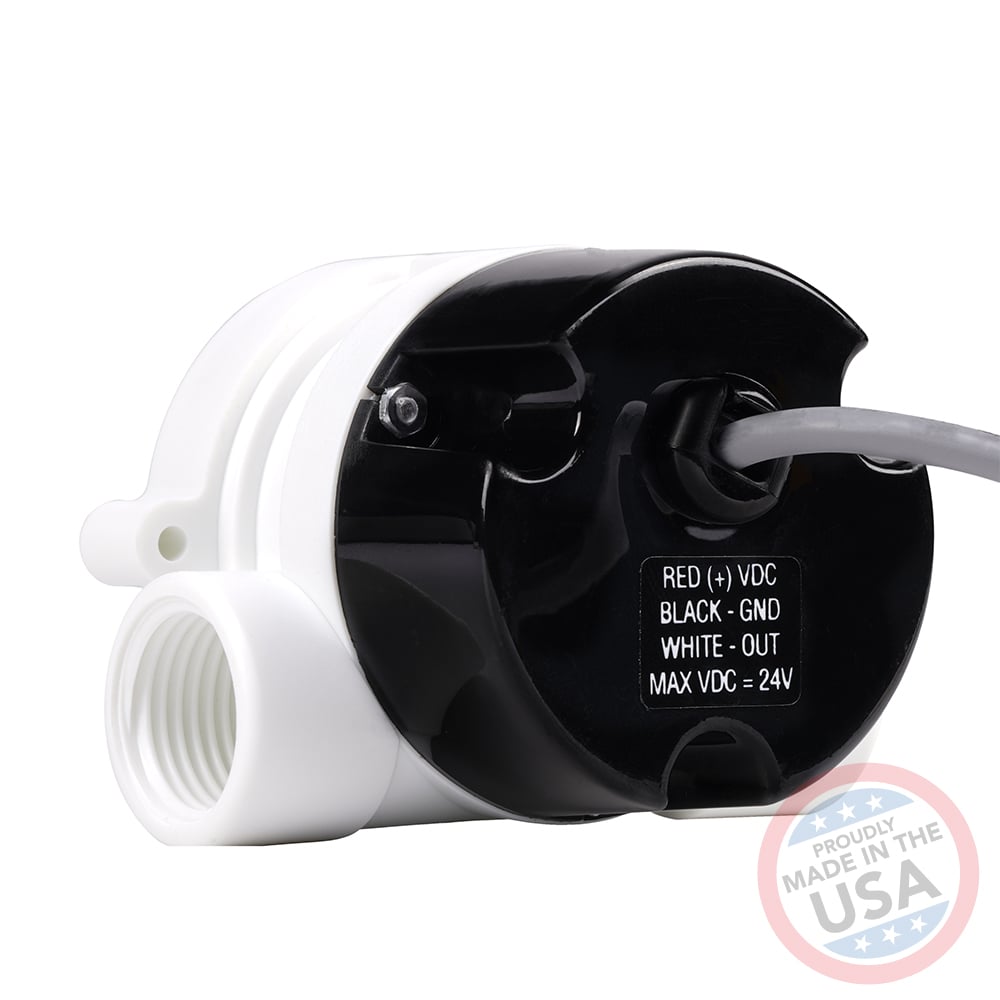

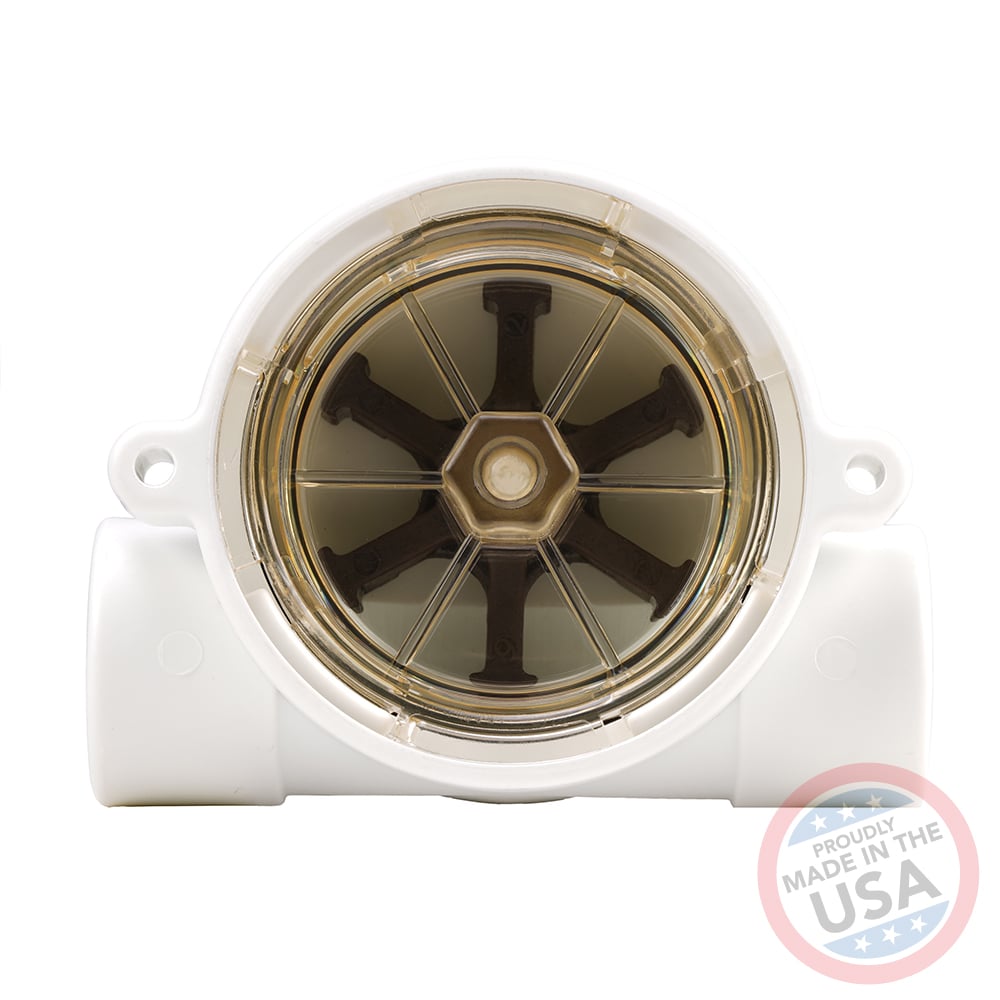

Our 1/2” female NPT magnetic paddle wheel flow meter has been designed within a compact inline housing and provides accurate flow rate measurements with built-in visual confirmation. This flow meter is intended for medium flow ranges from 5.7 L/min (1.5 GPM) up to 75.7 L / min (20 GPM).

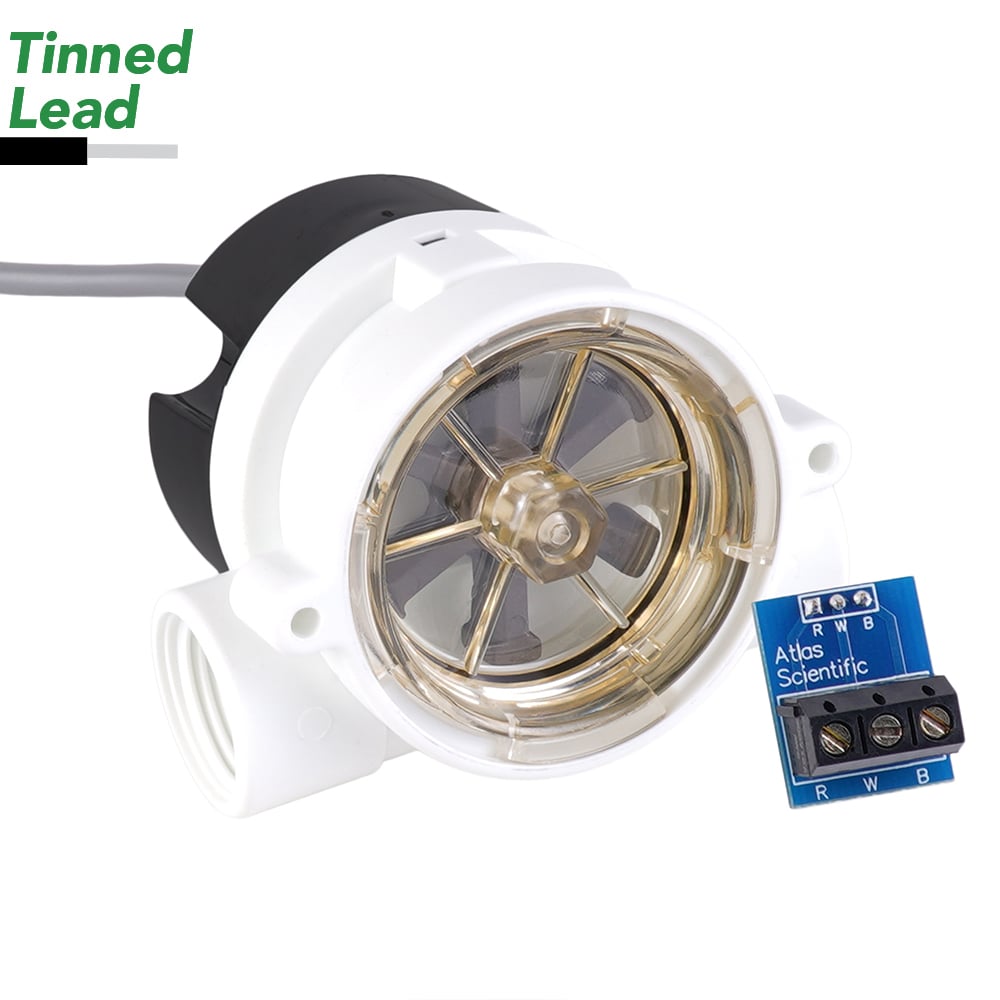

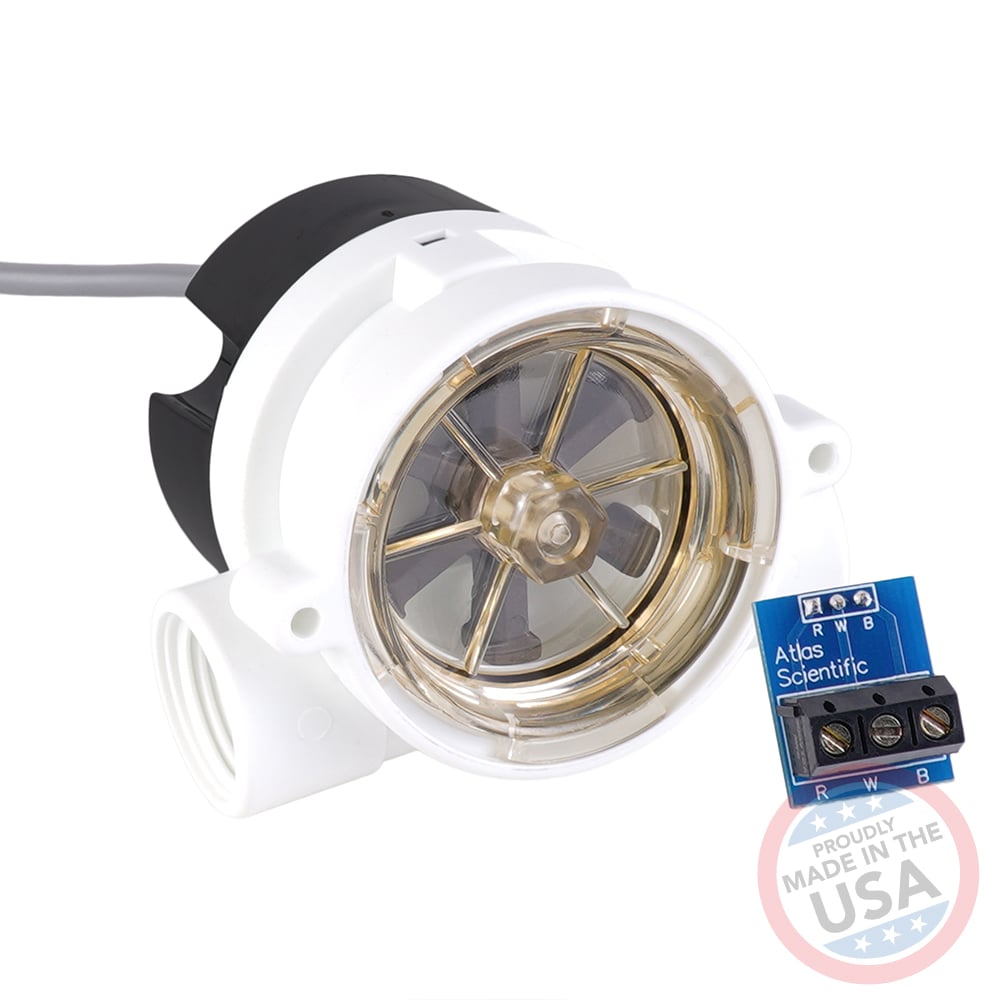

Every Atlas Scientific flow meter comes with our flow connector board, that allows the user to easily connect the flow meter to our EZO™ Embedded Flow Meter Totalizer.
Specifications
| Reads | Total flow and flow rate |
| Range | 5.7 L/min – 75.70 L/min |
| Accuracy | +/– 10% |

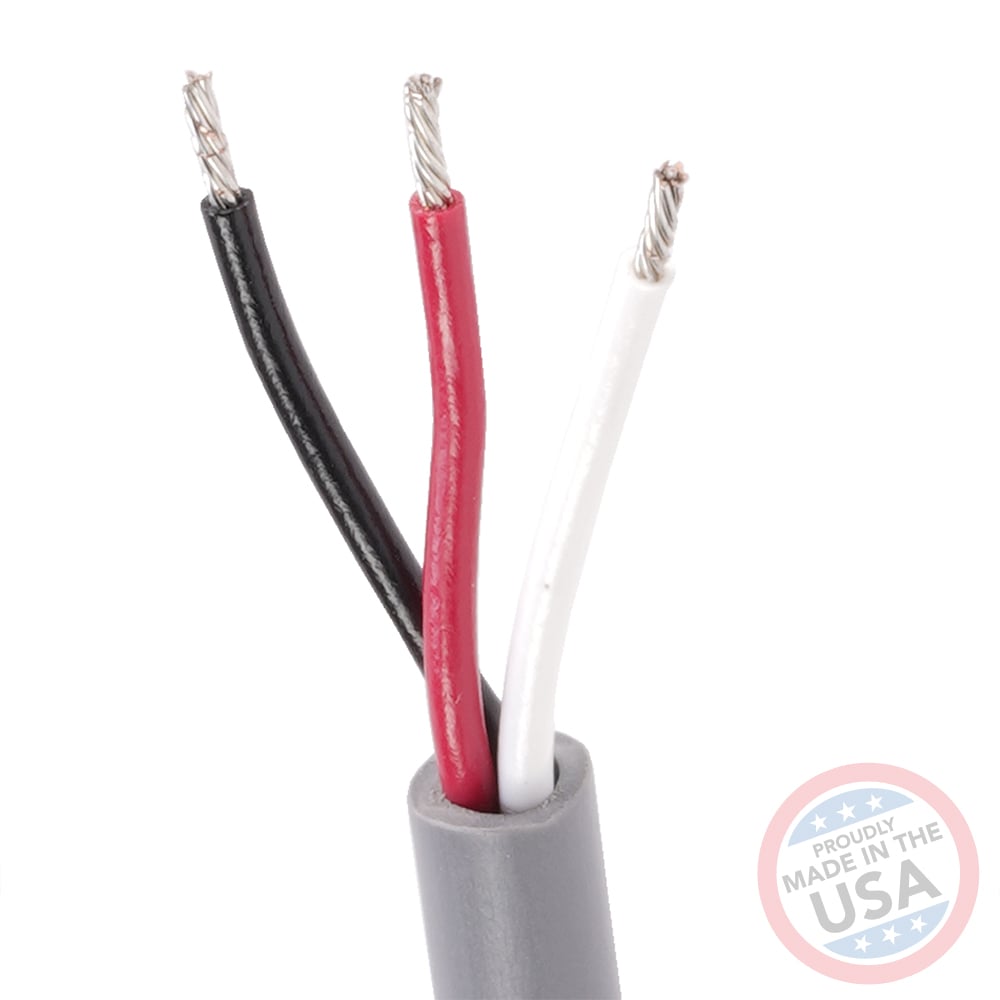

| Connector | Tinned leads |
| Thread | 1/2” Female NPT |
| Max pressure | 100 PSI |
| Temperature range °C | -29 − 82 °C |
| Max viscosity | 200 SSU |
| Cable length | 69cm (27.1″) |
| Voltage | 4.0V – 24 VDC |
| Life expectancy | ~10 years |
