1/4″ Flow Meter
98.038 Ft

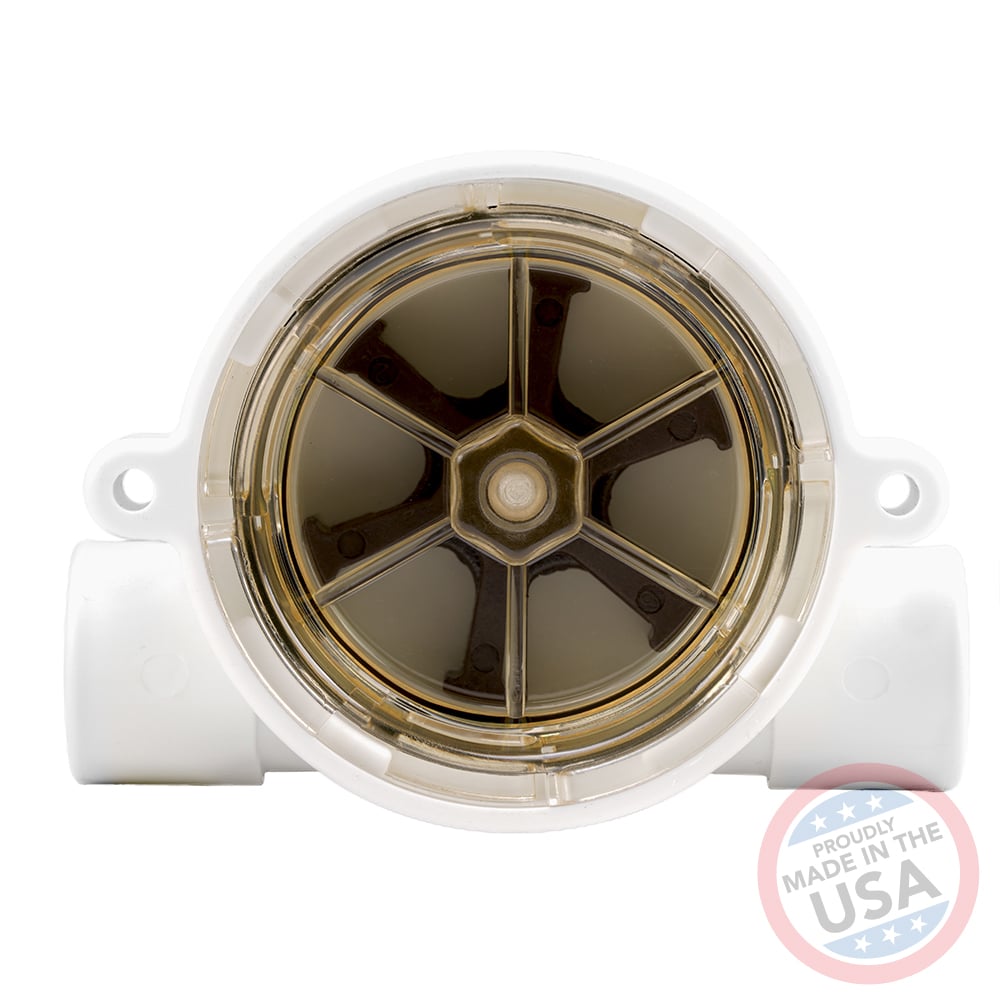

Our 1/4” female NPT magnetic paddle wheel flow meter has been designed within a compact inline housing and provides accurate flow rate measurements with built-in visual confirmation. This flow meter is intended for medium-to-low flow ranges from 378 mL/min (0.1GPM) up to 19 L / min (5 GPM).

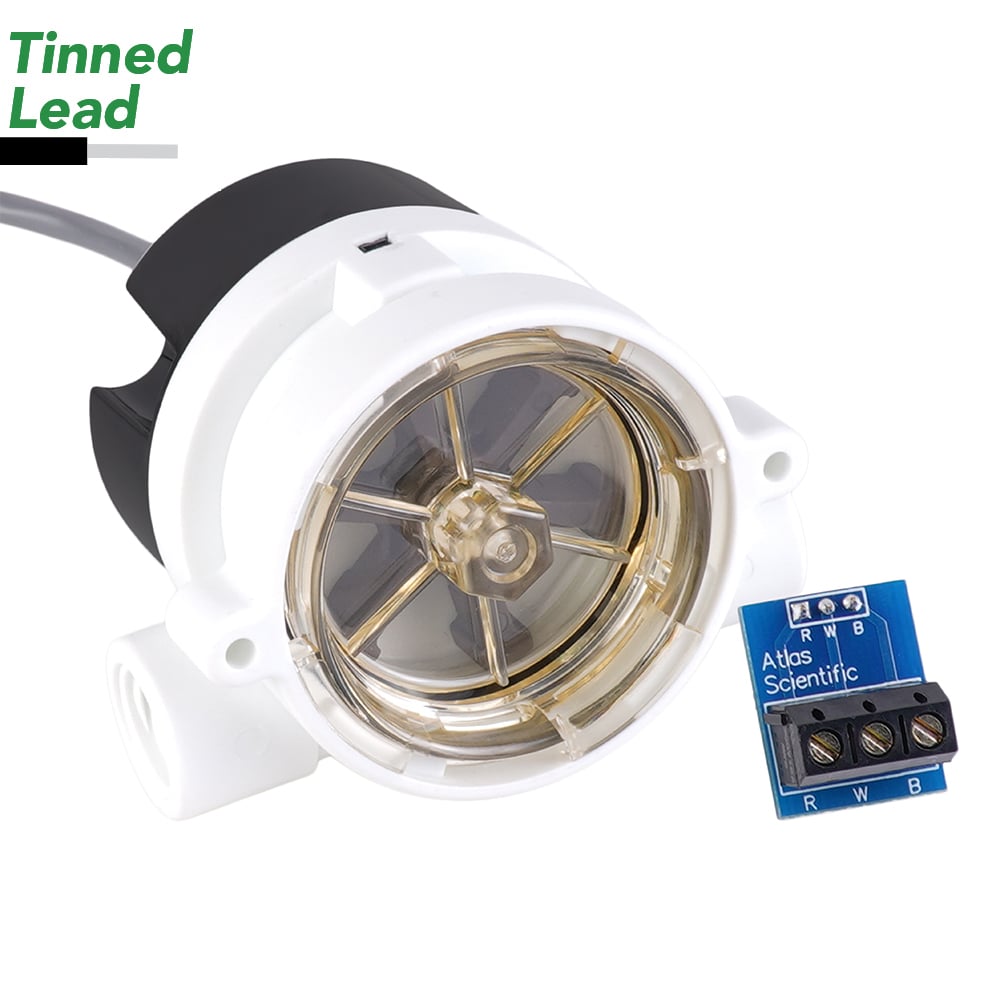

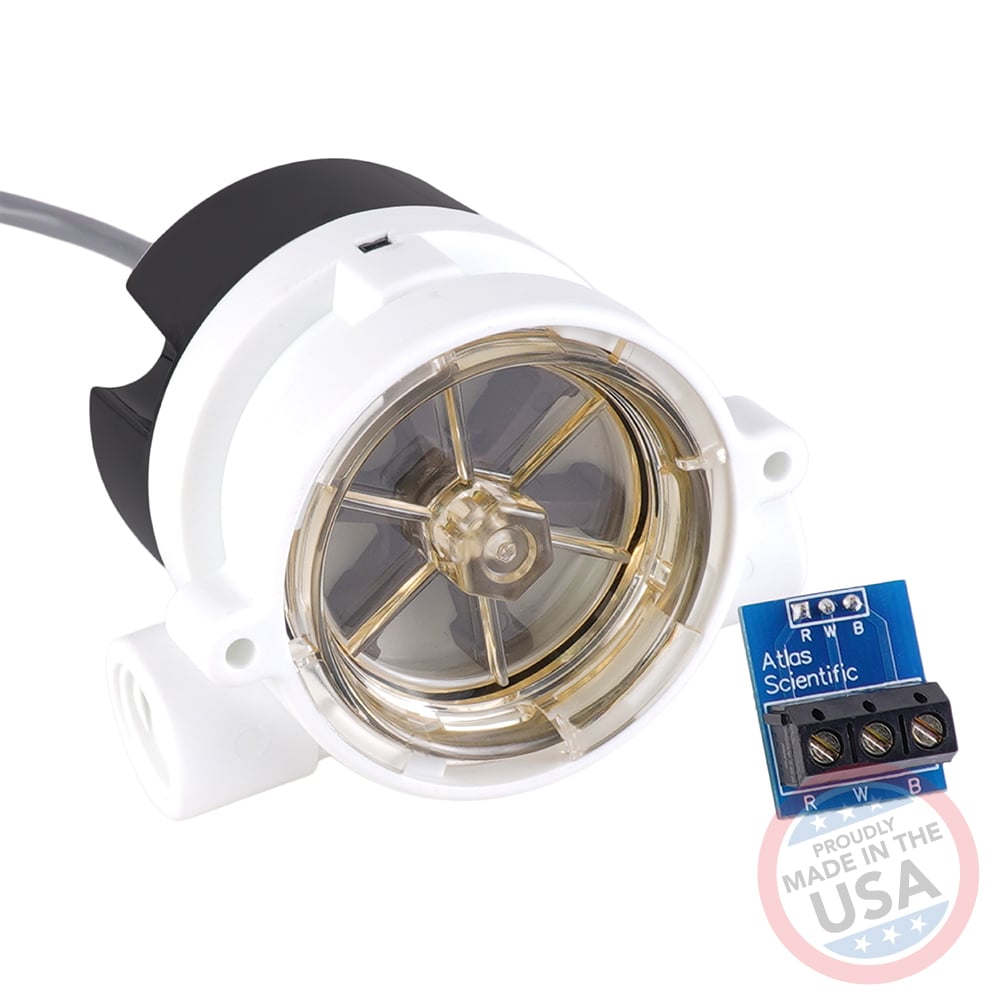

Every Atlas Scientific flow meter comes with our flow connector board, that allows the user to easily connect the flow meter to our EZO™ Embedded Flow Meter Totalizer.
Specifications
| Reads | Total flow and flow rate |
| Range | 378 ml/min – 19 L/min |
| Accuracy | +/– 10% |

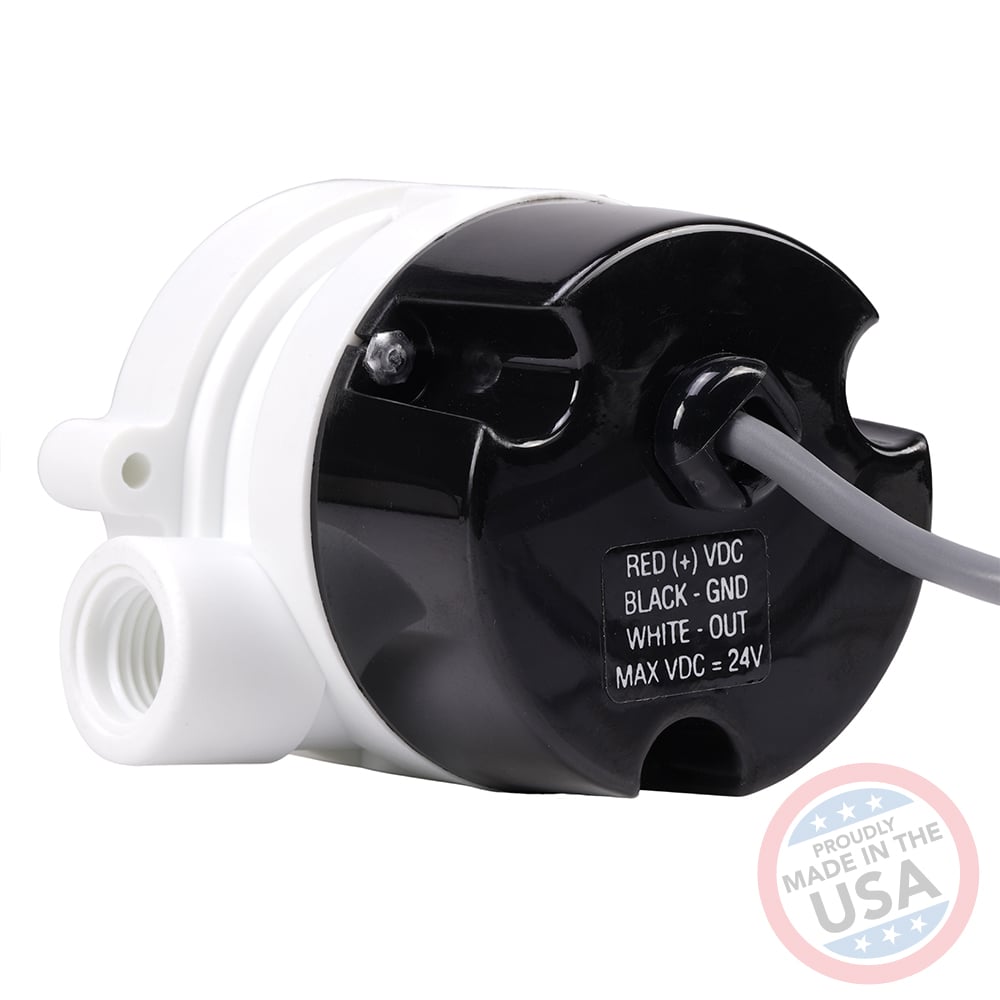

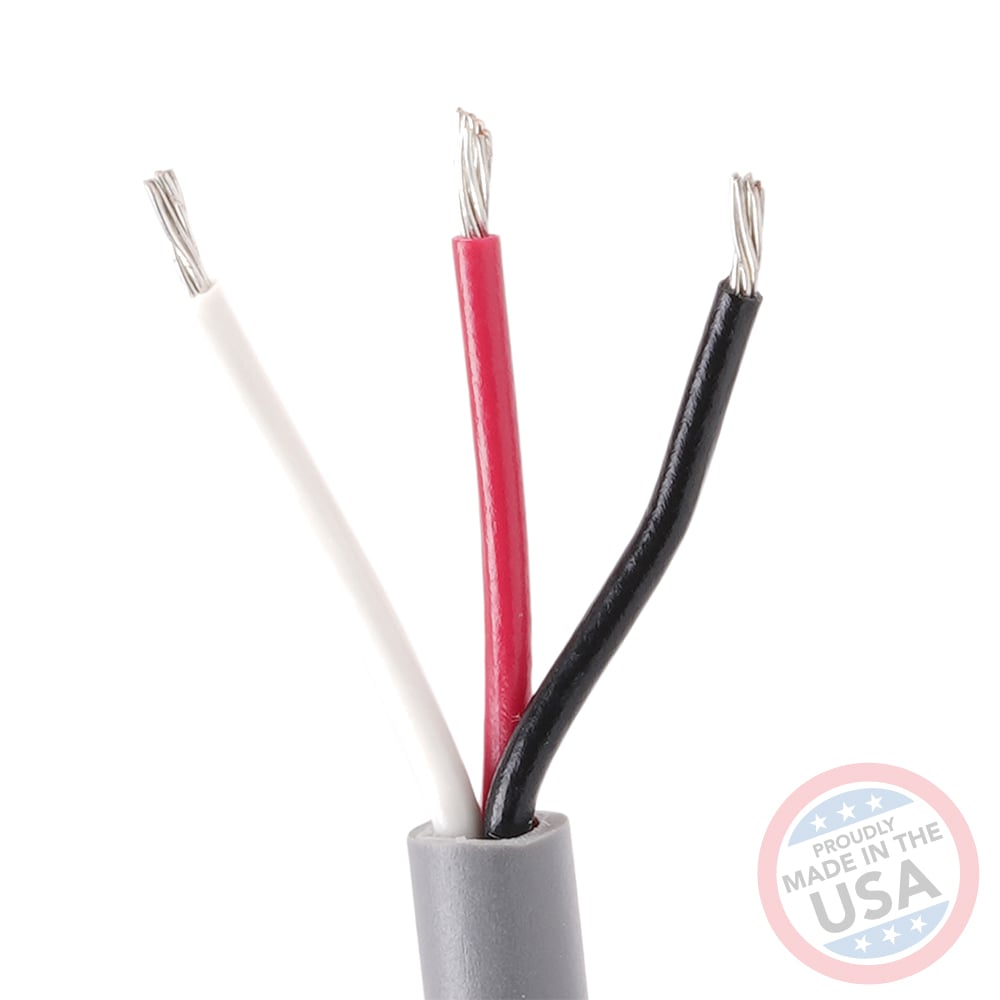

| Connector | Tinned leads |

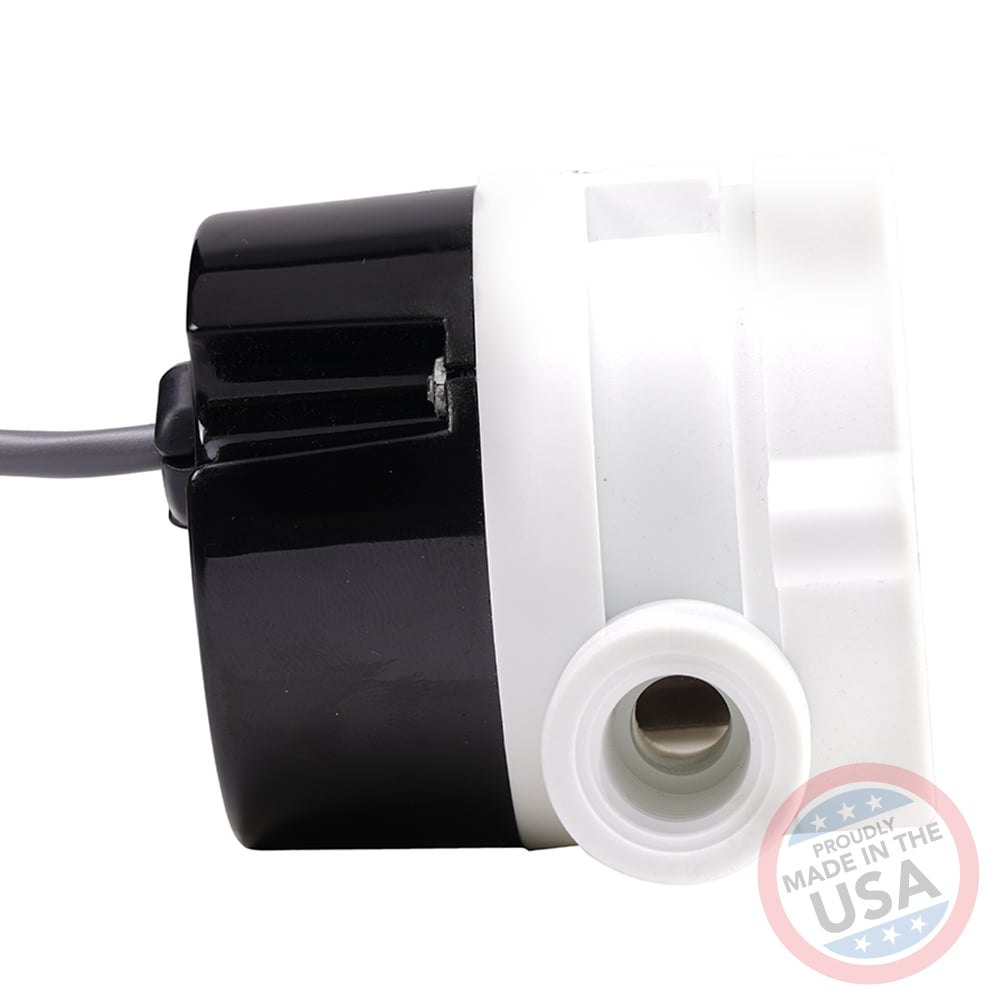

| Thread | 1/4” Female NPT |
| Max pressure | 100 PSI |
| Temperature range °C | -29 − 82 °C |
| Max viscosity | 200 SSU |
| Cable length | 69cm (27.1″) |
| Voltage | 4.0V – 24 VDC |
| Life expectancy | ~10 years |
