3/8″ Flow Meter

3/8″ Flow Meter

Regular price 53.337 HUF
Regular price Sale price 53.337 HUF
Sale Sold out
Taxes included.

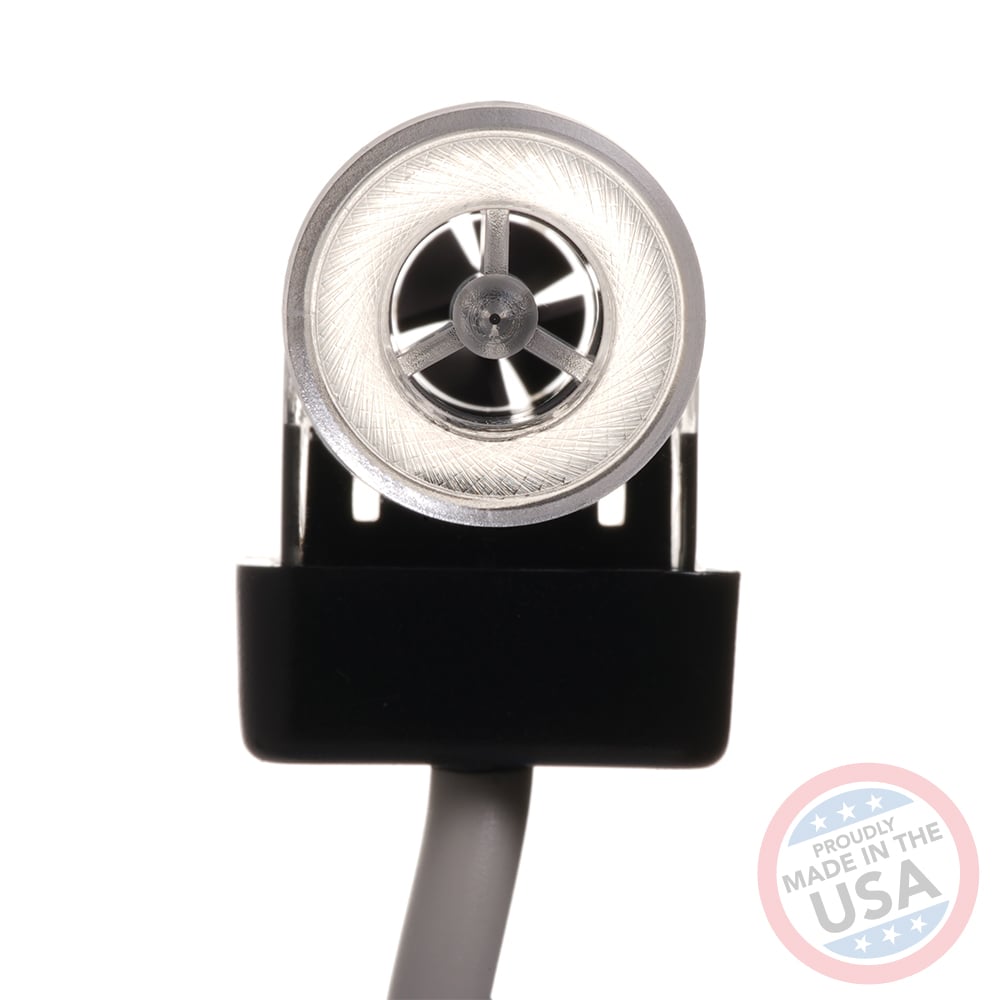

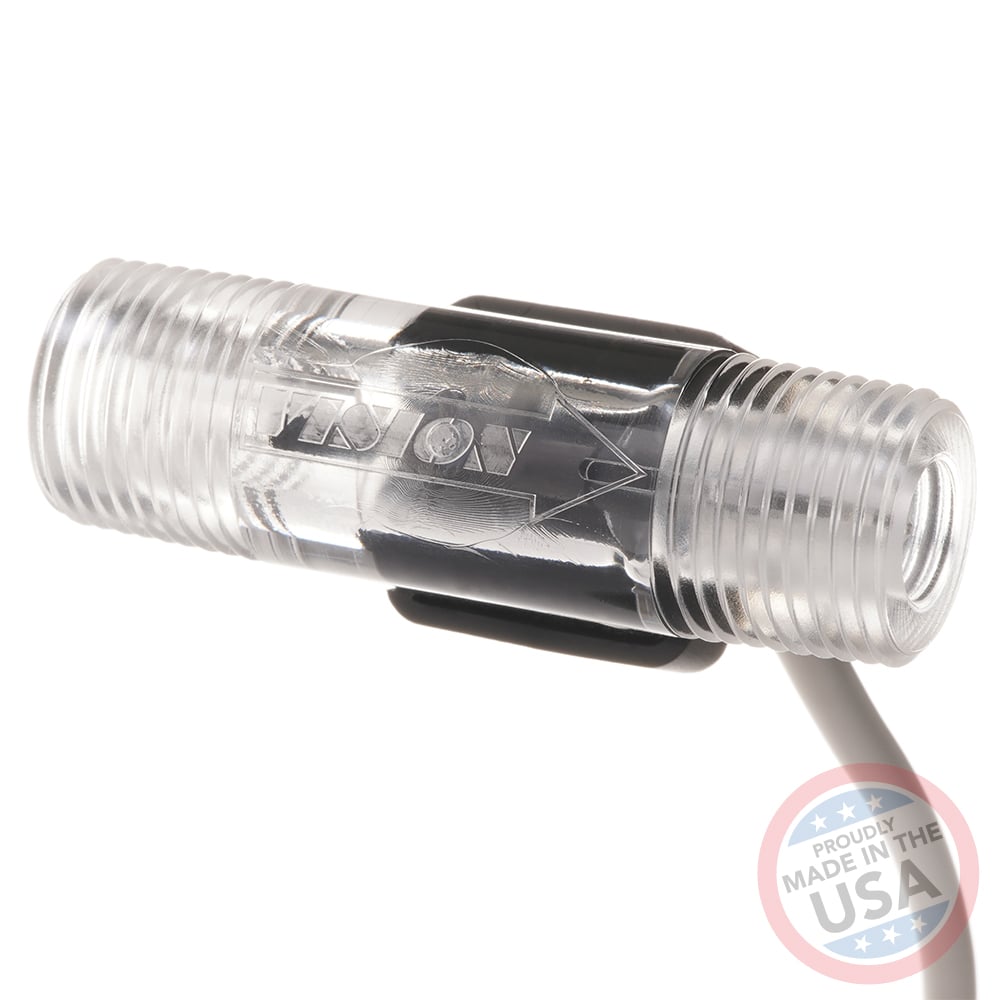

Our 3/8” male NPT turbine flow meters are compact, lightweight and allow for highly accurate and repeatable measurements during quick dispensing or metering cycles. This flow meter is intended for low flow ranges from 1 L/min (0.2GPM) up to 15 L/min (3.96 GPM).

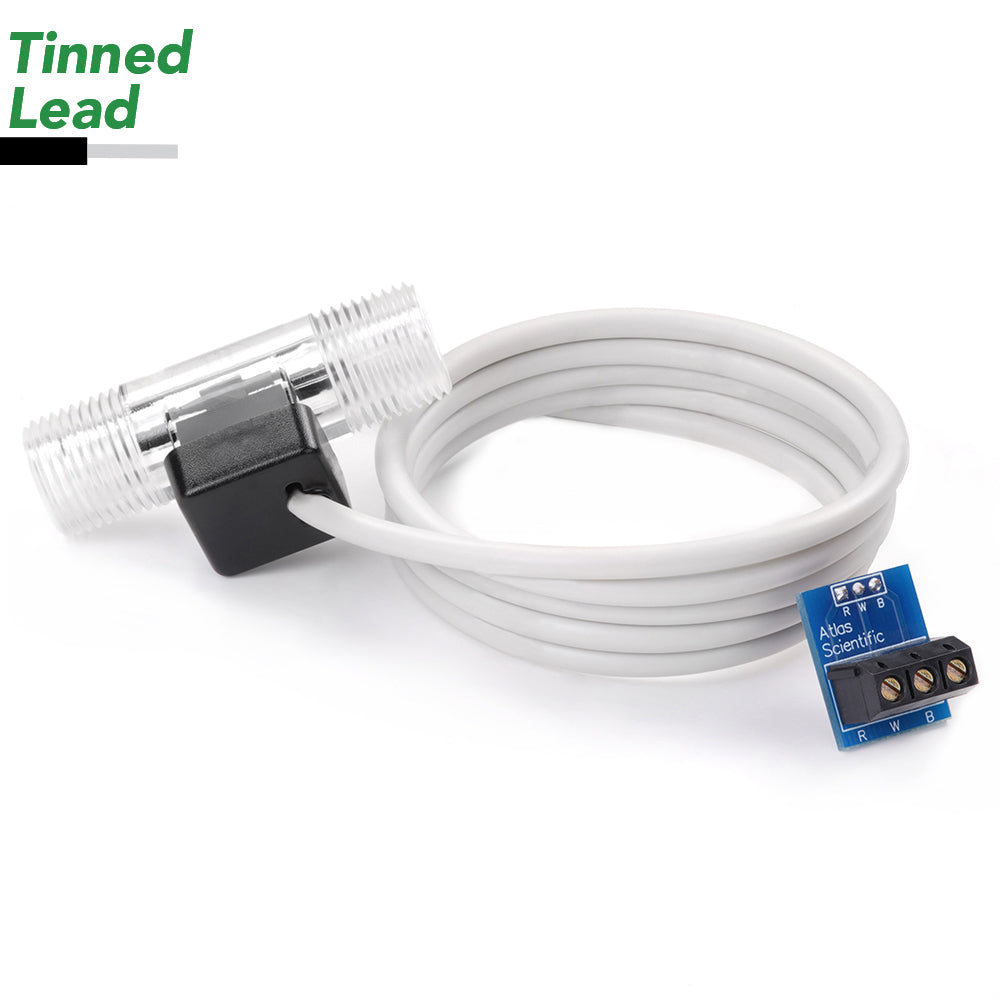

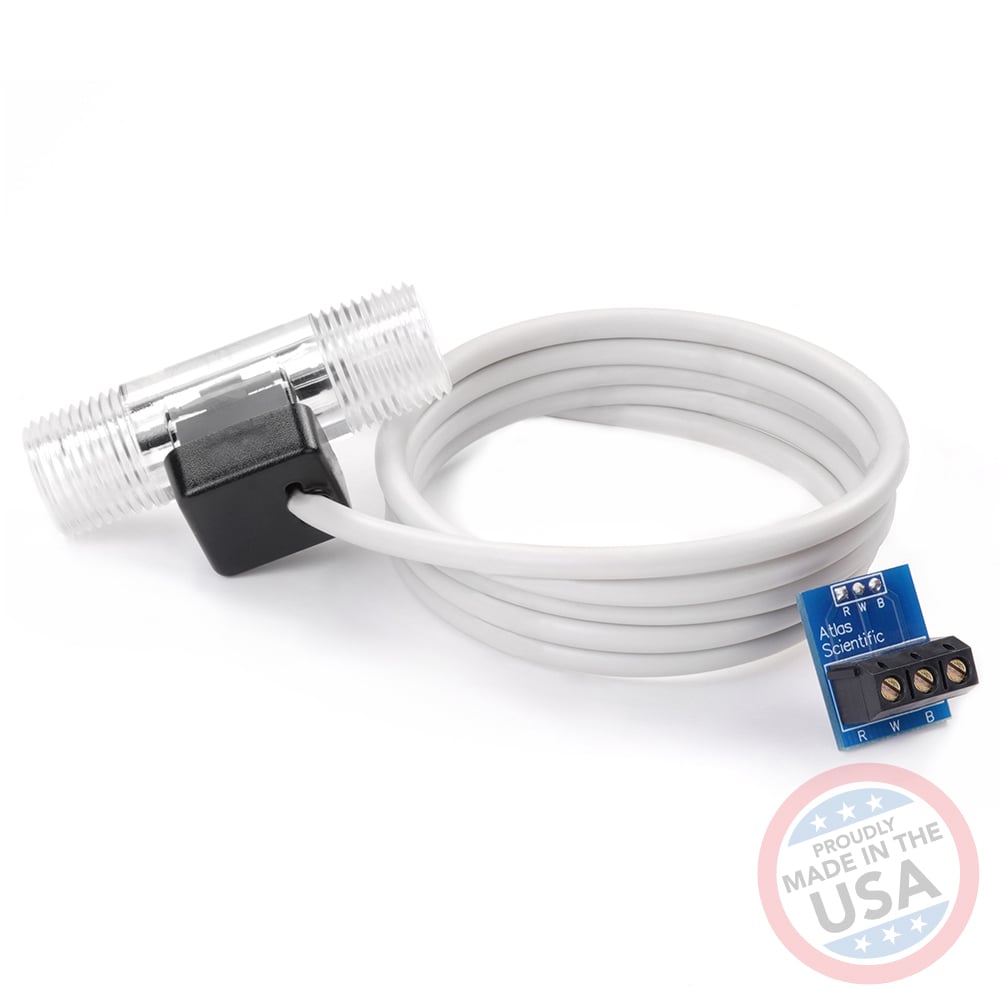

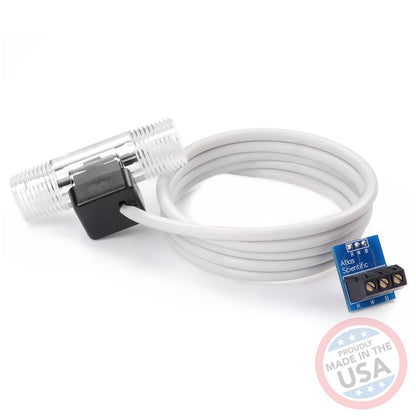

Every Atlas Scientific flow meter comes with our flow connector board, that allows the user to easily connect the flow meter to our EZO™ Embedded Flow Meter Totalizer.

Specifications

Reads Total flow and flow rate
Range 1 L/min – 15 L/min
Accuracy +/– 2%

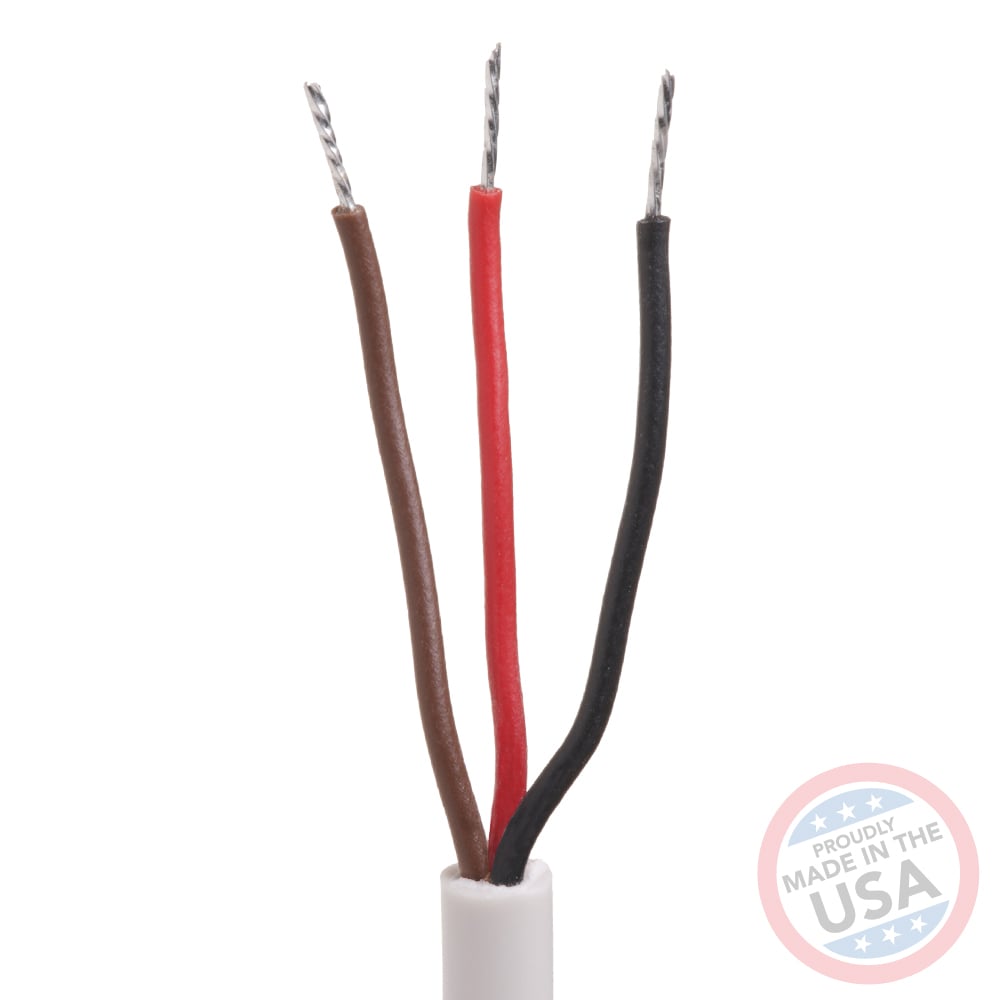

Connector Tinned leads
Thread 3/8” Male NPT
Max pressure 200 PSI
Temperature range °C -20 − 80 °C
Max viscosity 81 SSU
Cable length 86cm (33.8″)
Voltage 3.3V – 24 VDC
Life expectancy ~10 years

Documents & downloads

View full details
