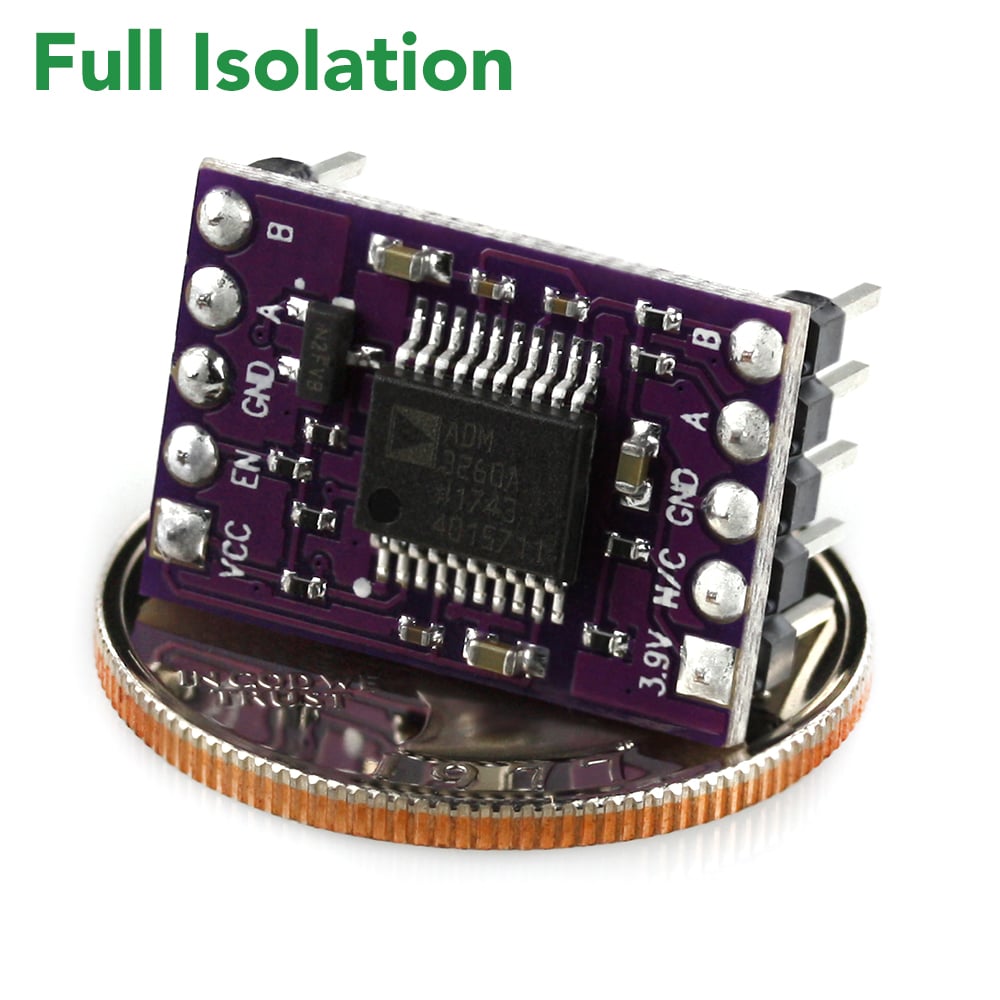

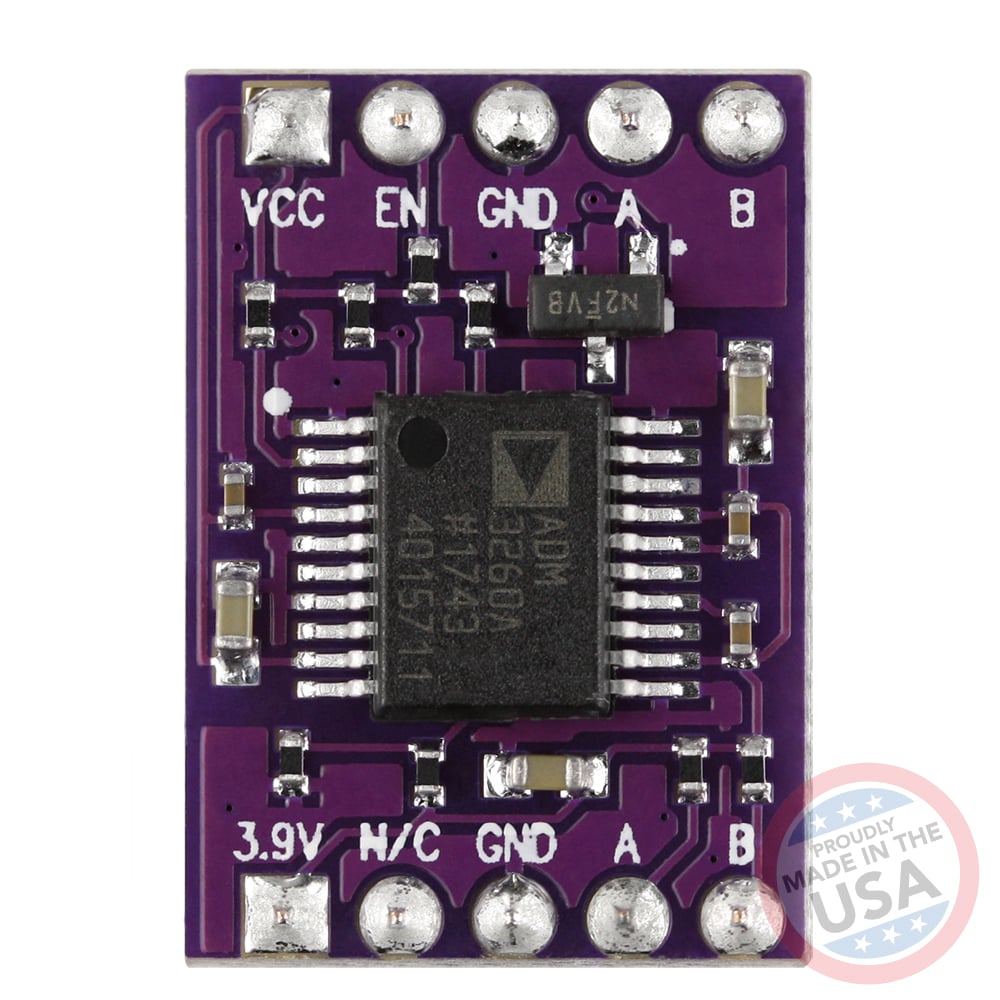

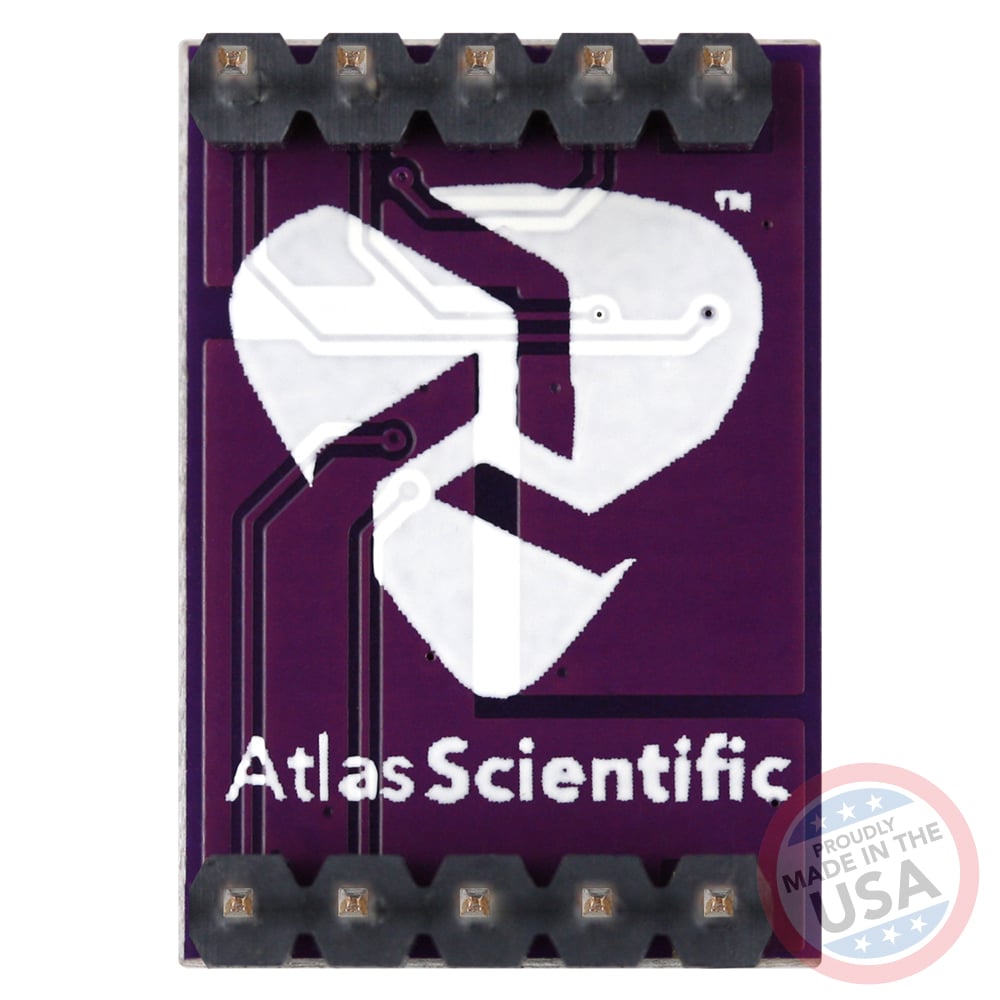

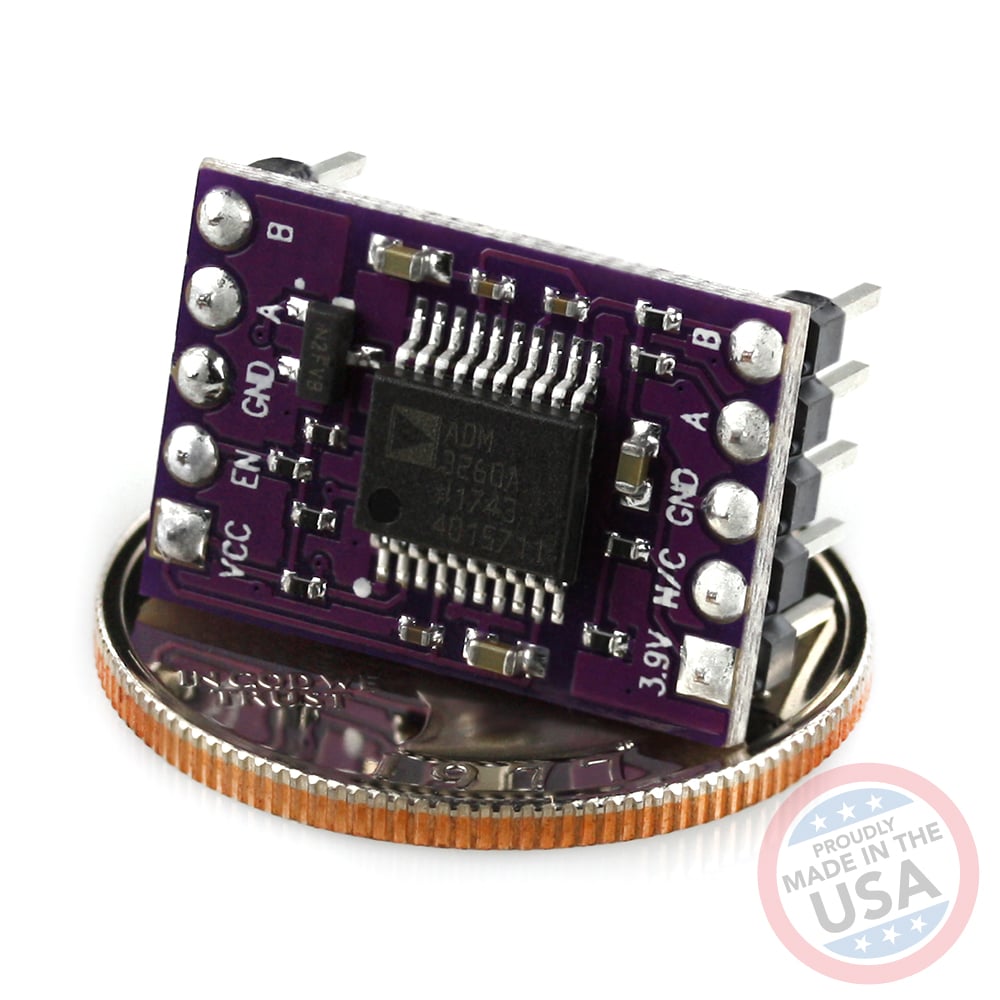

Basic EZO™ Inline Voltage Isolator

Name: Basic EZO™ Inline Voltage Isolator
Brand: Atlas Scientific
SKU: BE-IVI
Price: 10982.50 HUF
Availability: InStock

10.983 HUF

Sale Sold out

Taxes included.

The Atlas Scientific Basic EZO™ Inline Voltage Isolator ensures reliable and accurate sensor measurements by effectively isolating voltage signals, providing enhanced stability and protection for sensitive instrumentation in various applications.

Specifications

Data input	UART, I2C and SMBus
Max data rate	1 MHz
Output voltage	3.9V ± .07
Voltage input	3.0V − 5.0V
Power saving	EN pin
Current consumption	5V – 15 mA 3.3V – 20 mA
Circuit dimensions	13.97mm x 20.16mm (0.55″ x 0.79″)
Weight	1.76 grams
