EZO-RGB™ Embedded Color Sensor – Stainless Steel Body
EZO-RGB™ Embedded Color Sensor – Stainless Steel Body
Regular price
44.310 HUF
Regular price
Sale price
44.310 HUF
Taxes included.
Your phone has a high-def camera capable of seeing everything. So, how hard could it be to accurately observe a single color and express the readings in true 8-Bit RGB or CIE? Well, as it turns out, it’s a lot harder than you may think. Although there are many different types of RGB sensors out there, the Atlas Scientific EZO-RGB-S sensor is ready to go. With a weather-resistant stainless steel housing that gives multiple mounting options, on-board illuminator LEDs and an easy to use data protocol, your machine will be detecting colors like its 1979.

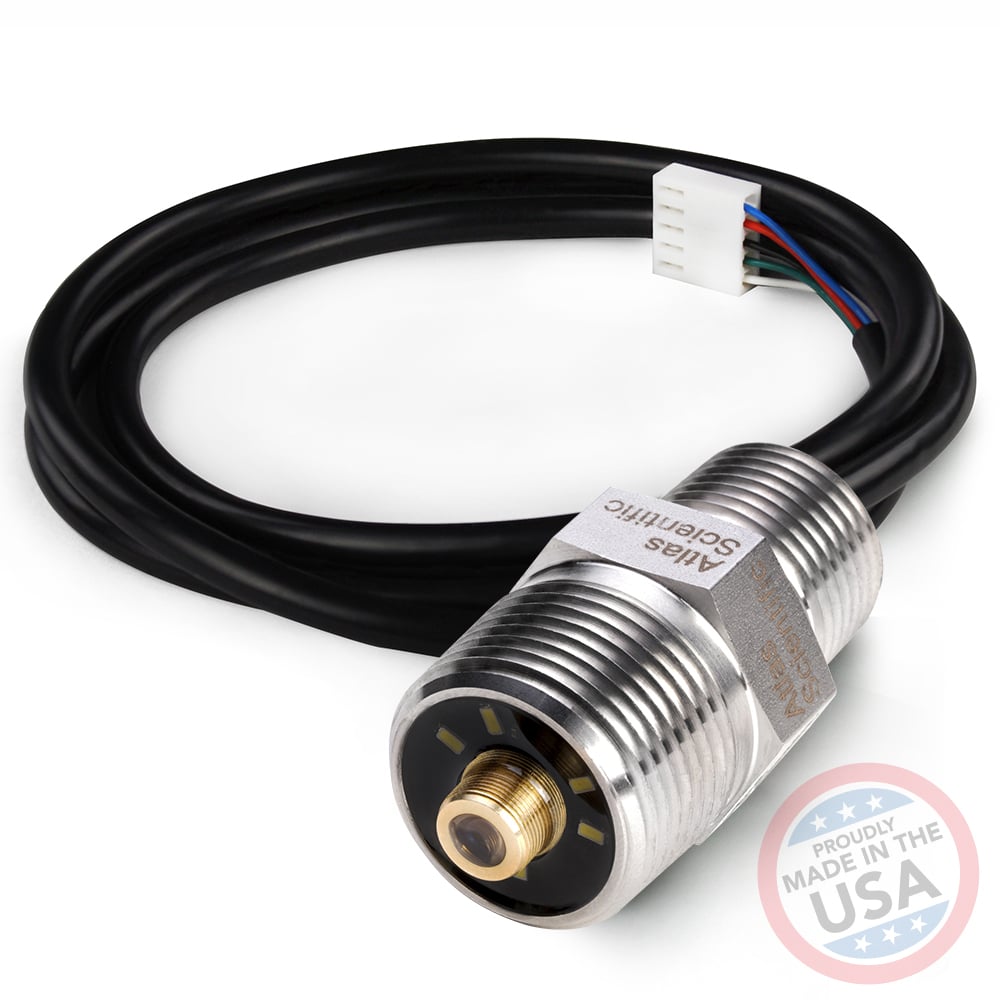

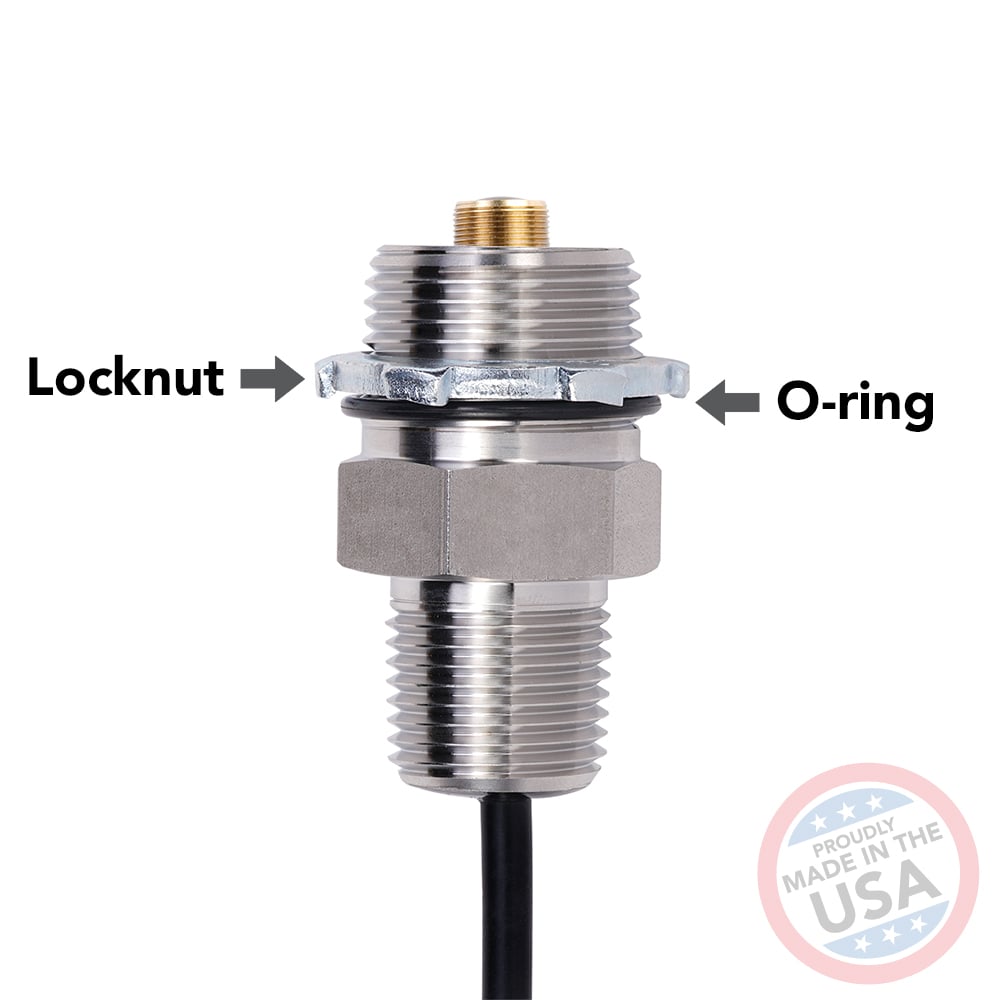

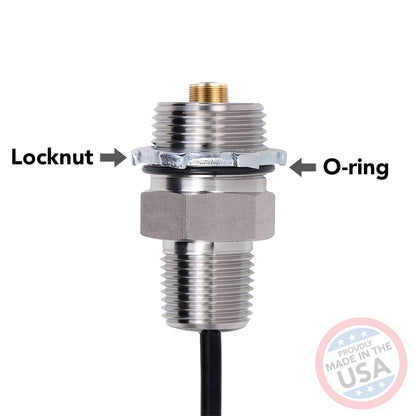

The EZO-RGB-S™ comes with: One embedded color sensor with stainless steel body, one data cable with 5 pin male header, and one Locknut & O-ring.
Specifications
| Reads | RGB (24-bit) |
| CIE (xyY) | |
| LUX (0 – 65535) | |

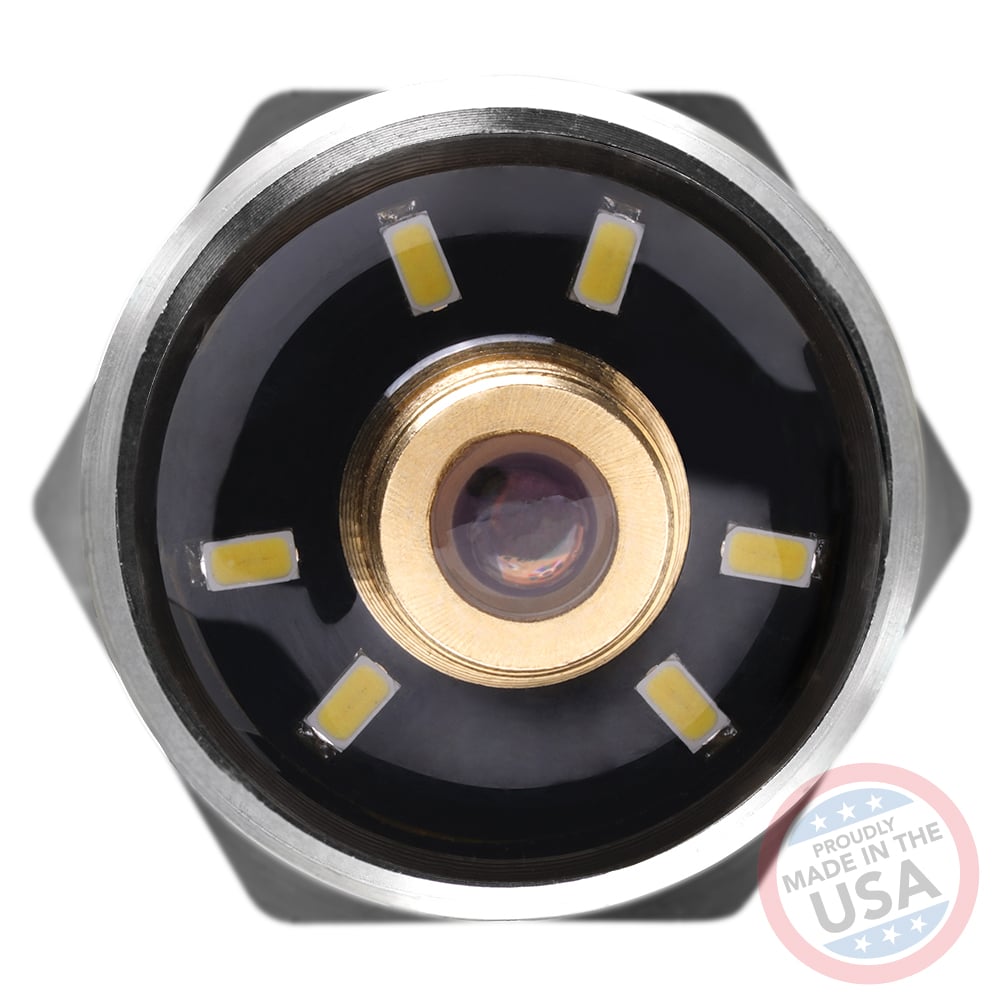

| Features | Onboard LEDs |
| Programmable color matching | |
| Body material | 316 Stainless Steel |

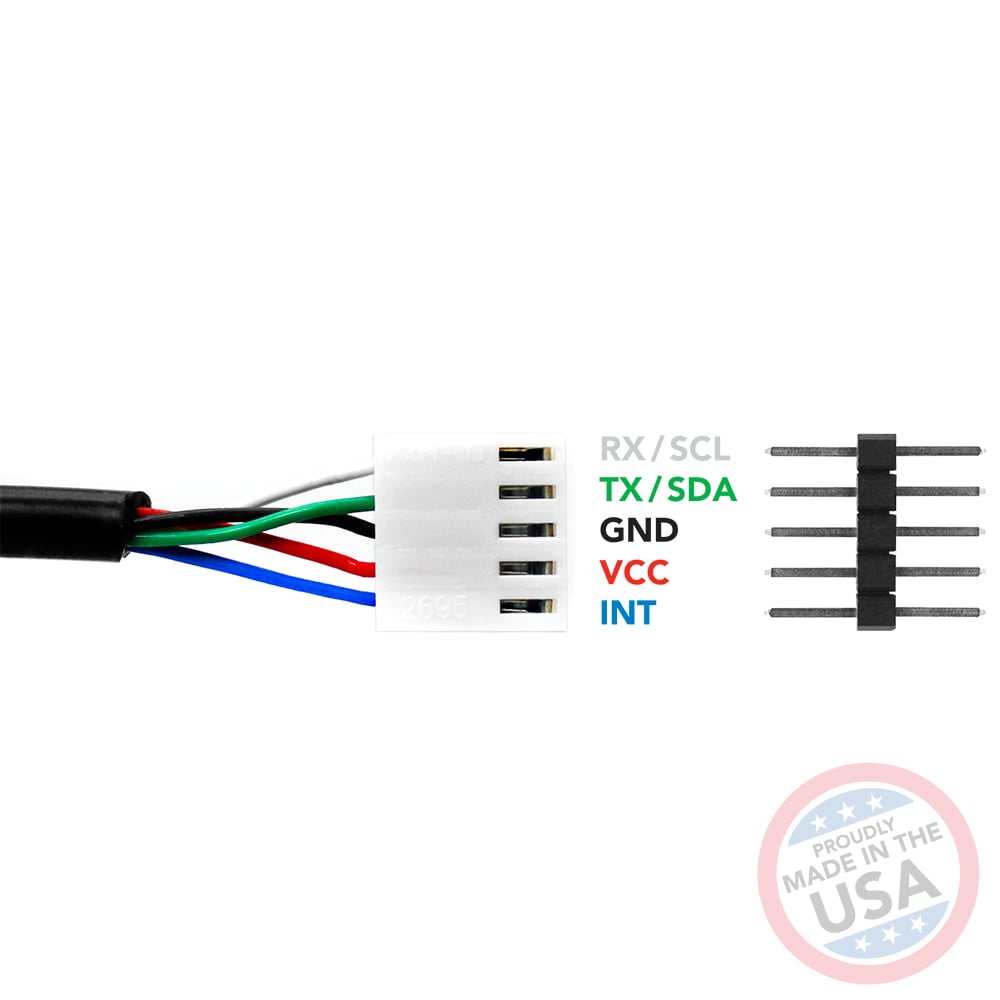

| Connector | 5 lead data cable |
| Response time | 400ms |
| Sensing area | 15° half angle |
| Cable length | 1 meter |
| Water resistant/dust proof | IP67 (waterproof up to 1 meter) |
| Data protocol | UART & I2C |
| Default I2C address | 112 (0x70) |
| Data format | ASCII |
| Operating voltage | 3.3V − 5V |
Documents & downloads
- EZO-RGB™ Stainless Steel Body Datasheet
- Female connector information
- RoHS Certificate
- CE Certificate
- CSA Certificate
- FREE Software - AtlasDesktop Monitoring Software
- AtlasDesktop Monitoring Software Users Guide
- How to view RGB output on your computer
- Arduino Uno Sample Code
- Arduino Mega / Giga Sample Code
- Arduino I2C Sample Code
- Raspberry Pi Sample Code (I2C)
- EZO UART Library
- EZO I2C Library
- EZO-RGB™ 3D model (*step)
