(Previously known as the Gravity Dissolved Oxygen Meter )
Although Dissolved Oxygen is a complex measurement, it doesn’t always have to be. Some applications only need to know the presence of oxygen in percent saturation. If you are looking for basic measurements that you can rely on, The Atlas Scientific Surveyor™ Dissolved Oxygen Meter is your solution. This device outputs an analog voltage from 10mV – 1,000mV and gives D.O. readings in percent saturation only.
Specifications
Reads
Dissolved Oxygen
Range
0 − 700% saturation
Accuracy
+/– 2%
Response time
Continuous analog output
Supported probes
Any galvanic probe
Calibration
Optional
Temp. compensation
No (unnecessary)
Data protocol
Analog ~0 − ~3,000mV
Surveyor™ dimensions
56.2mm x 32mm (2.2″ x 1.2″)
Weight:
15 grams

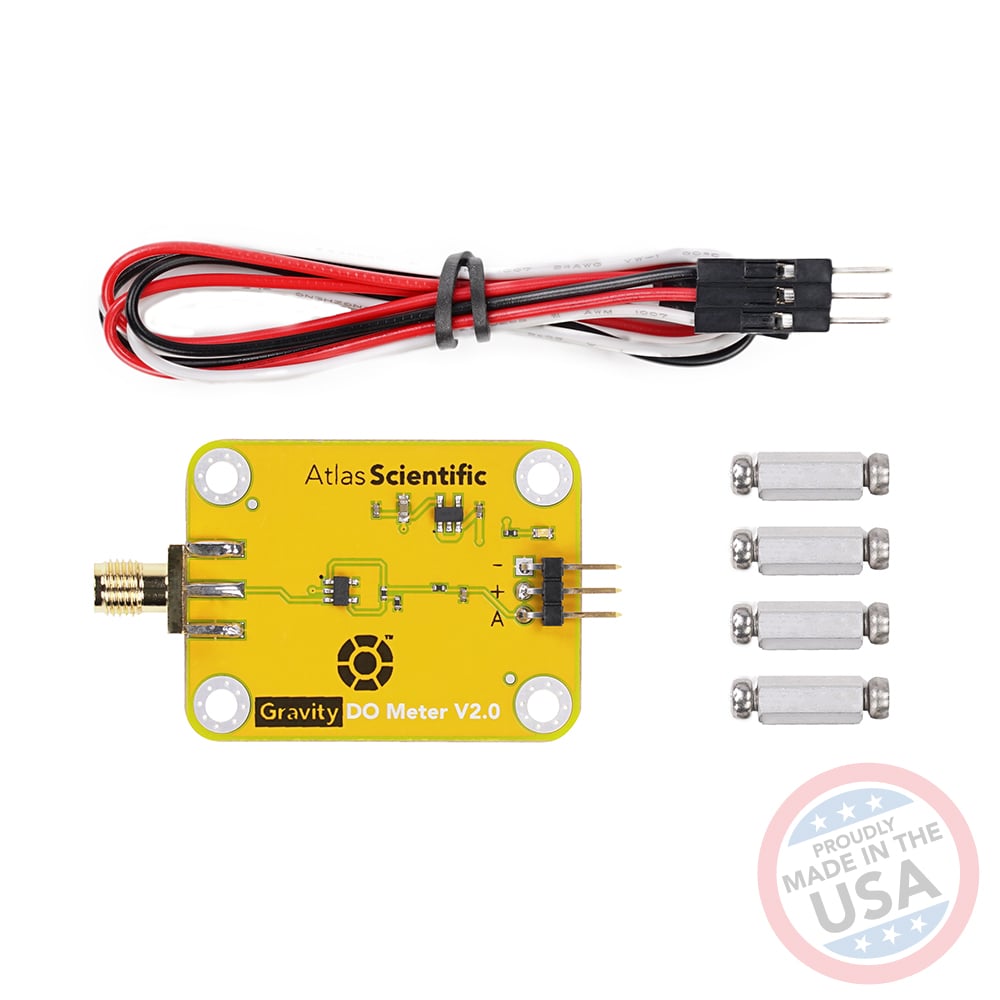

The Surveyor™ Analog Dissolved Oxygen Meter comes with (4) standoffs and screws, (1) 3 pin jumper cable
