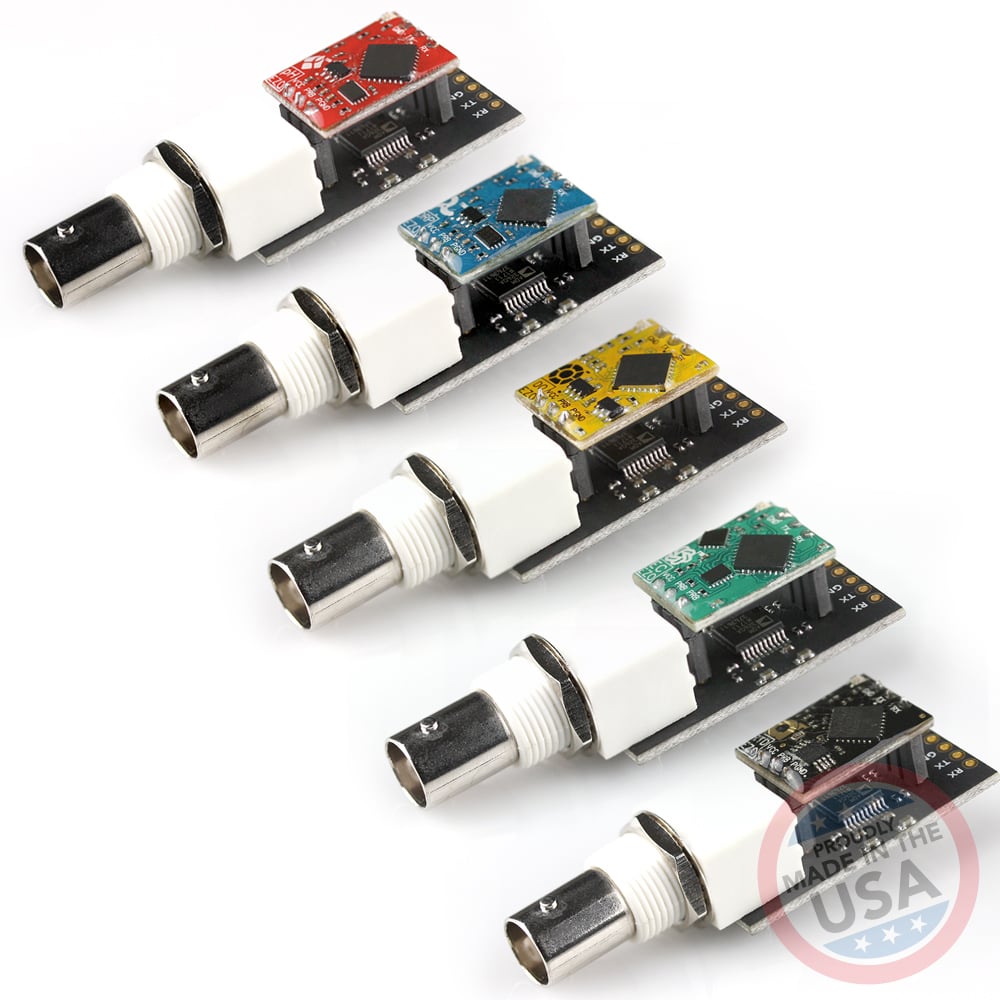

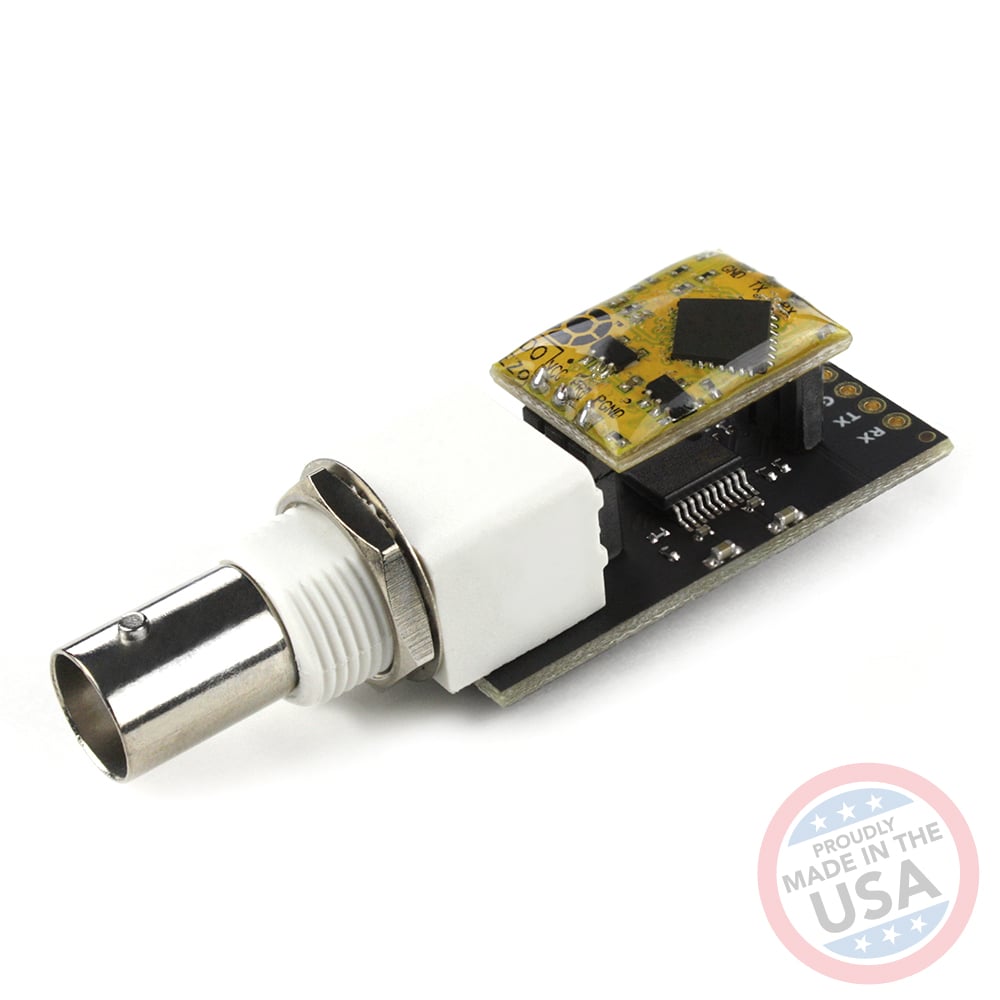

The Electrically isolated EZO™ carrier board is an easy way to connect an Atlas Scientific EZO™ circuit to your CPU, eliminating the need for a bread board and an external isolator.
Specifications

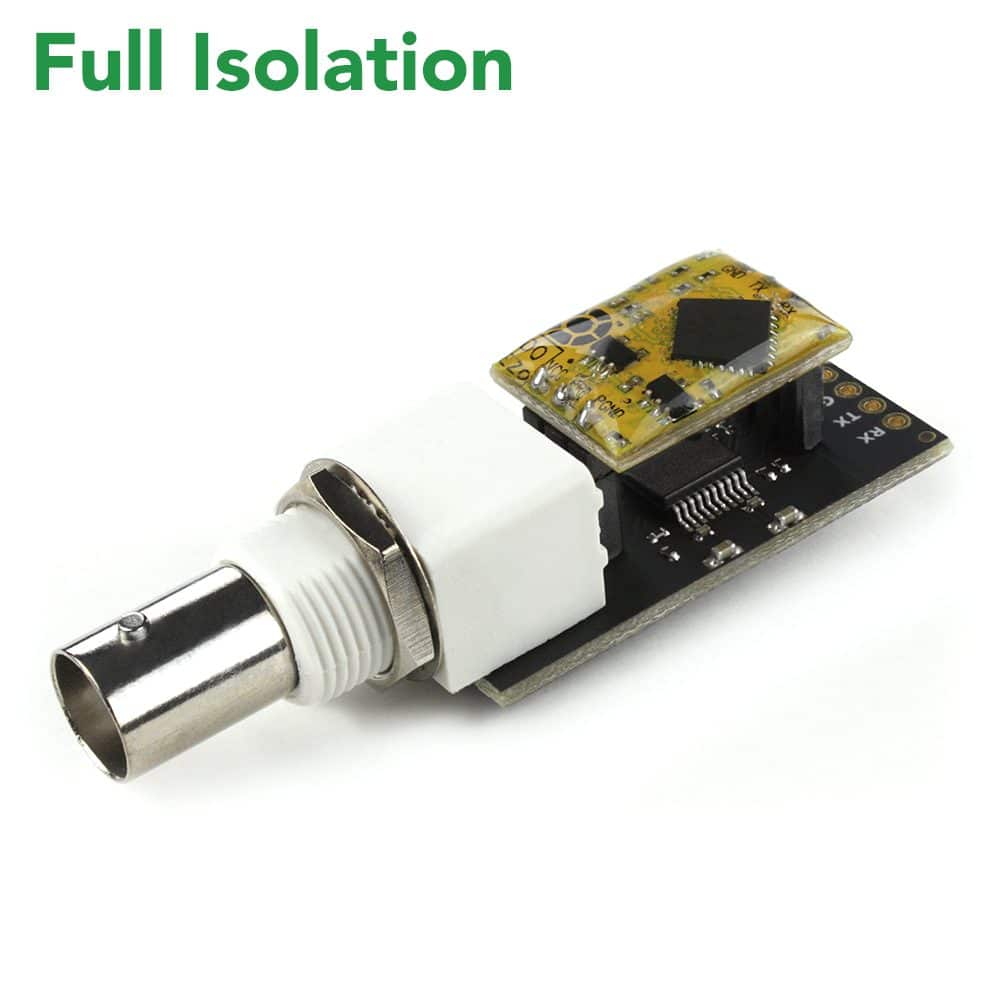

• Fully Isolated power and data
• Assembled and factory tested
• Works with UART or I2C protocols

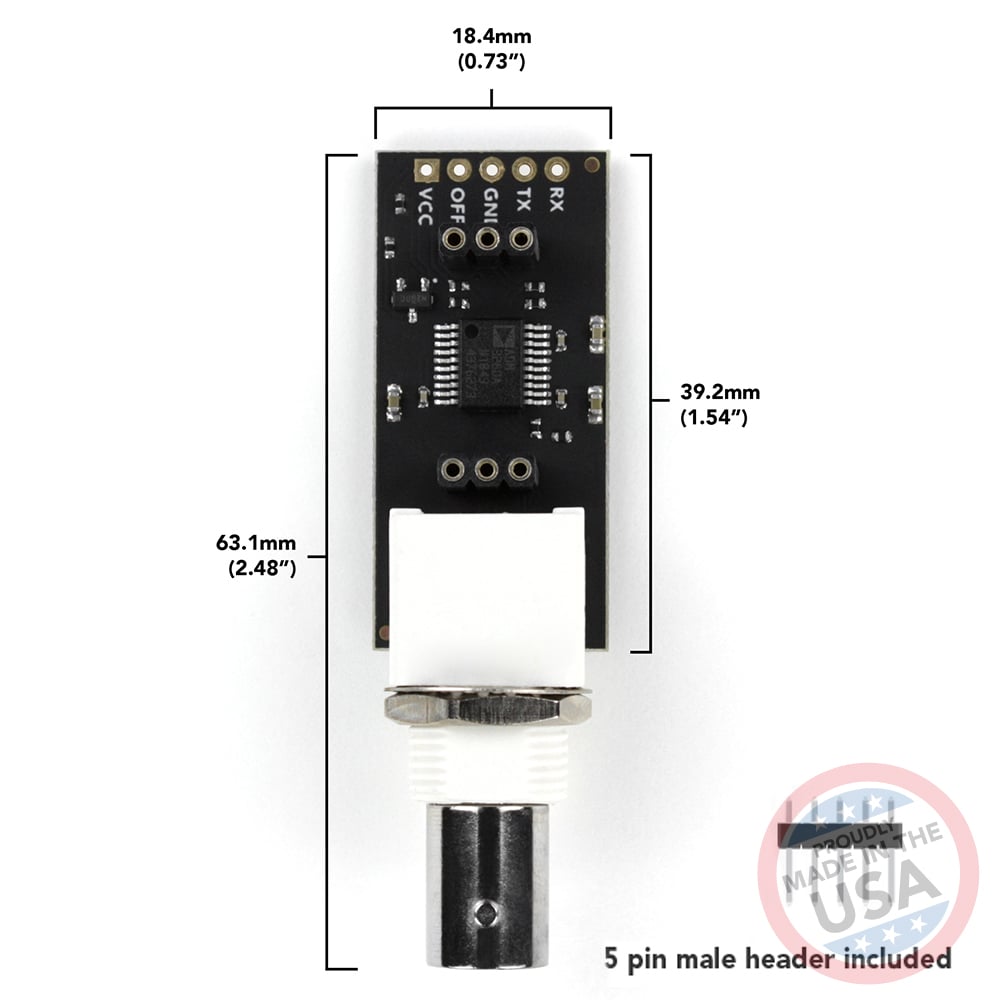

• Dimensions: 18.4mm x 63.1mm (0.73″ x 2.48″)
• Operating voltage 3.3V – 5V
• Weight: 11.6g
• Comes with a five pin male header
• The Electrically Isolated EZO™ Carrier Board does not come with EZO™ class devices.
