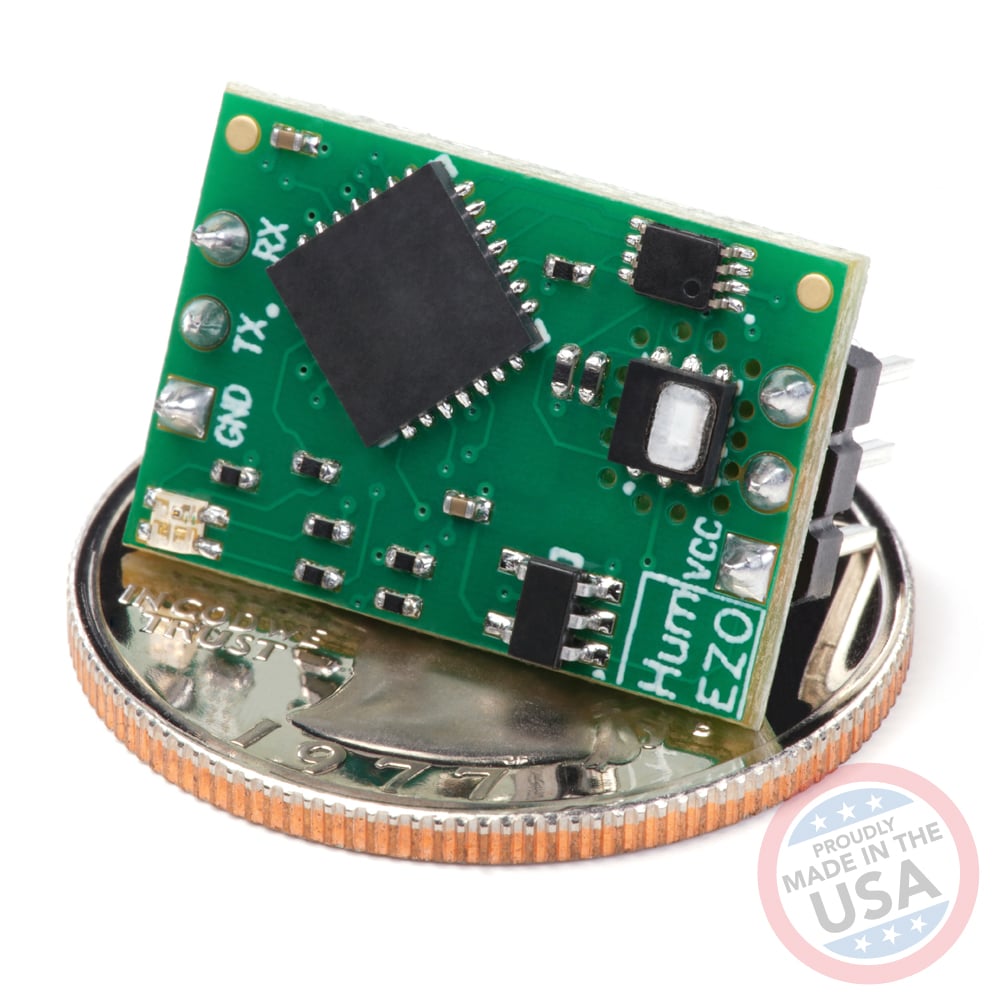

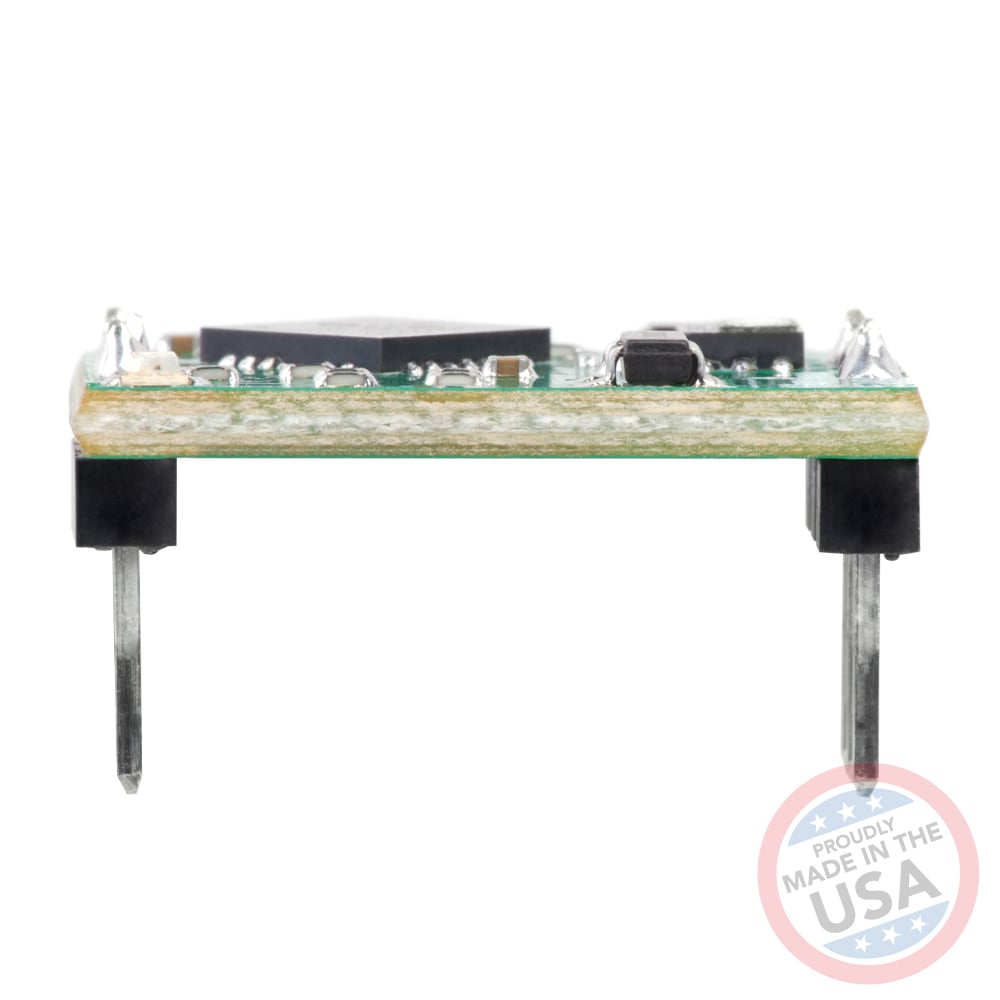

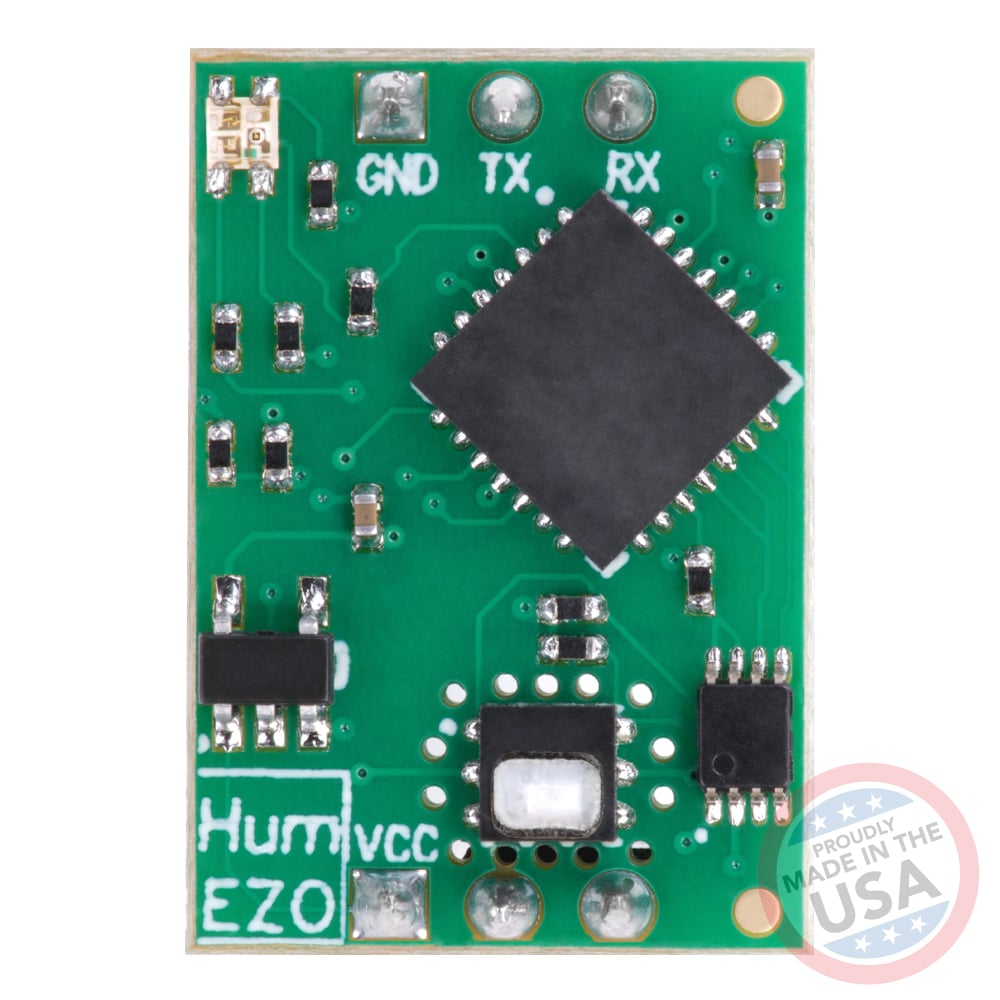

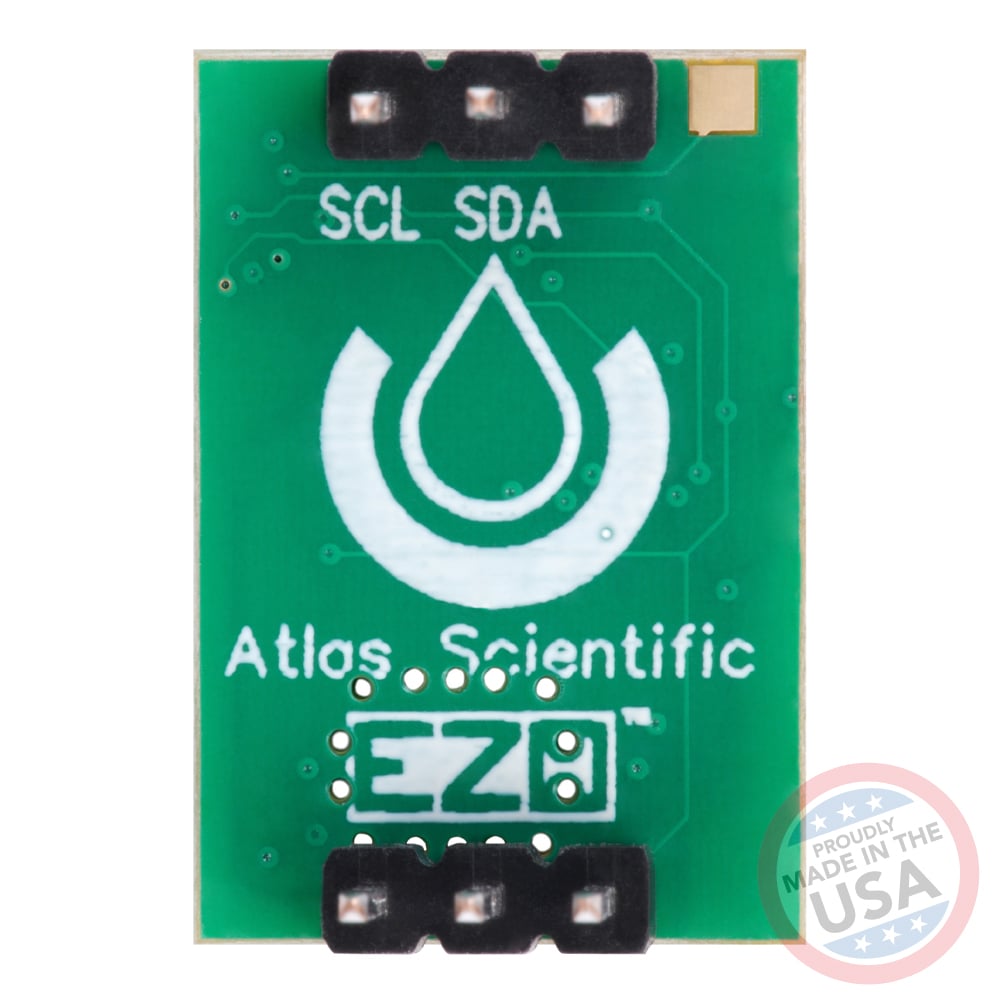

EZO™ Humidity Circuit
EZO™ Humidity Circuit
Regular price
12.938 HUF
Regular price
Sale price
12.938 HUF
Taxes included.

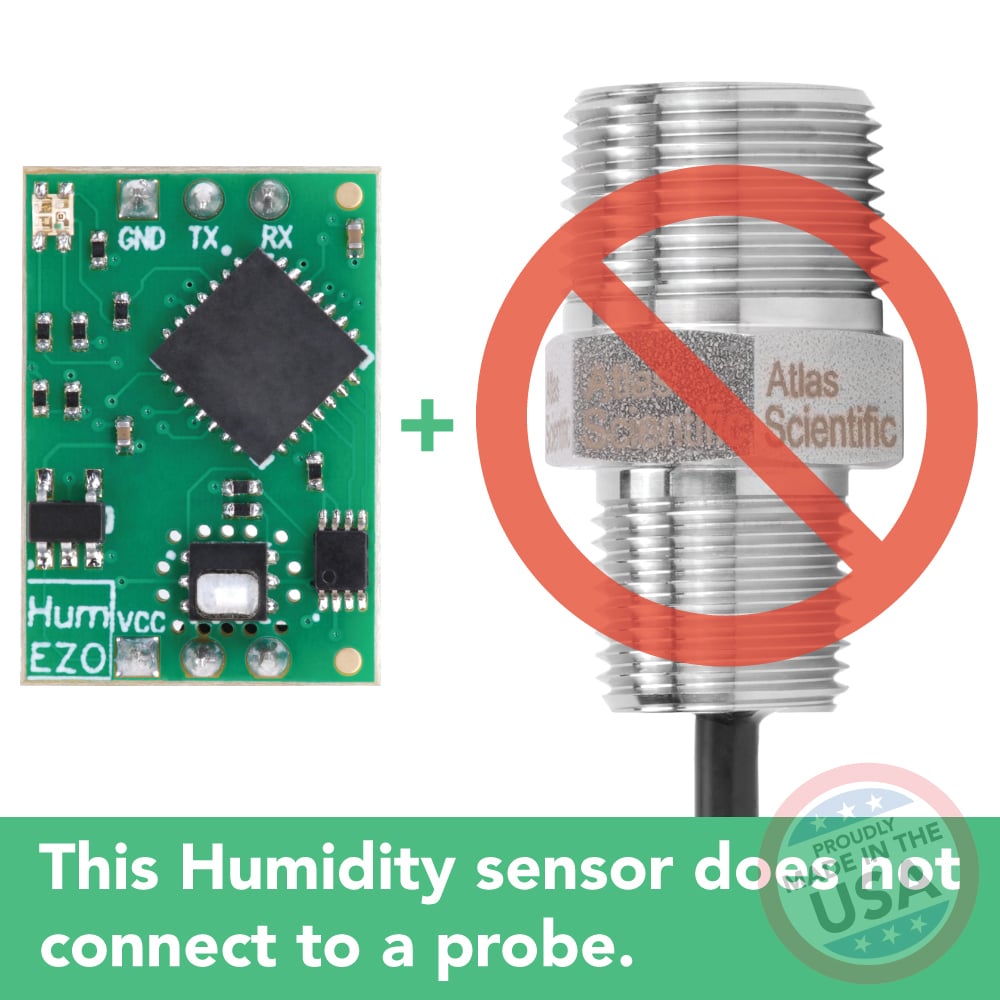

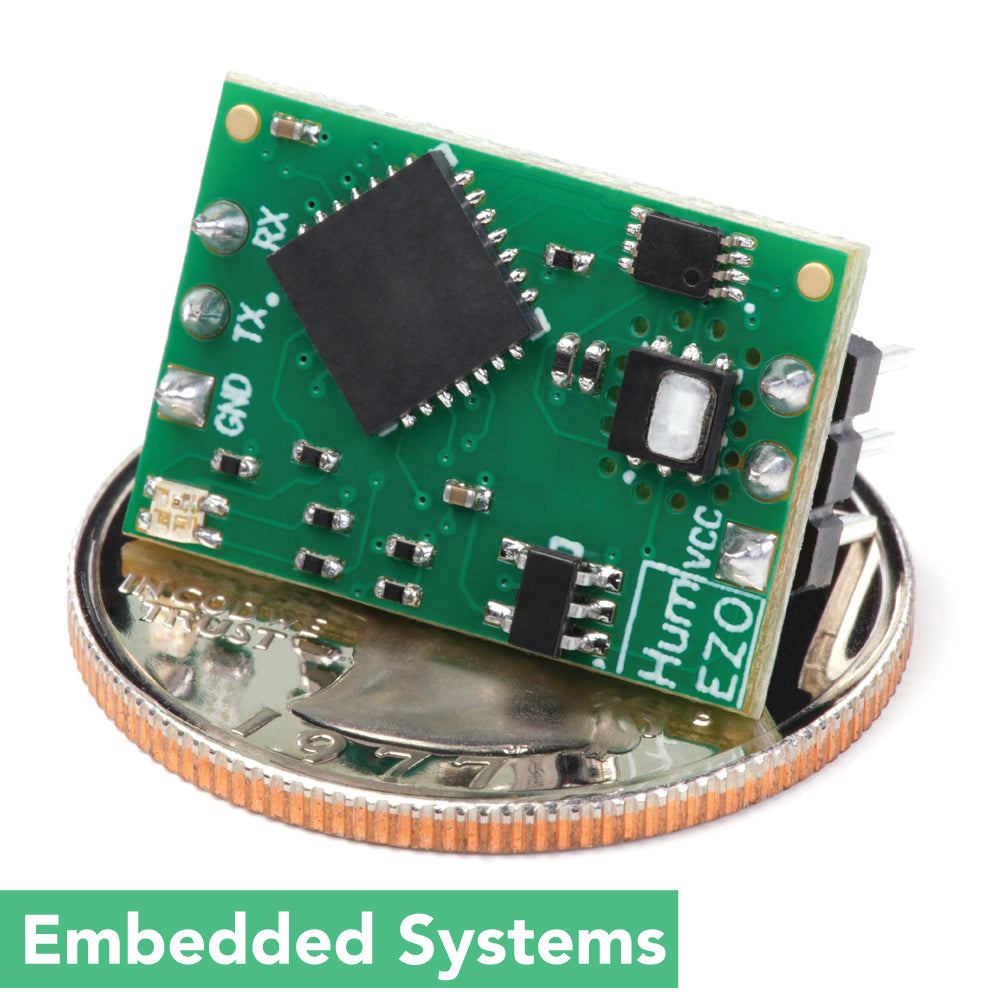

The EZO Humidity Circuit is designed to be embedded with your electronics, reading the humidity of your enclosure. While there is no reason it can’t read the humidity of a room, it lacks the housing needed to protect the electronics. The EZO Humidity circuit gives the same readings as our EZO-HUM Probe. There is no difference in the readings or accuracy, only the design.
Specifications
| Reads | Relative humidity (RH) |
| Dew point | |
| Air temperature | |
| Range | 0 – 100% RH |
| Calibration | Factory calibrated |
| Accuracy | +/- 2% of reading from 5-95% RH |
| Response time | 1 reading per second (UART mode) |
| 1 reading per 300 milliseconds (I2C mode) | |
| Data protocol | UART & I2C |
| Default I2C address | 111 (0x6F) |
| Data format | ASCII |
| Operating voltage | 3.3V − 5V |
Documents & downloads
- EZO-HUM™ Circuit Datasheet
- RoHS Certificate
- CE Certificate
- CSA Certificate
- FREE Software - AtlasDesktop Monitoring Software
- AtlasDesktop Monitoring Software Users Guide
- Arduino Uno Sample Code
- Arduino Mega / Giga Sample Code
- Arduino I2C Sample Code
- Raspberry Pi Sample Code (I2C)
- EZO UART Library
- EZO I2C Library
