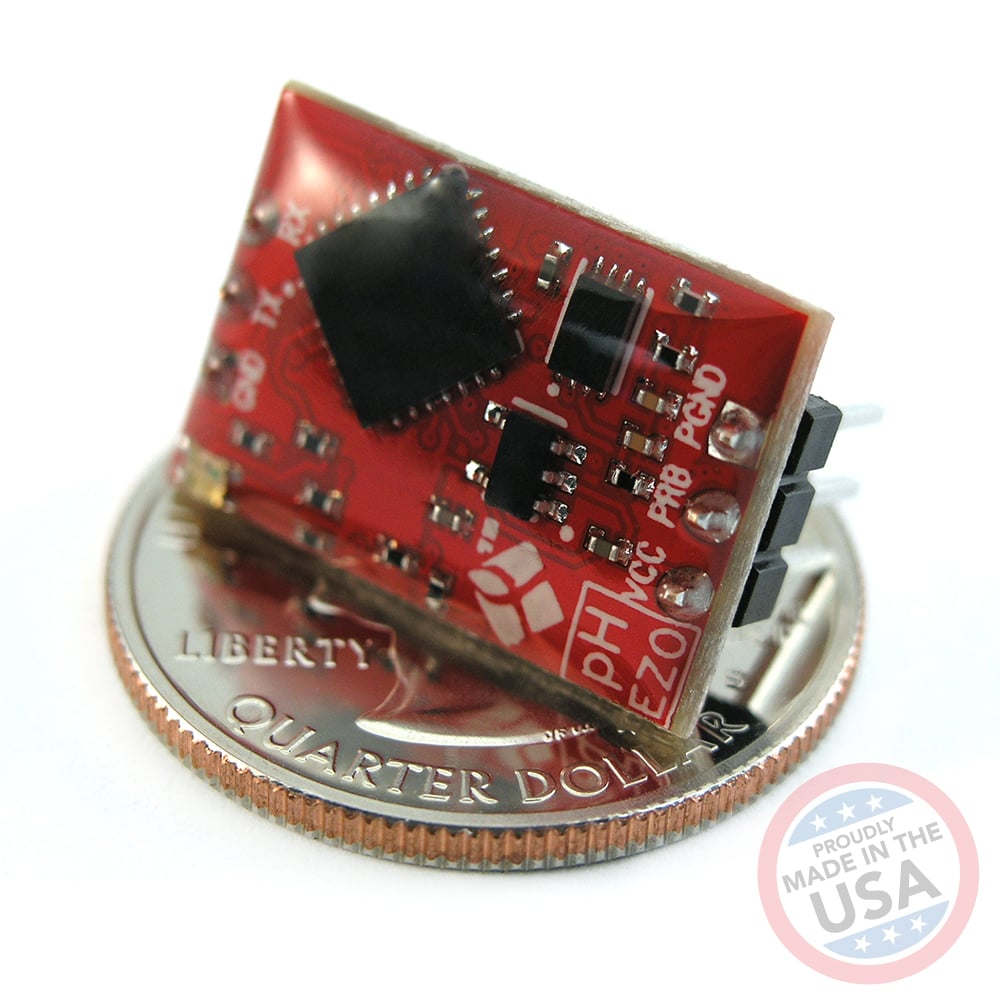

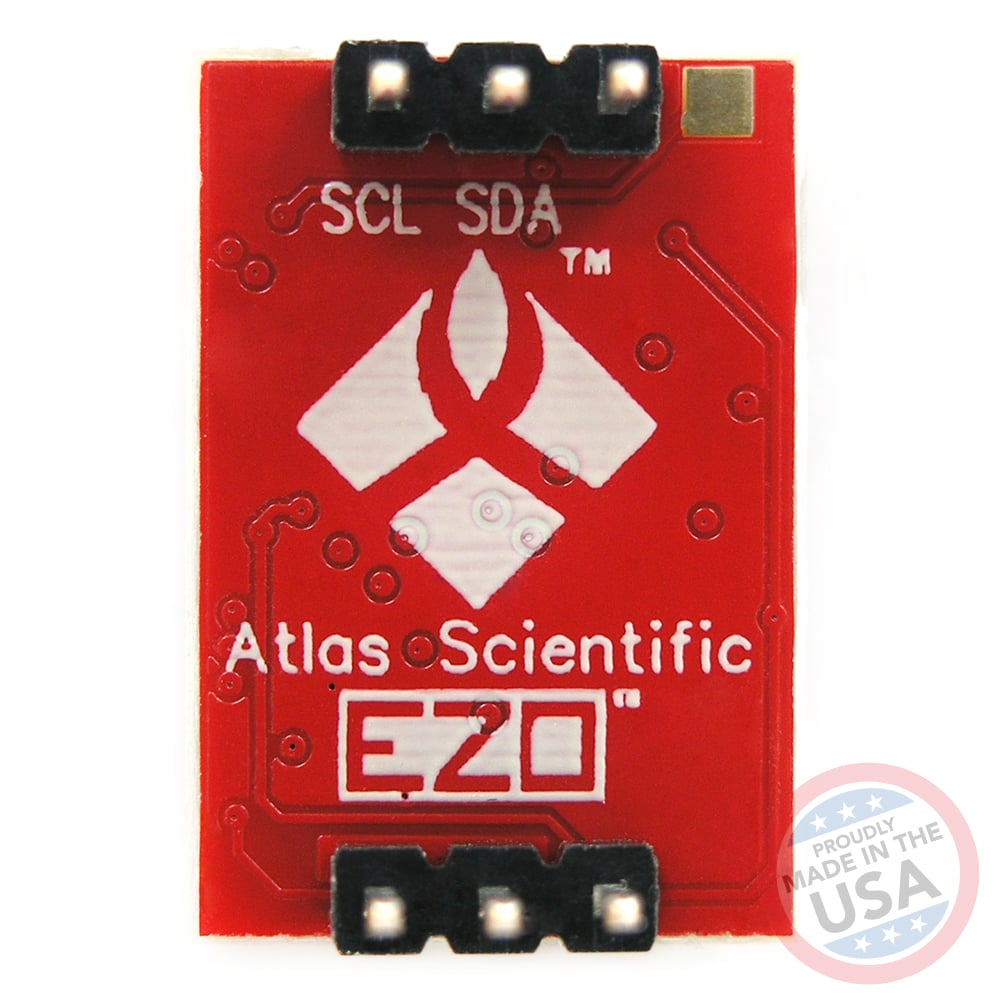

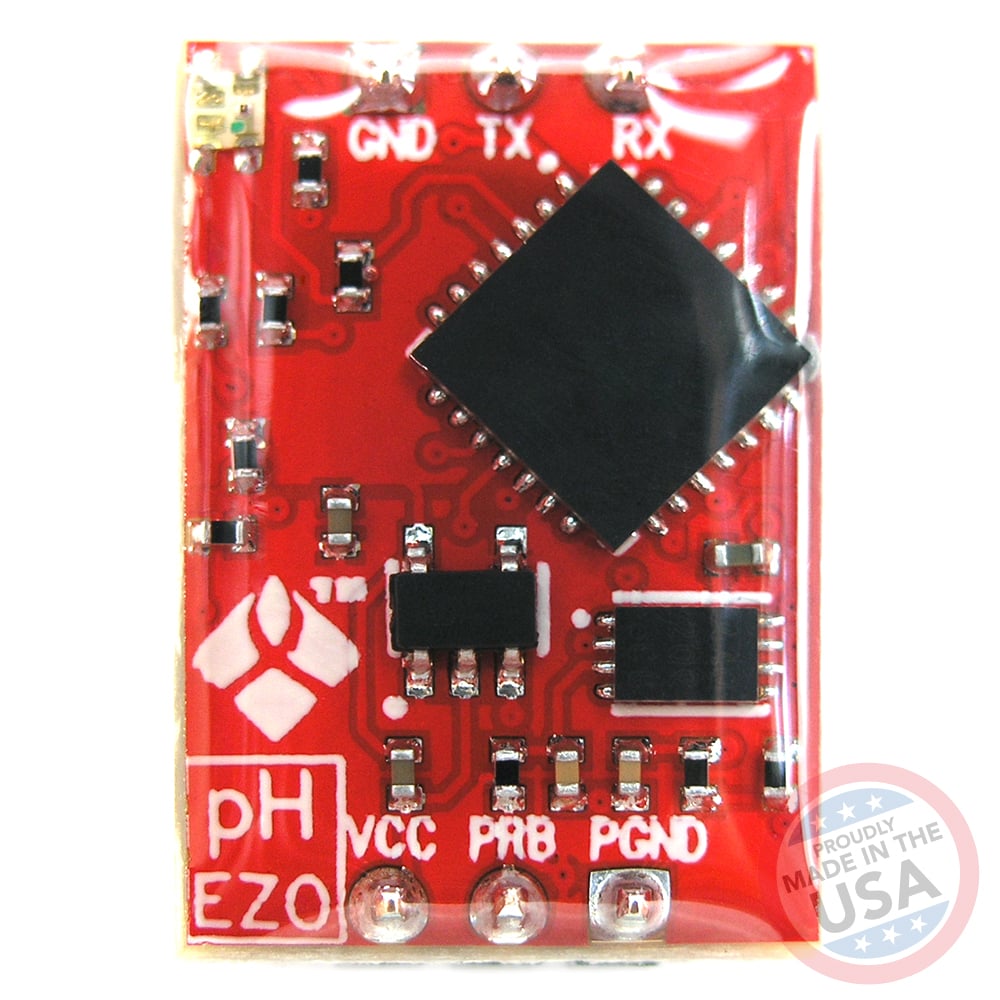

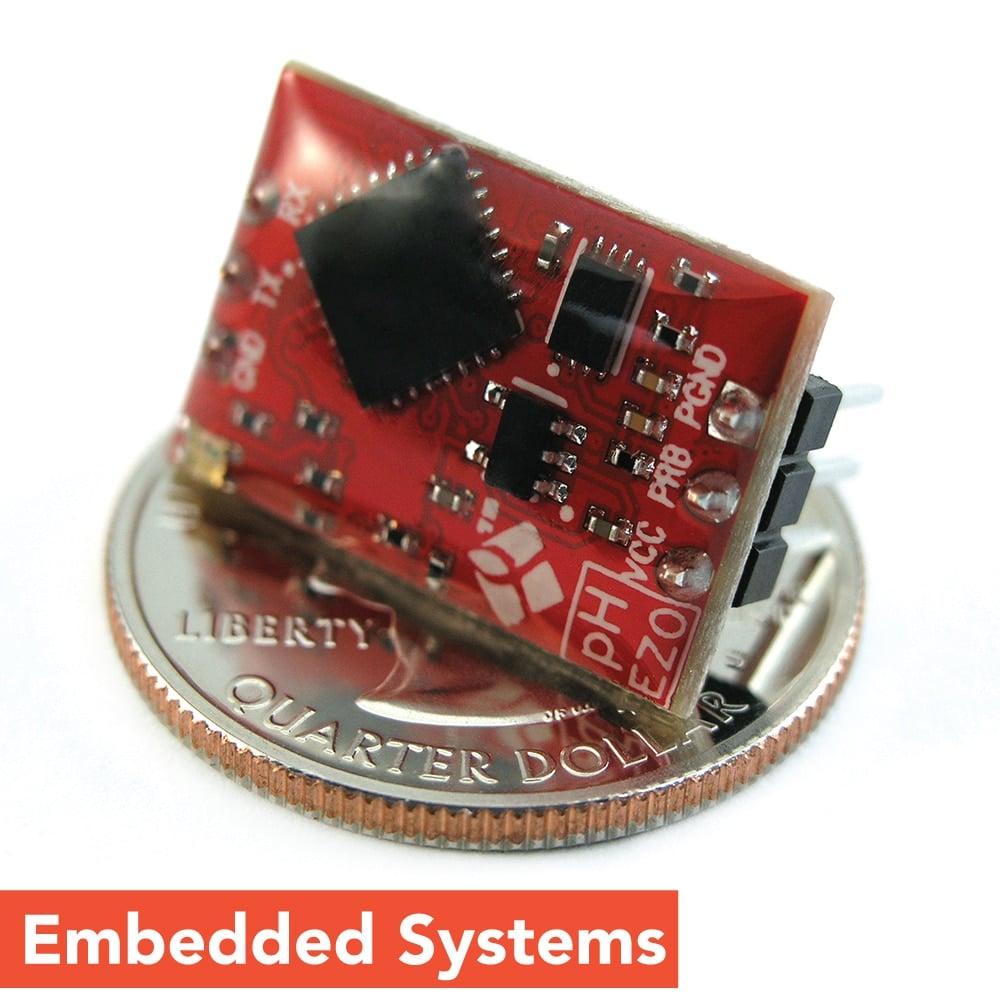

EZO™ pH Circuit

EZO™ pH Circuit

Regular price 18.032 HUF
Regular price Sale price 18.032 HUF
Sale Sold out
Taxes included.

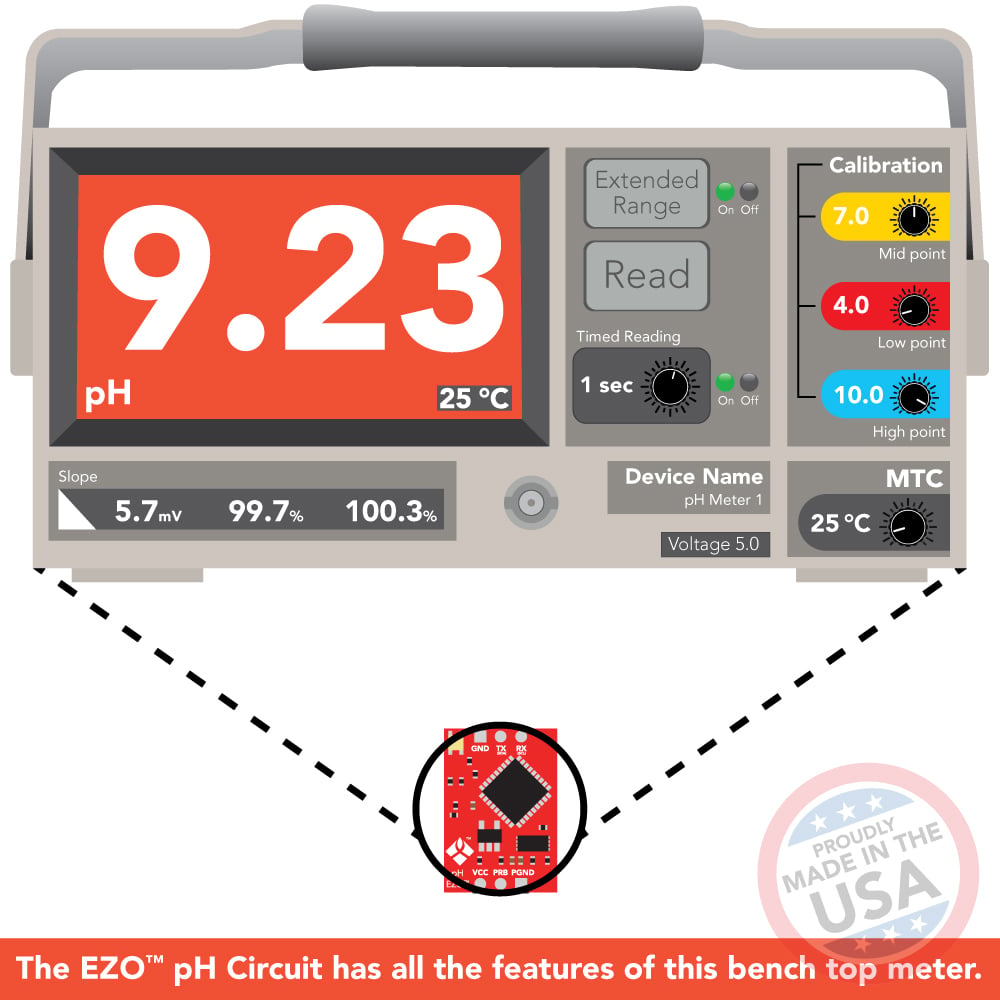

Although it is a common measurement, accurately reading pH is very difficult. Atlas Scientific’s EZO-pH circuit gives engineers the ability to read pH with the same accuracy and capabilities that were traditionally only found in expensive bench-top meters.

With an easy to use data protocol, simple command structure, and an easy to read datasheet engineers of any skill level will be able to add high accuracy pH readings to their next project quickly.

Specifications

Reads pH
Range .001 − 14.000
Resolution .001
Accuracy +/– 0.002
Response time 1 reading per sec

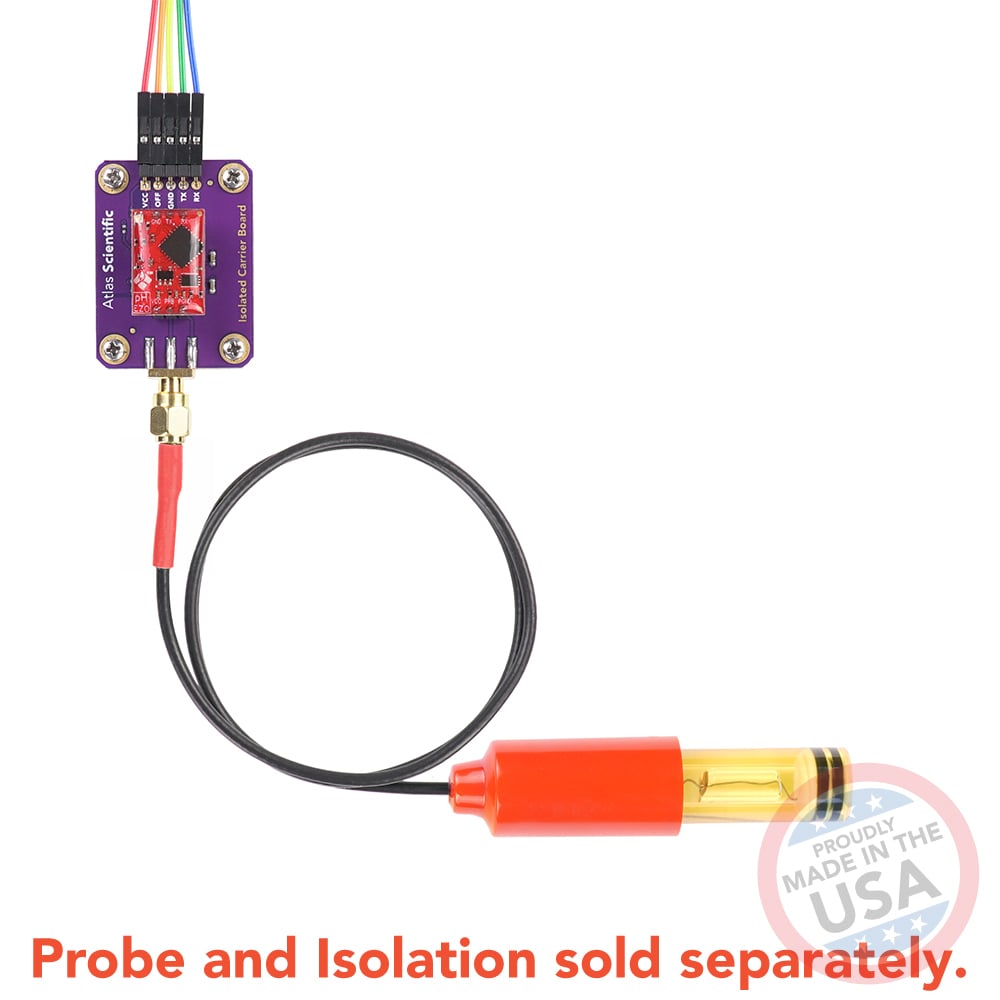

Supported probes Any type & brand
Calibration 1, 2, 3 point
Temp. compensation Yes
International standard ISO 10523 compliant (determination of pH)
Data protocol UART & I2C
Default I2C address 99 (0x63)
Operating voltage 3.3V − 5V
Data format ASCII
Circuit dimensions 13.97mm x 20.16mm (0.55″ x 0.79″)
Weight 1.76 grams

Documents & downloads
