SGL-PMP-BX™

SGL-PMP-BX™

50.980 HUF
50.980 HUF
Sale Sold out
Taxes included.

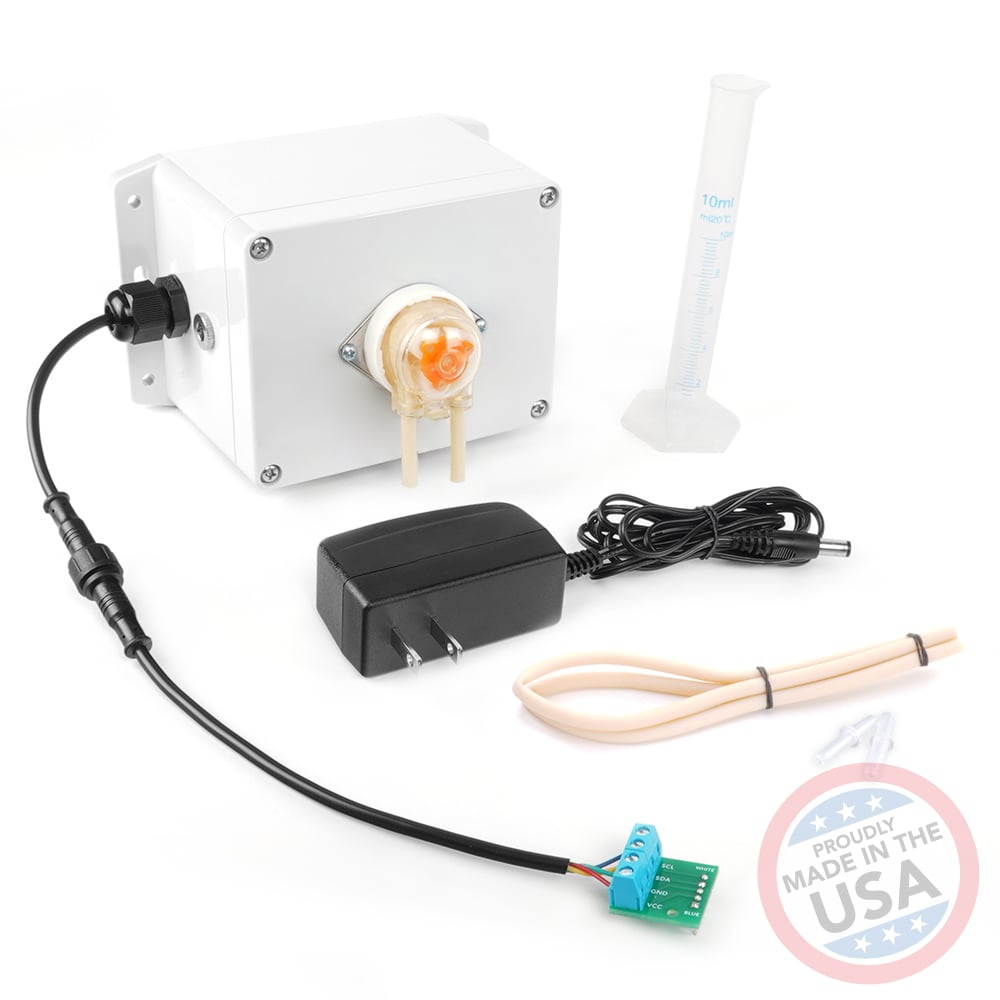

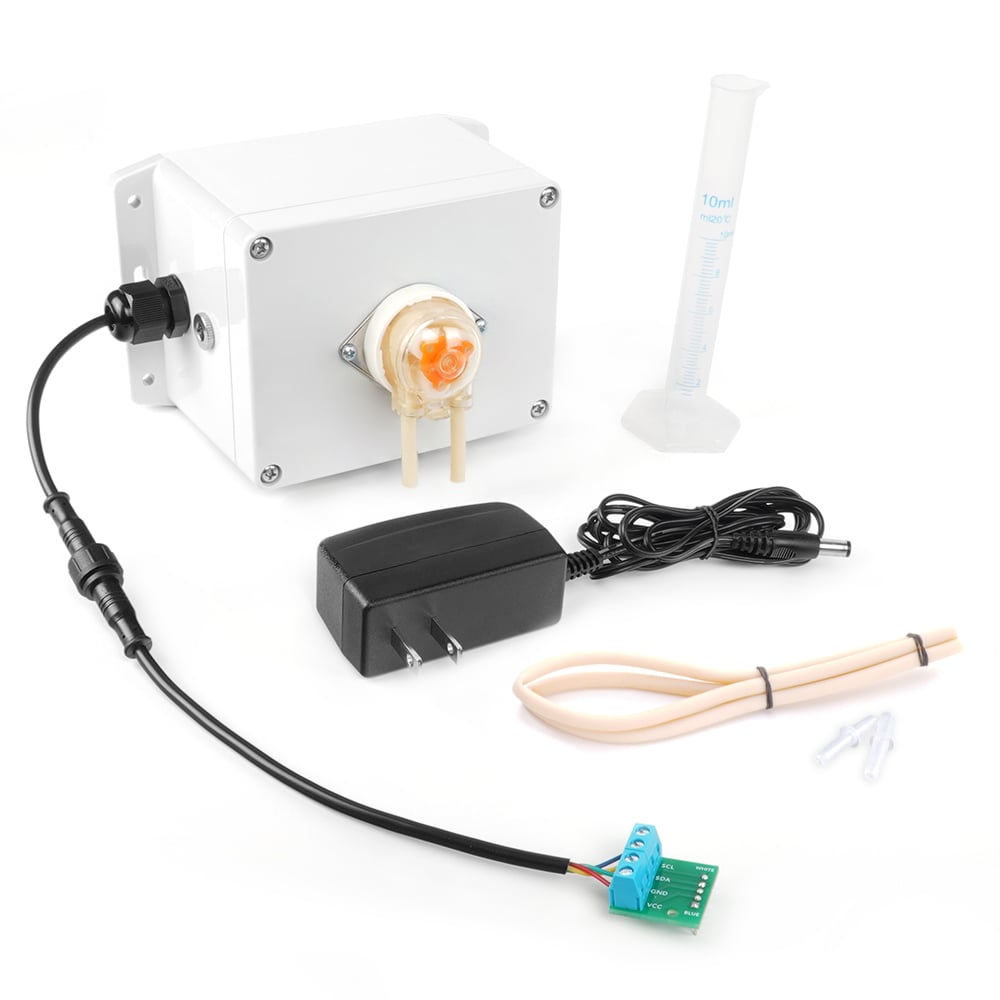

The SGL-PMP-BX™ comes with everything found in our original EZO pump kit and more!

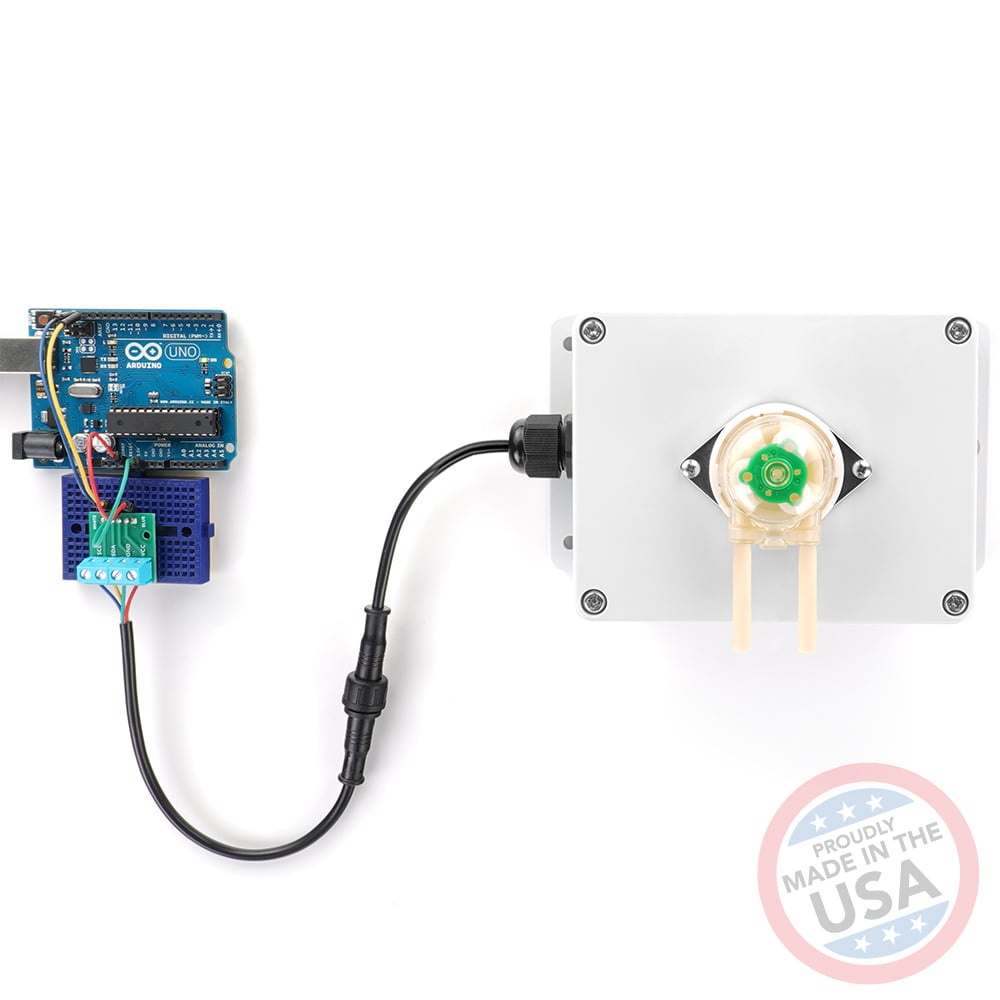

Having the pump already mounted into an enclosure saves a lot of time. The power connector and data cable with breakout board make integration onto your device FAST!

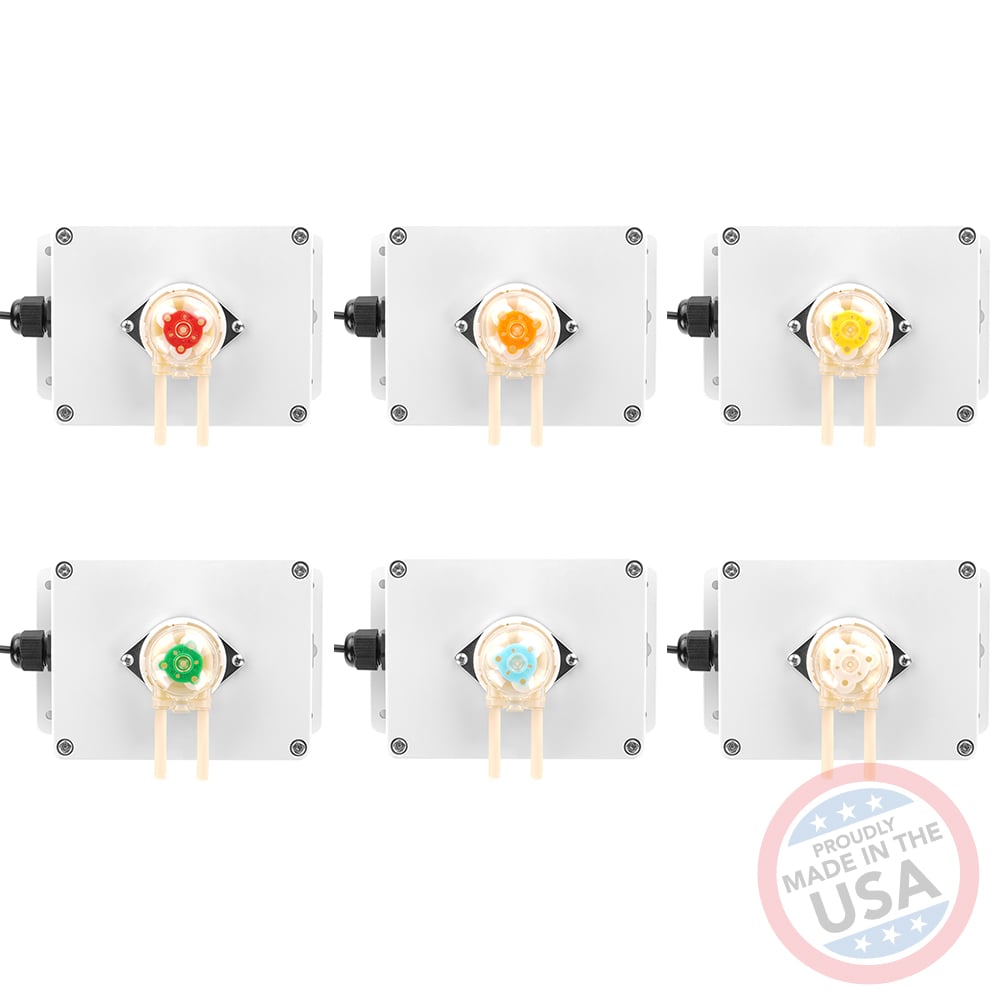

*Pump colors are subject to availability. If unavailable, the closest color will be substituted.*

*This device comes defaulted to I2C mode* *You can switch it back to UART mode if desired*

Specifications

Enclosure:

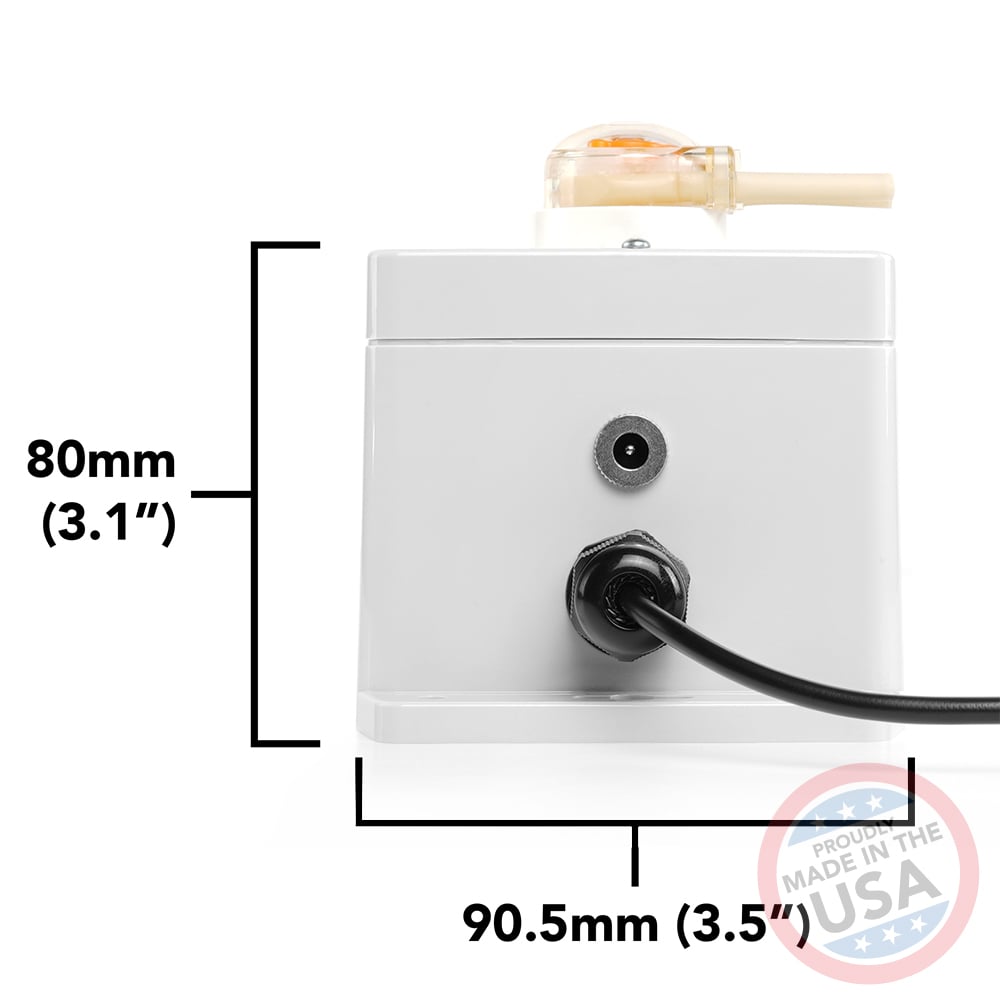

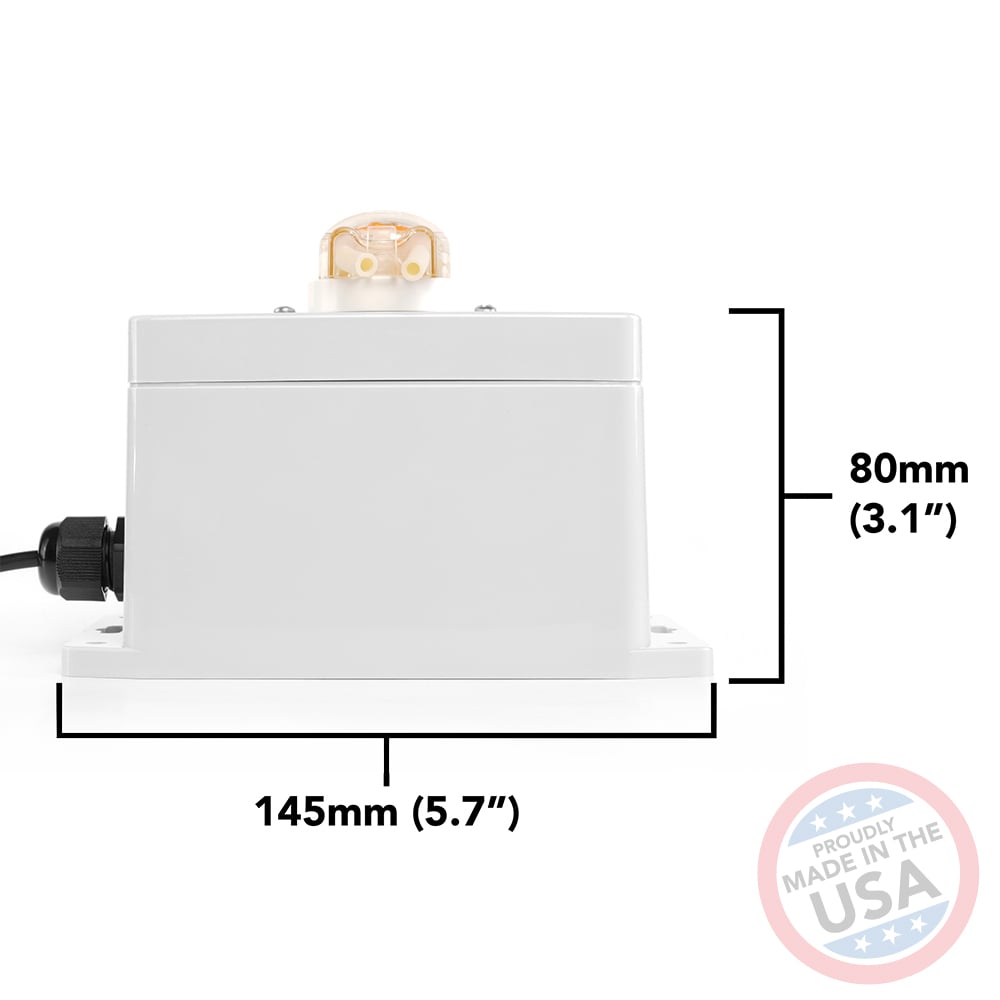

Size Metric: L = 145mm x W = 90.5mm x H = 80mm
Inch: L = 5.7″ x W = 3.5″ x H = 3.1″
Enclosure protection IP-64
Enclosure material Body: Polycarbonate plastic
Screws: Stainless steel
Pump: *This pump is set to I2C mode by defualt*
*It can be change to UART mode.*
*See data sheet for instructions*
Flow rate 0.5ml to 105ml/mins
Accuracy +/- 1%
Modes of operation Continuous dispensing Volume dispensing Dose over time mode Constant flow rate Dispense at startup
Connector 5 lead data cable
Calibration Single point
Supplied tubing 2 x 2 Feet
Tubing size Any 5mm O.D. tubing
Data protocol UART & I2C
Default I2C address 103 (0x67)
Operating voltage 3.3V – 5V (logic)
12V – 24V (motor)
Pump head 8.1 meters (26.5’)
Data format ASCII
Food safe Yes
