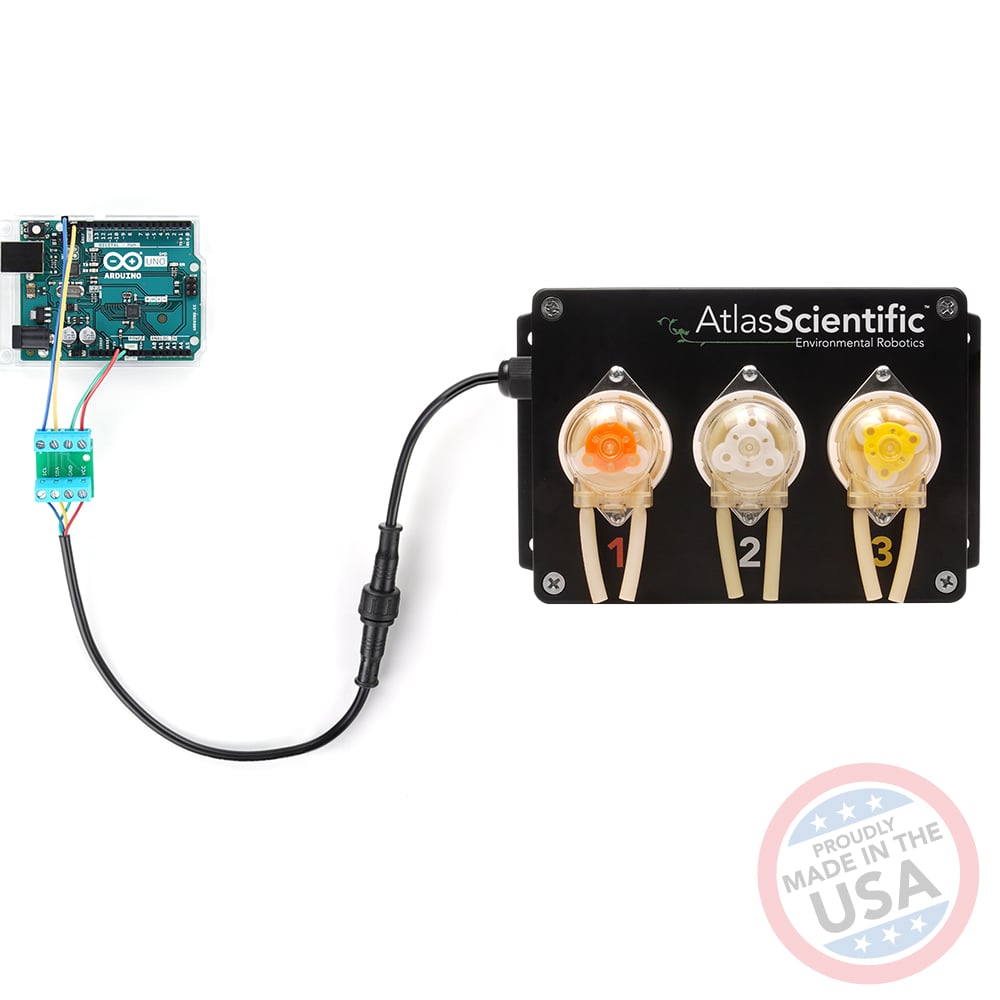

The TRI-PMP-BX™ system makes it easy to embed 3 peristaltic pumps into your machine. Each pump can be individually controlled using commands sent through the I2C bus. All Three pumps can run at the same time.

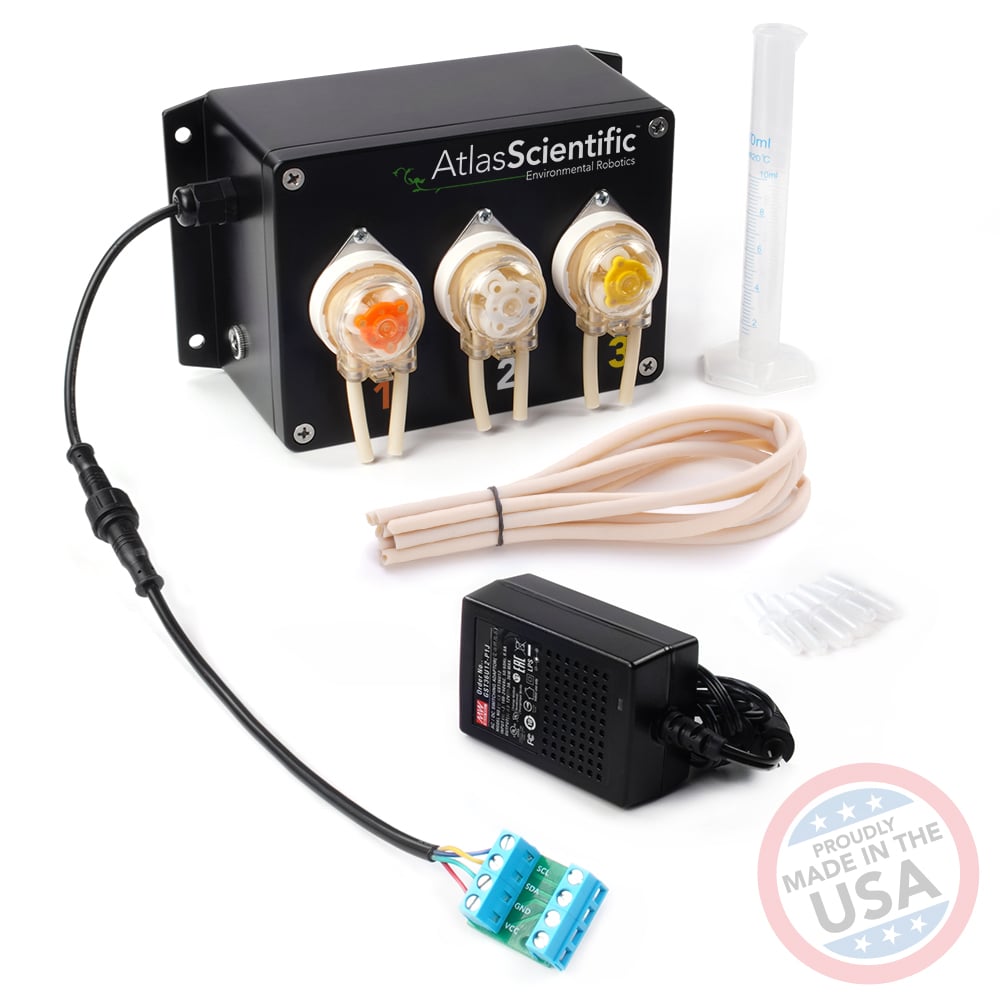

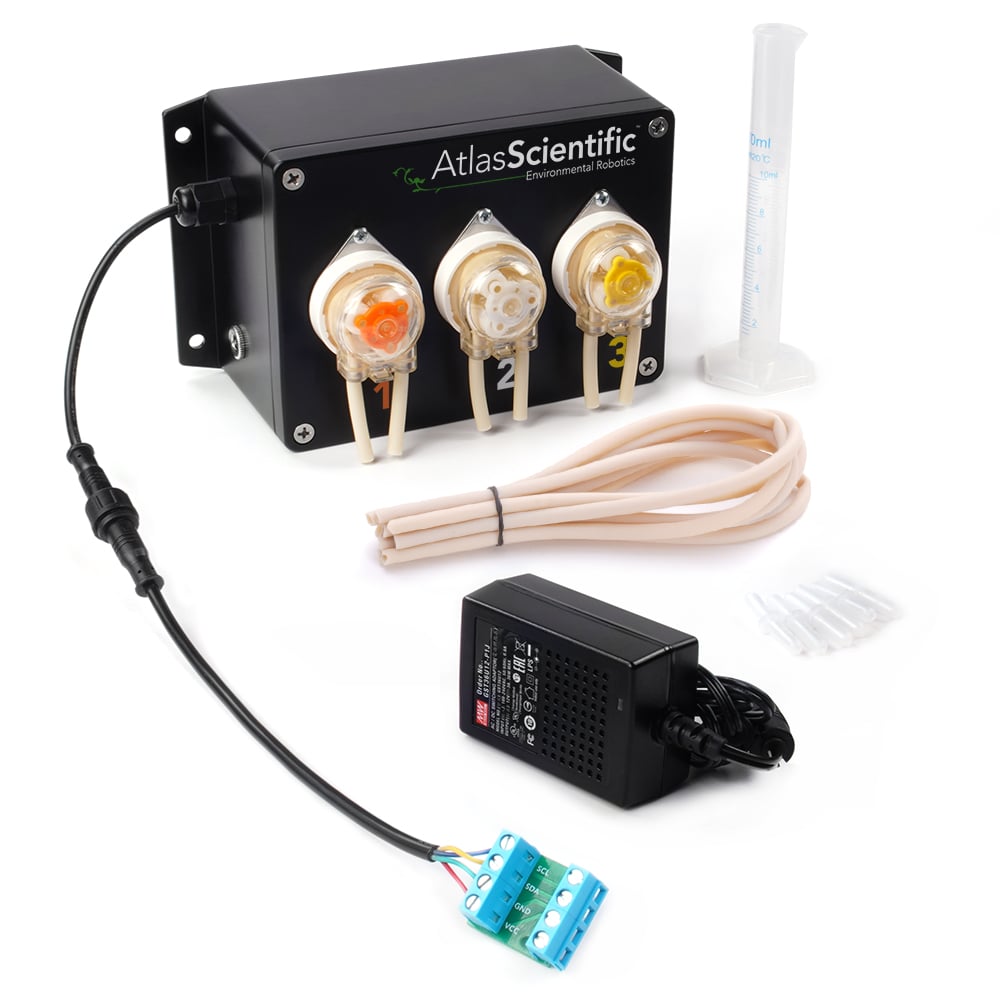

The TRI-PMP-BX™ system comes with: Three peristaltic pumps with controller boards; inside an aluminum enclosure, 6 inline tubing connectors, 6 x 2 feet long pump tubes, 24 volt power supply, and a 10ml graduated cylinder (for calibration).
Specifications
Enclosure:
Size
Metric: L = 190.5mm x W = 110.2mm x H = 76mm

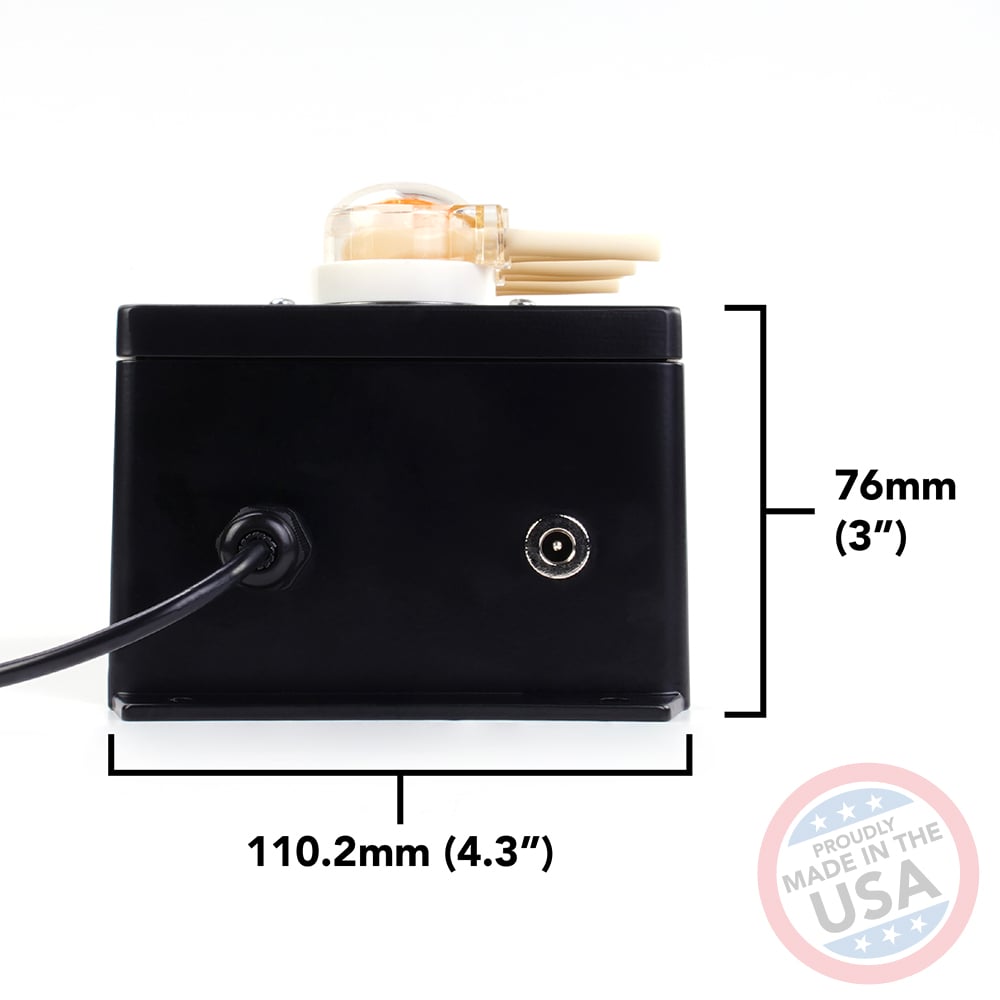

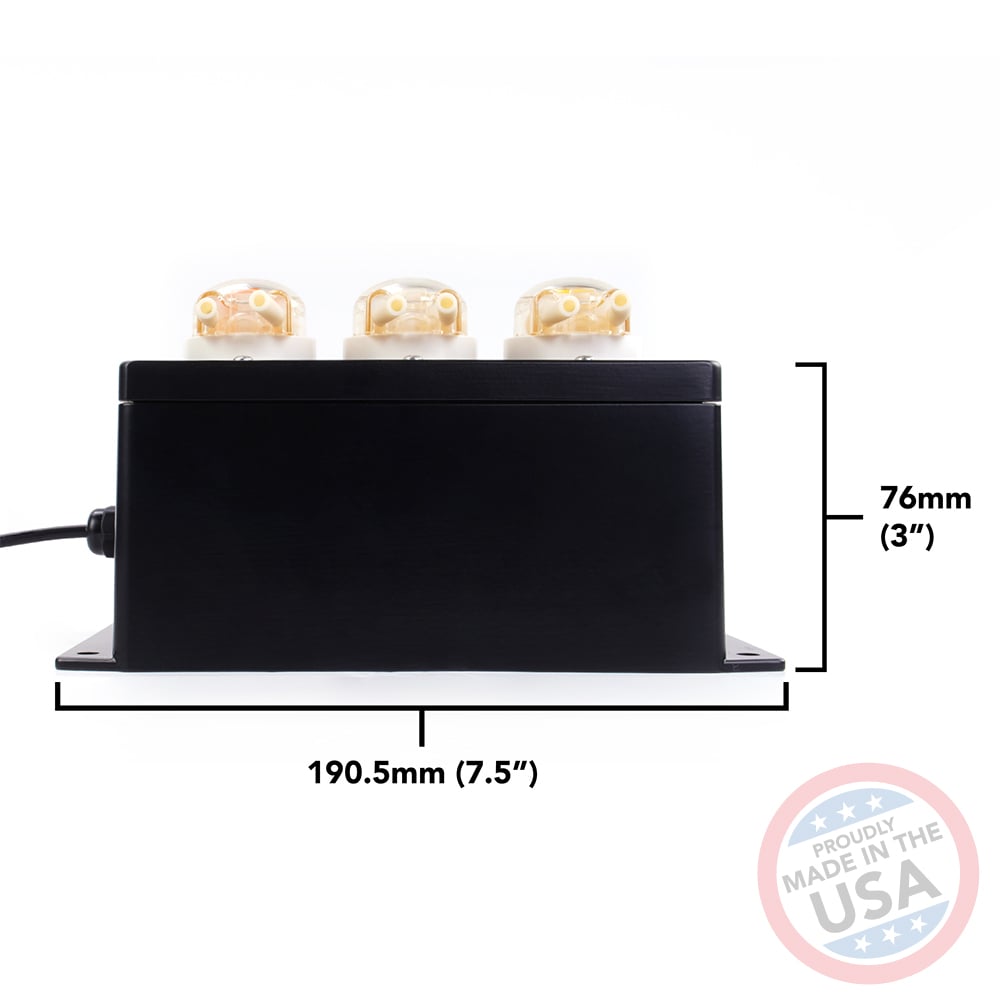

Inch: L = 7.5″ x W = 4.3″ x H = 3″
Enclosure protection
IP-64
Enclosure material
Body: Black powder-coated aluminum
Screws: Stainless steel
Pump:
Flow rate
0.5ml to 105ml/mins (per pump)
Accuracy
+/- 1%
Modes of operation
Continuous dispensing (per pump) Volume dispensing (per pump) Dose over time mode (per pump) Constant flow rate (per pump) Dispense at startup (per pump)
