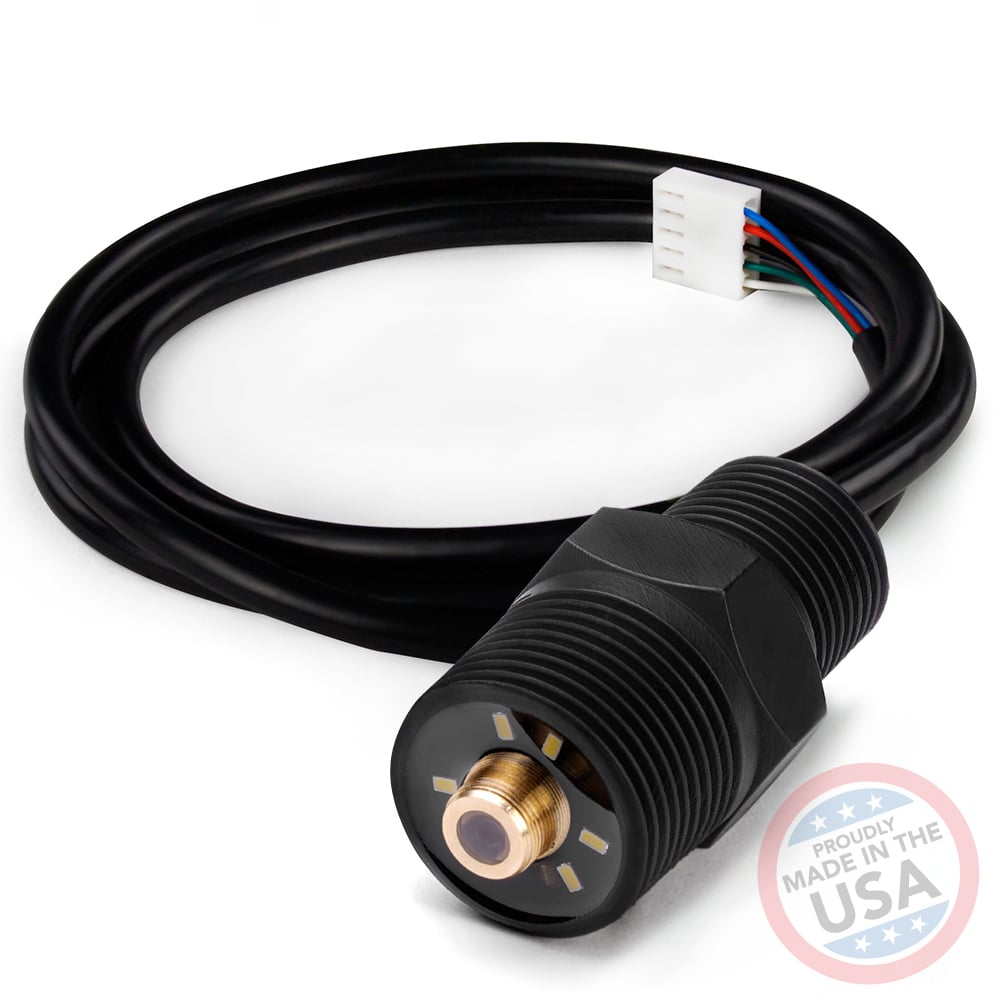

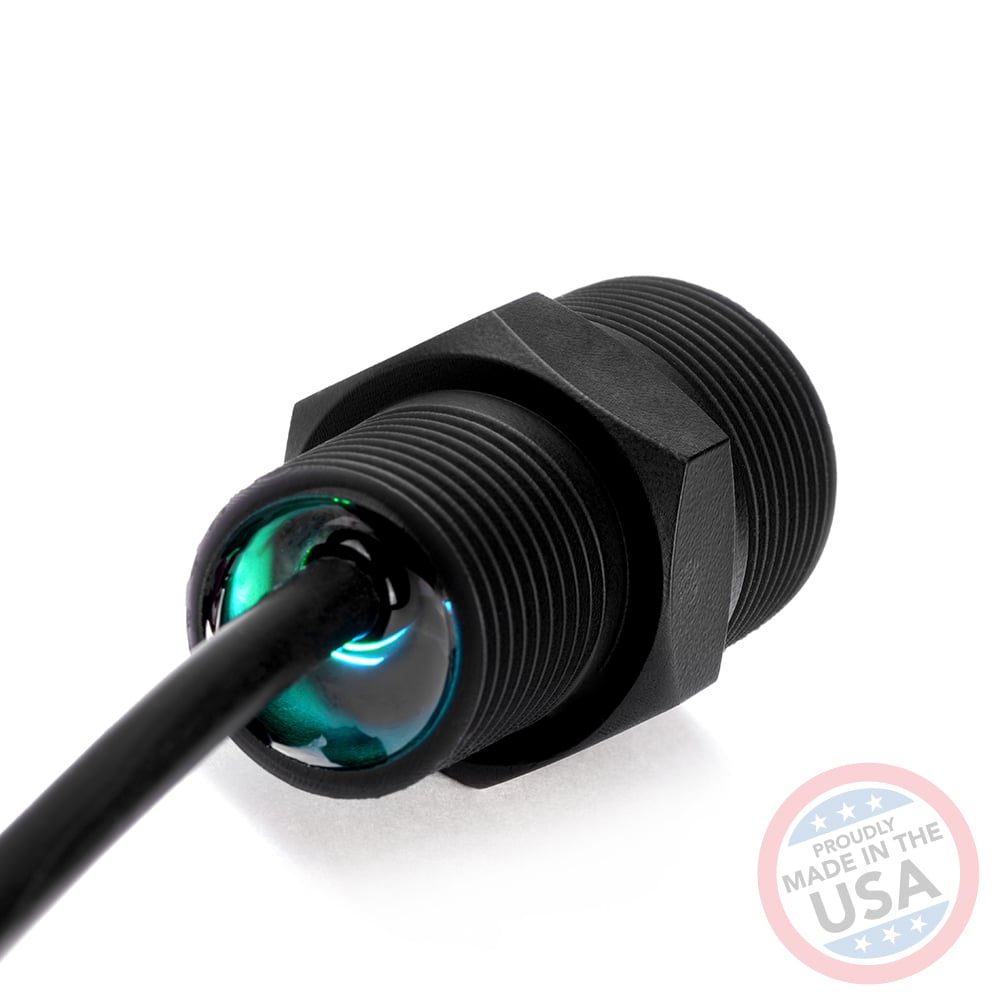

EZO-RGB™ Embedded Color Sensor – Plastic Body
EZO-RGB™ Embedded Color Sensor – Plastic Body
Regular price
24.702 HUF
Regular price
Sale price
24.702 HUF
Taxes included.
With your smartphone’s high-definition camera, accurately capturing a color in 8-Bit RGB or CIE might seem straightforward, but it’s quite intricate. The Atlas Scientific EZO-RGB-P sensor, however, simplifies this task. Housed in durable, weather-resistant photosensitive resin body with versatile mounting options, integrated illuminator LEDs, and an easy-to-use data protocol, this sensor brings sophisticated color detection to an accessible level.

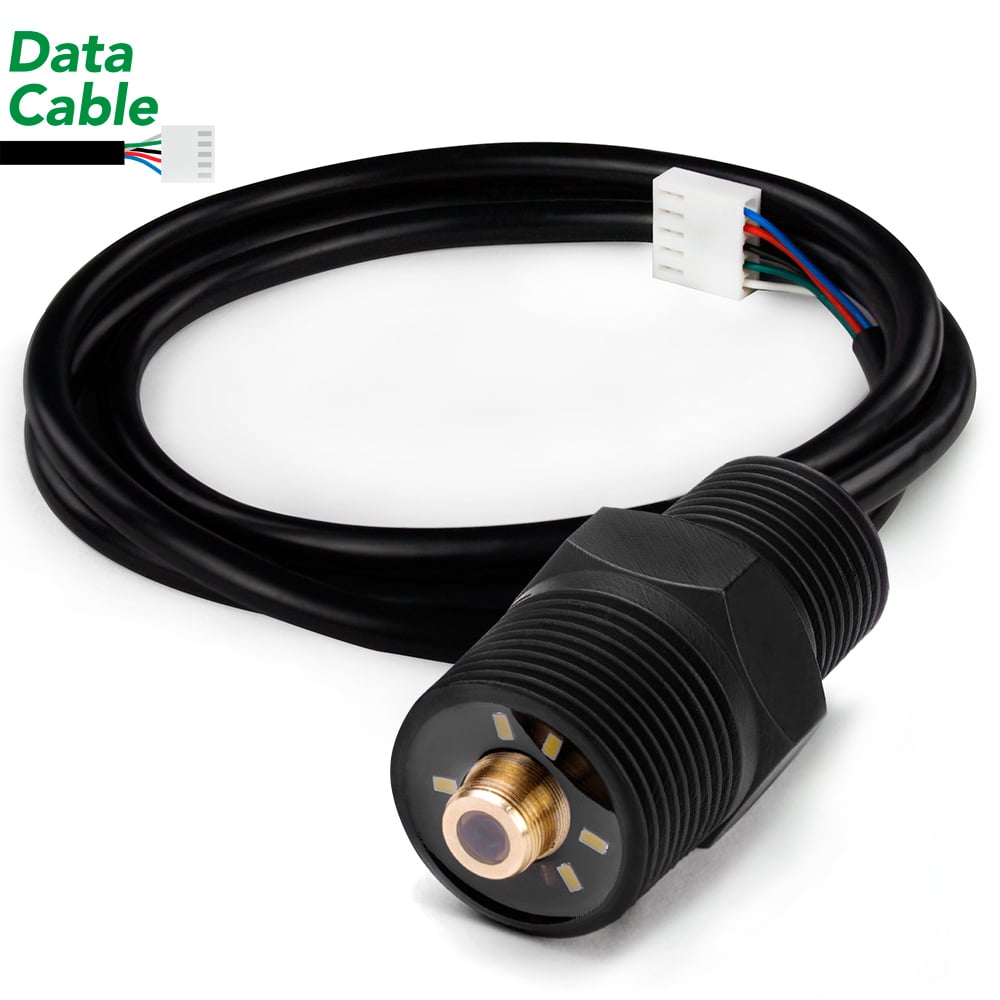

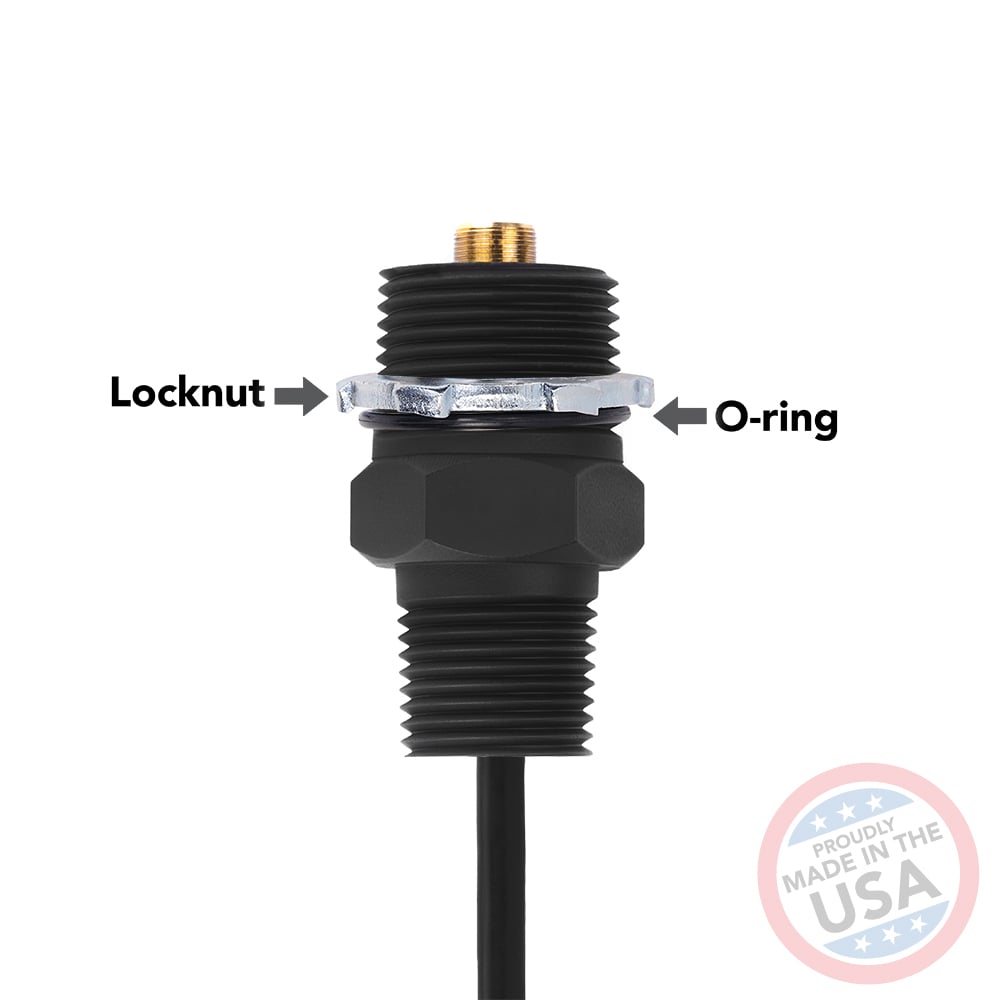

The EZO-RGB-P™ comes with: One embedded color sensor with plastic body, one data cable with 5 pin male header, and one Locknut & O-ring.
Specifications
| Reads | RGB (24-bit) |
| CIE (xyY) | |
| LUX (0 – 65535) | |

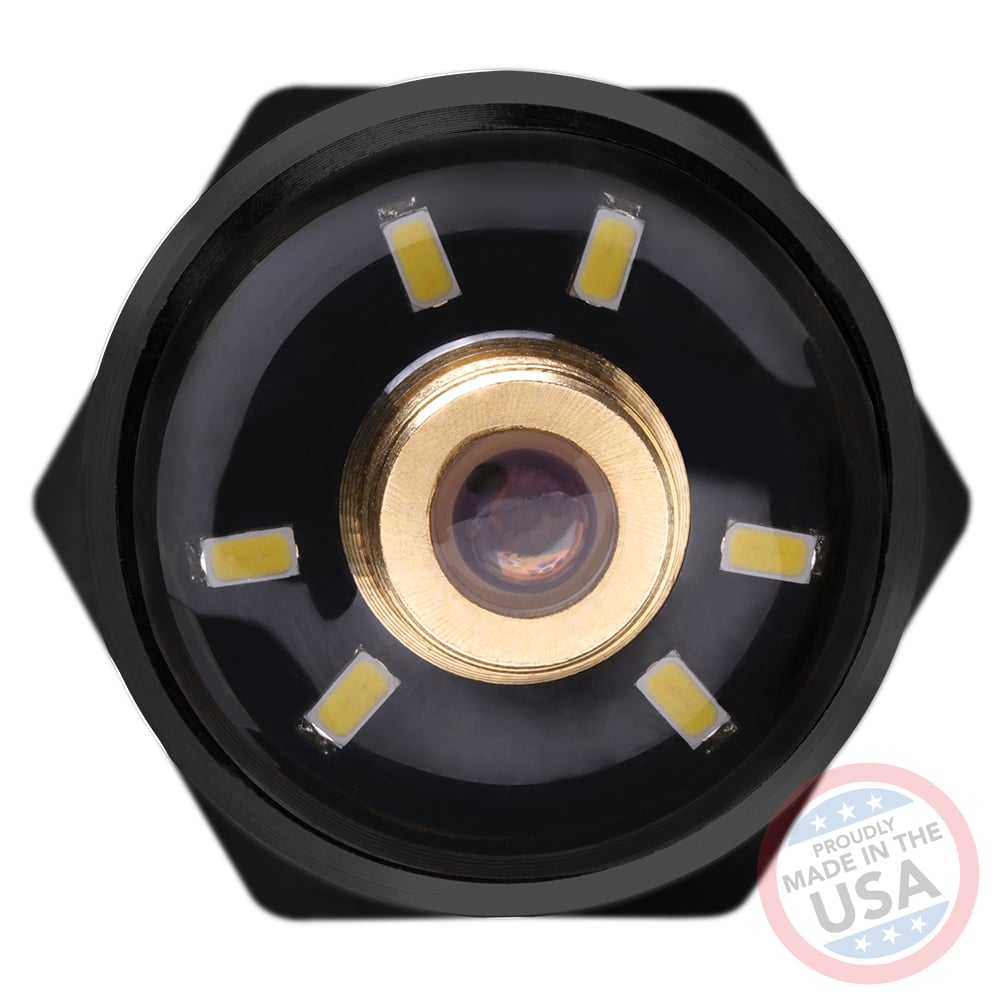

| Features | Onboard LEDs |
| Programmable color matching | |
| Body material | Black – Photosensitive Resin |

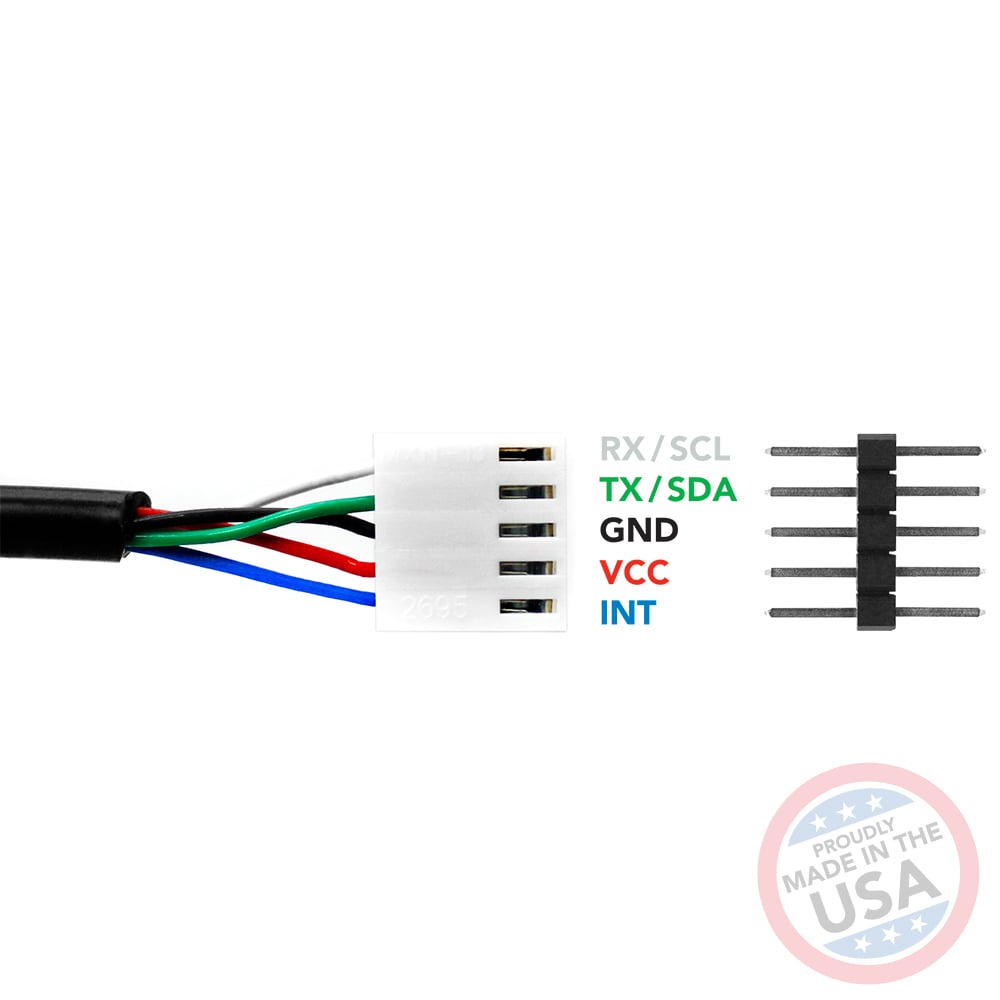

| Connector | 5 lead data cable |
| Response time | 400ms |
| Sensing area | 15° half angle |
| Cable length | 1 meter |
| Water resistant/dust proof | IP67 (waterproof up to 1 meter) |
| Data protocol | UART & I2C |
| Default I2C address | 112 (0x70) |
| Data format | ASCII |
| Operating voltage | 3.3V − 5V |
Documents & downloads
- EZO-RGB™ Plastic Body Datasheet
- Female connector information
- RoHS Certificate
- CE Certificate
- CSA Certificate
- FREE Software - AtlasDesktop Monitoring Software
- AtlasDesktop Monitoring Software Users Guide
- How to view RGB output on your computer
- Arduino Uno Sample Code
- Arduino Mega / Giga Sample Code
- Arduino I2C Sample Code
- Raspberry Pi Sample Code (I2C)
- EZO UART Library
- EZO I2C Library
- EZO-RGB™ 3D model (*step)
