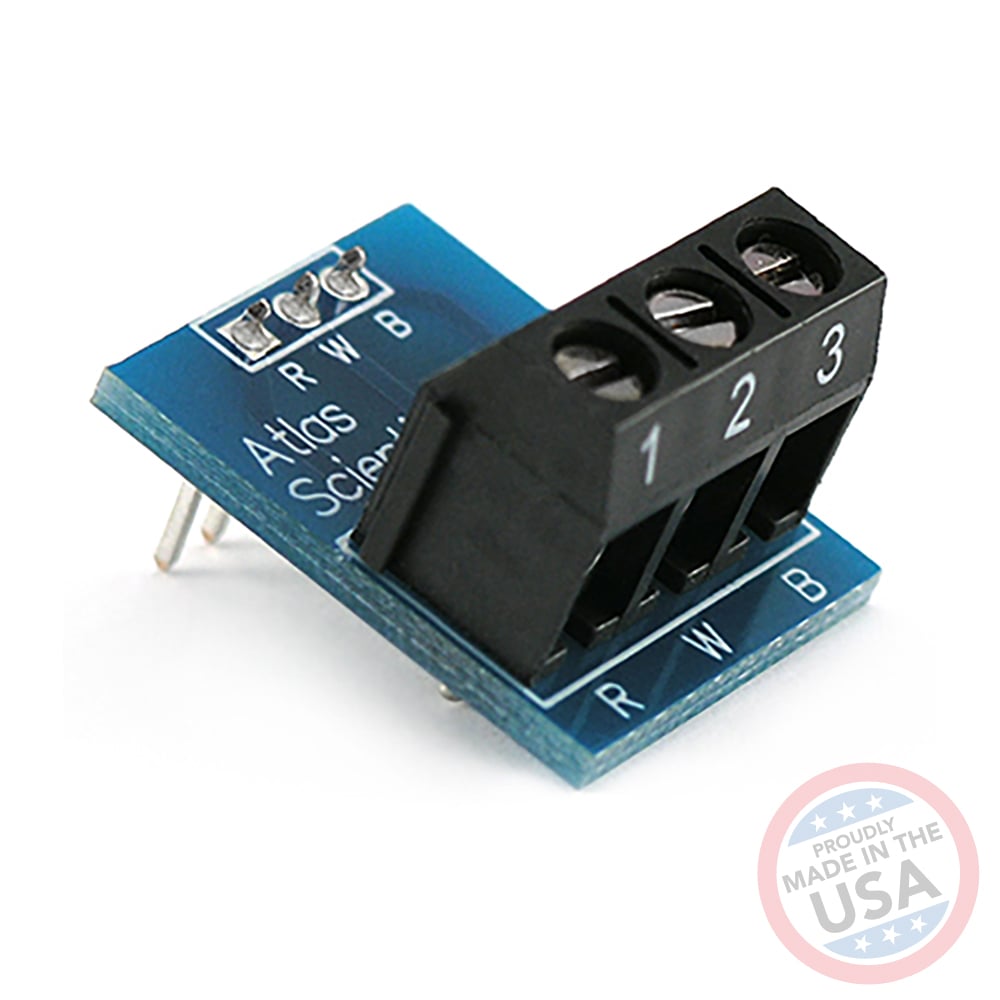

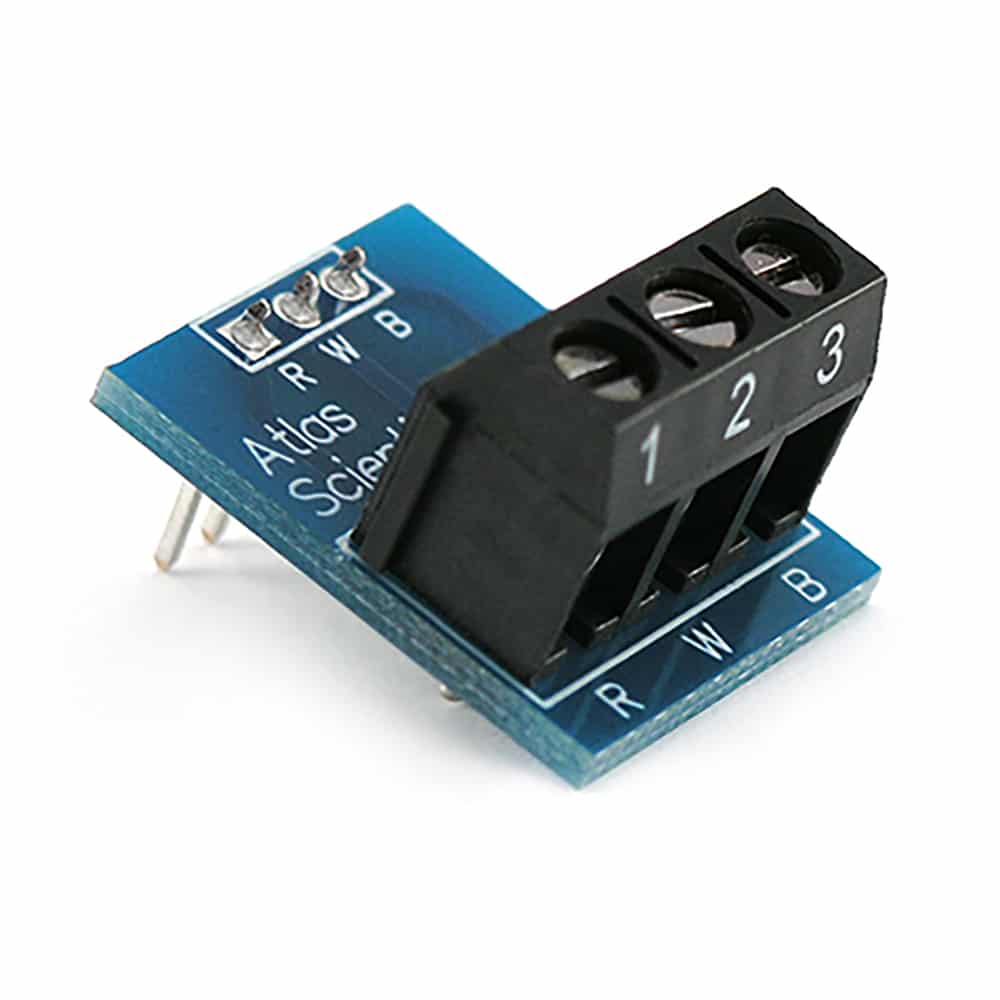

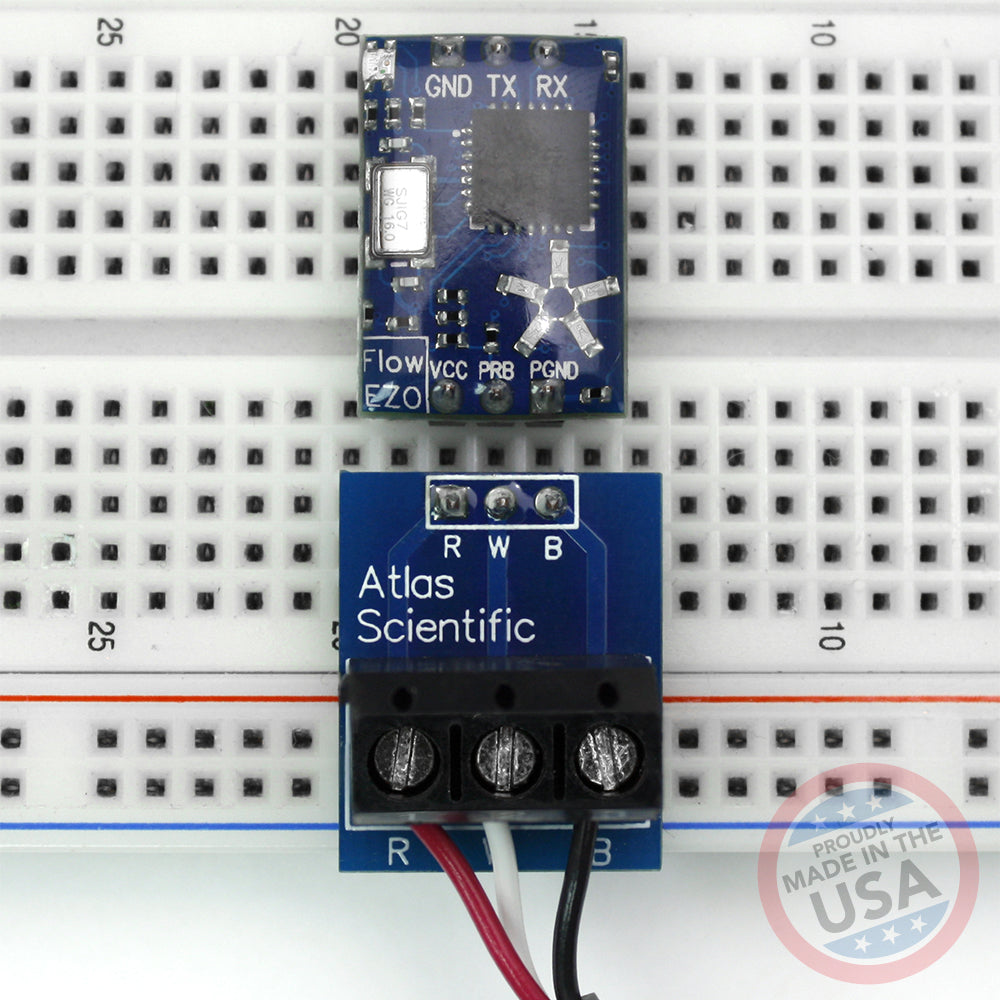

The Atlas Scientific flow connector board allows the user to easily connect a flow meter to our EZO™ embedded flow meter totalizer circuit. Simply connect the three tinned leads from any of our line of flow meters into the connector board.
Red = VCC White = Pulse Black = GND
Specifications

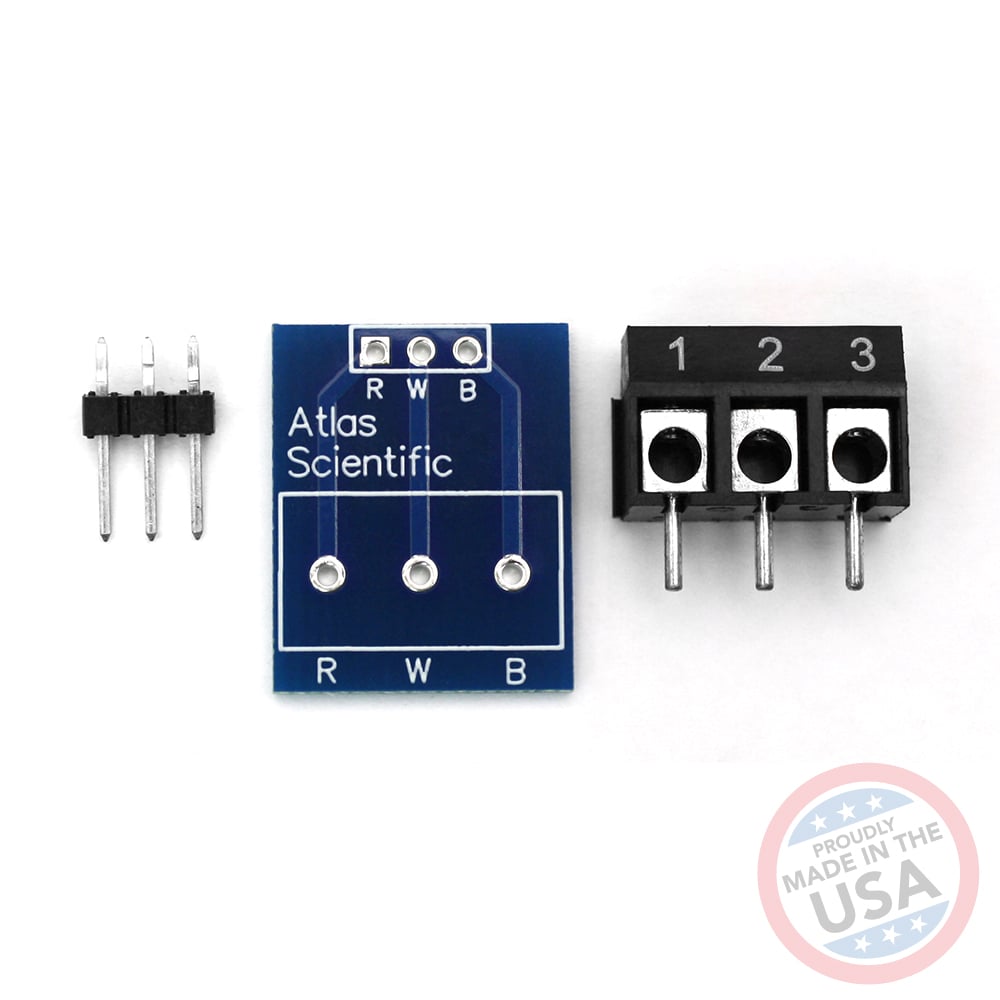

The Atlas Scientific Flow Connector Board, does not come assembled; (soldering is required.)
• Easily connects flow meter to EZO™ Universal Flow Meter Totalizer
• Simple connection R = Vcc, W = Signal, B = Ground
