(Previously known as the Gravity Analog pH Sensor / Meter)
If you are building a machine that requires pH measuring capabilities, but you only need the accuracy found in a low-cost handheld pH meter, the Atlas Scientific Surveyor™ pH meter might be for you. Simple to use and straight to the point, the Atlas Scientific Surveyor™ pH meter outputs an analog signal that’s easy to read.
Specifications
Reads
pH
Range
0.1 − 14.0
Resolution
0.1
Accuracy
+/– 0.2
Response Time
Continuous analog output
Supported probes
Any type & brand
Calibration
Optional
Temp Compensation.
No (unnecessary)
Data Protocol
Analog 2.7 − 0.2V
Dimensions
54mm x 32mm (2.2″ x 1.2″)
Weight
15 grams

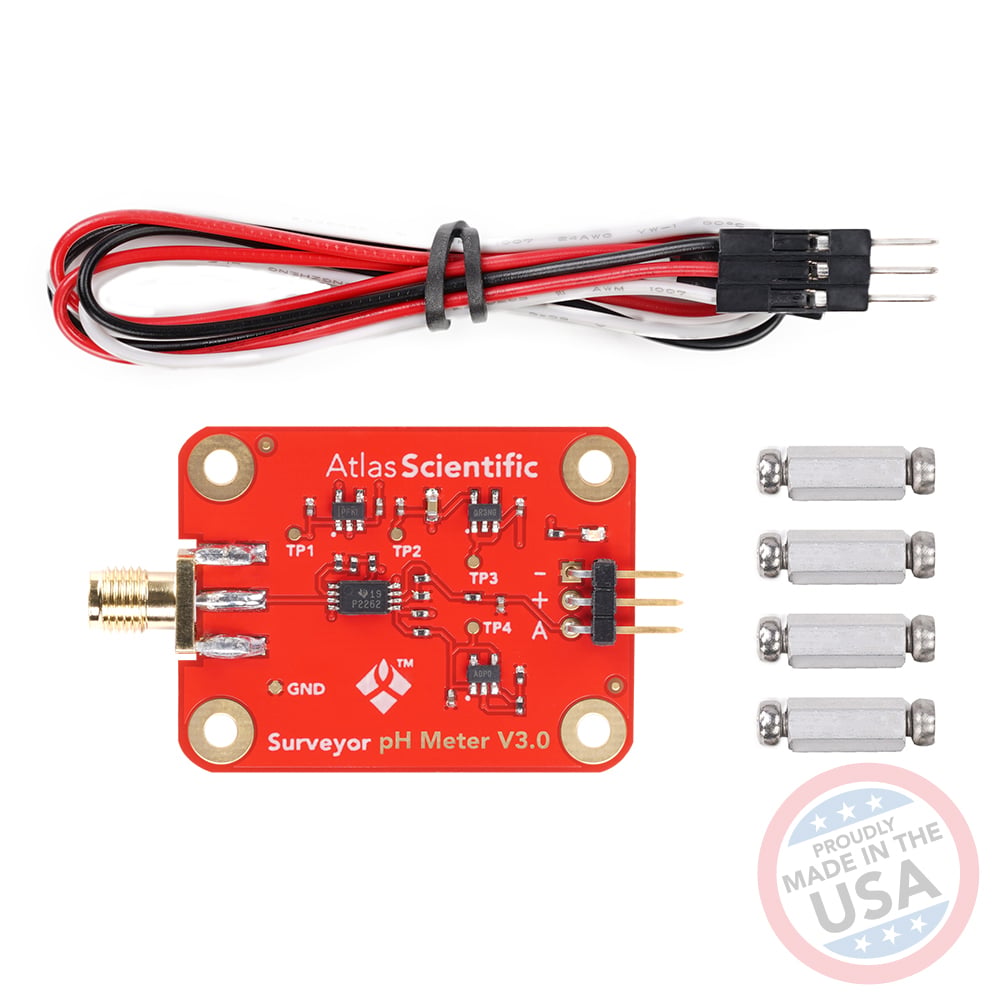

The Surveyor™ Analog pH Sensor / Meter comes with (4) standoffs and screws, (1) 3 pin jumper cable
