(Previously known as the Gravity Analog Temperature Sensor/Meter) Platinum temperature sensors provide the highest level of stability and repeatability. The Atlas Scientific Surveyor™ Analog Temperature Meter is an analog temperature sensing solution that gives consistent readings over the life of your machine. Compatible with any off-the-shelf PT-1000 sensor, this drop-in component makes complex temp sensing easy.
Specifications
RTD
Resistance Temperature Detector
Reads
Temperature
Range
-100°C − 220°C
Accuracy
+/– 0.5 °C
Response time
Continuous analog output
Supported probes
Any type & brand of PT-1000 RTD
Calibration
Optional
Temperature output
°C
Data protocol
Analog 0 − 3V
Operating voltage
3.3V − 5.5V
Dimensions
56.2mm x 32mm (2.2″ x 1.2″)
Weight
13 grams

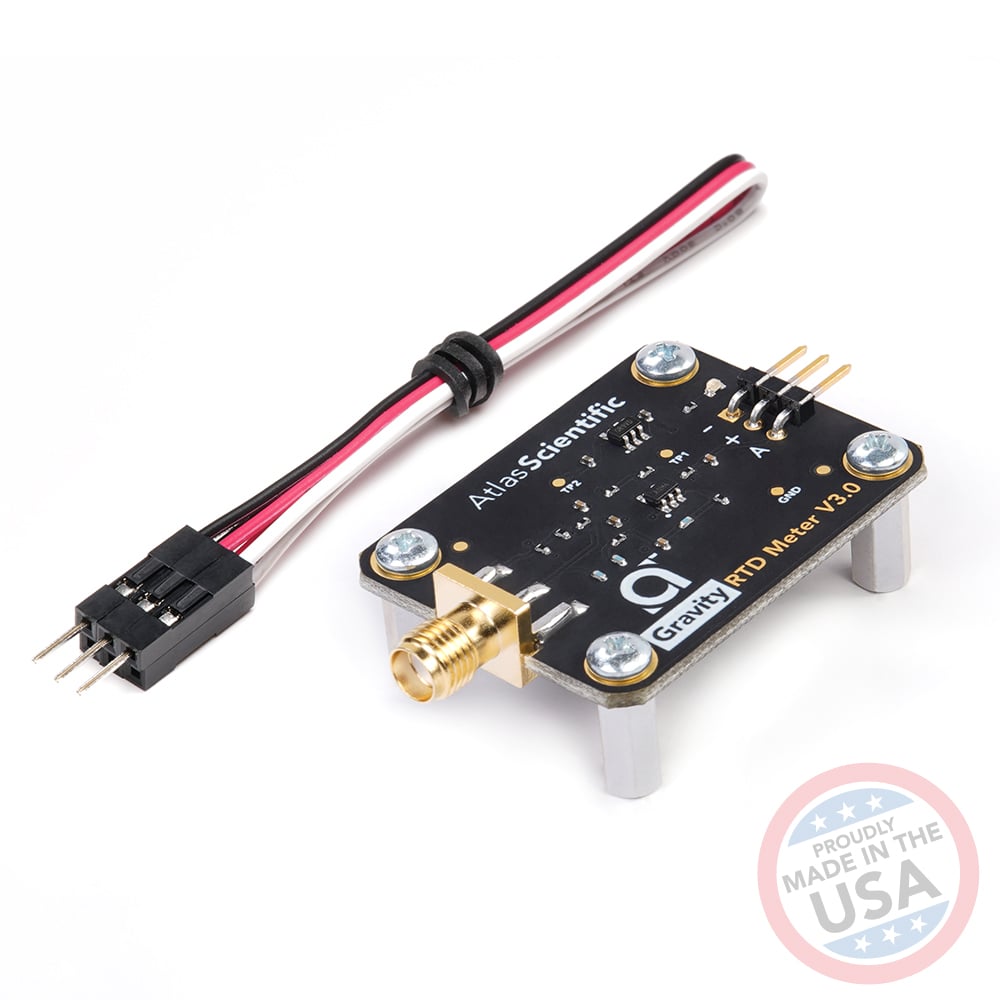

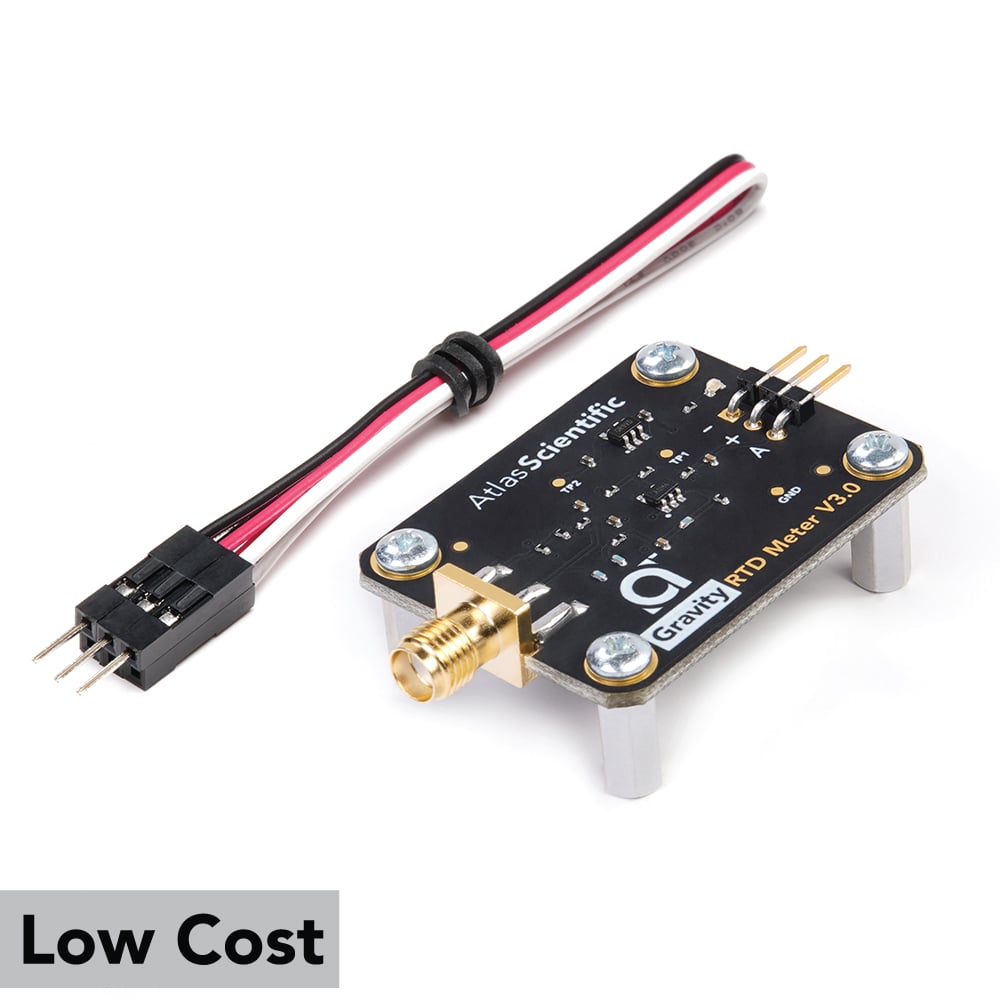

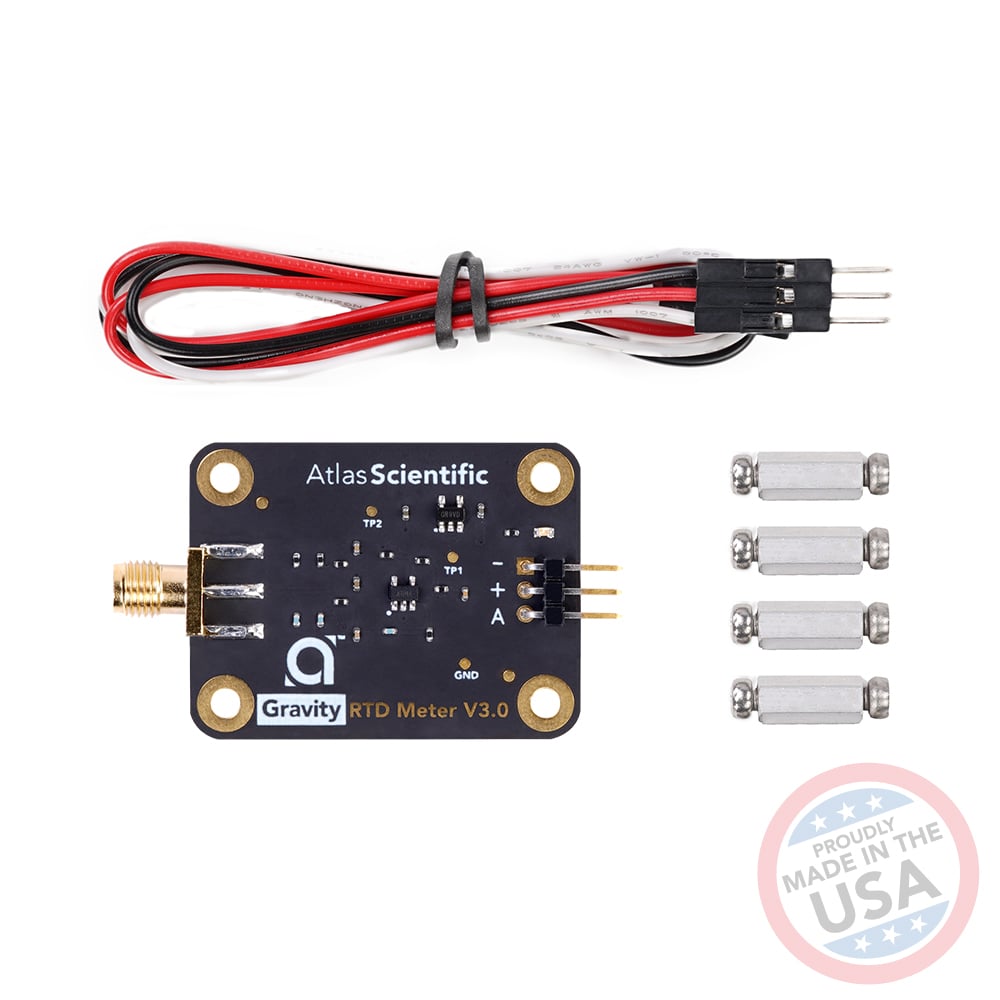

The Surveyor™ Analog Temperature Sensor / Meter comes with (4) standoffs and screws, (1) 3 pin jumper cable
