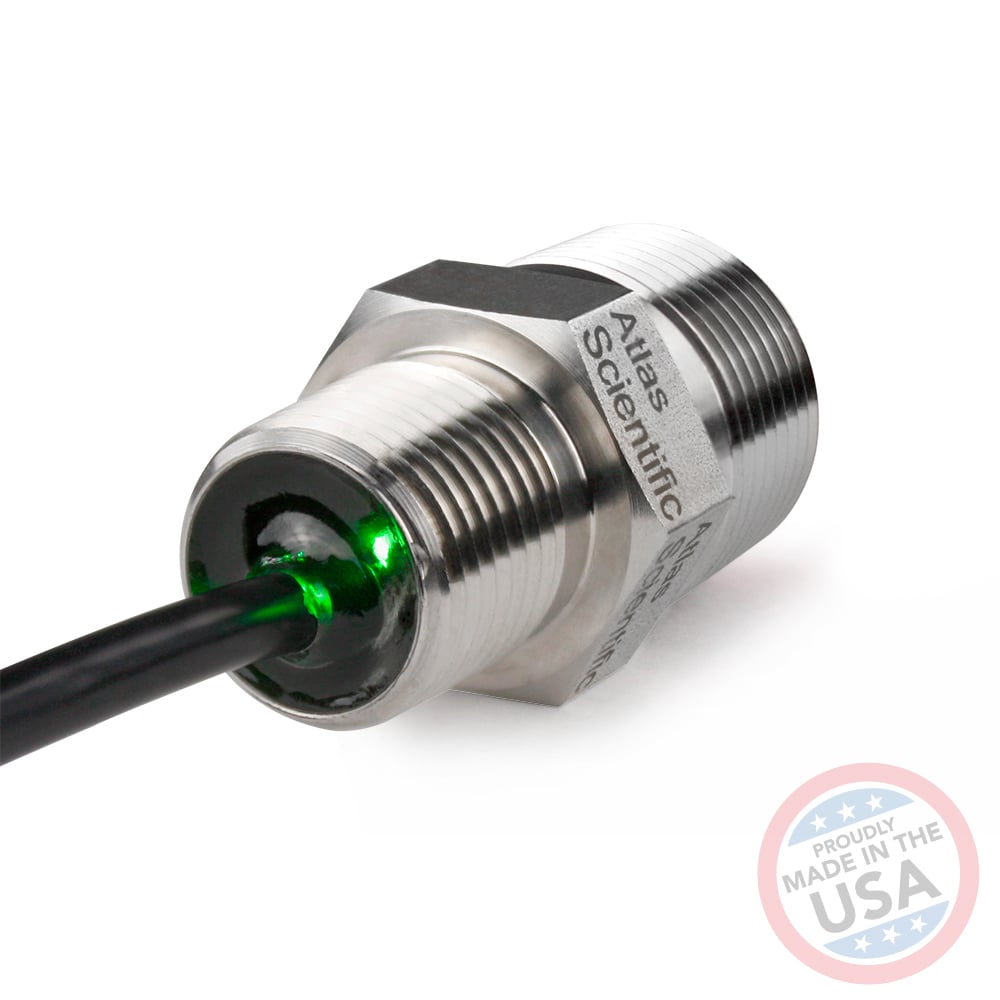

EZO-HUM™ Embedded Humidity Probe – Stainless Steel Body
EZO-HUM™ Embedded Humidity Probe – Stainless Steel Body
Regular price
41.182 HUF
Regular price
Sale price
41.182 HUF
Taxes included.

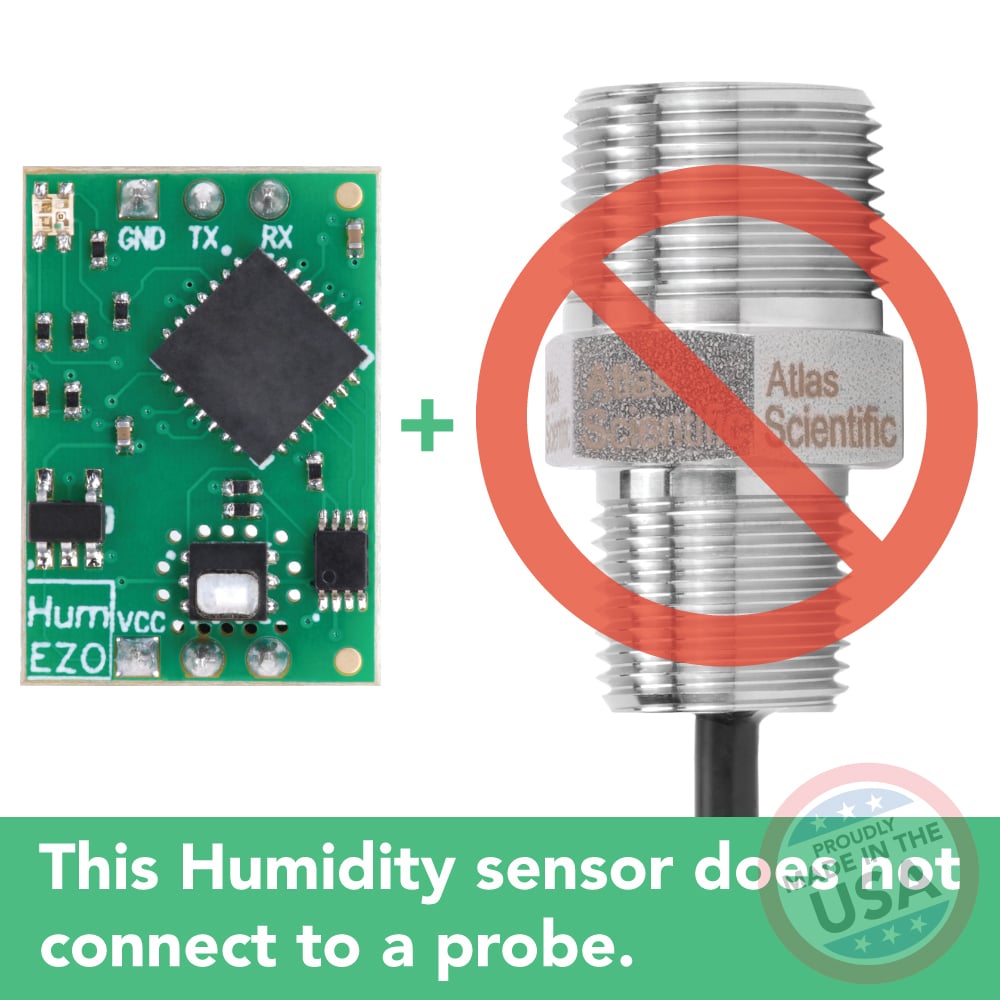

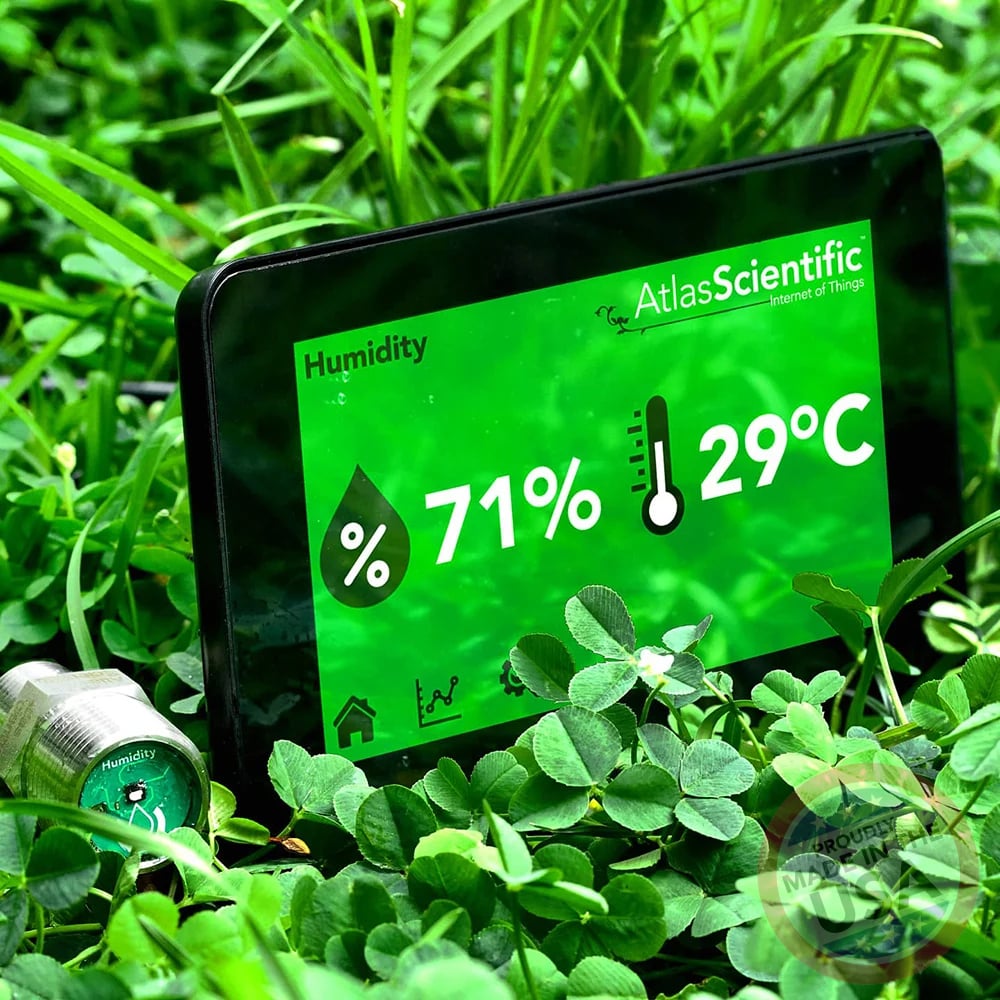

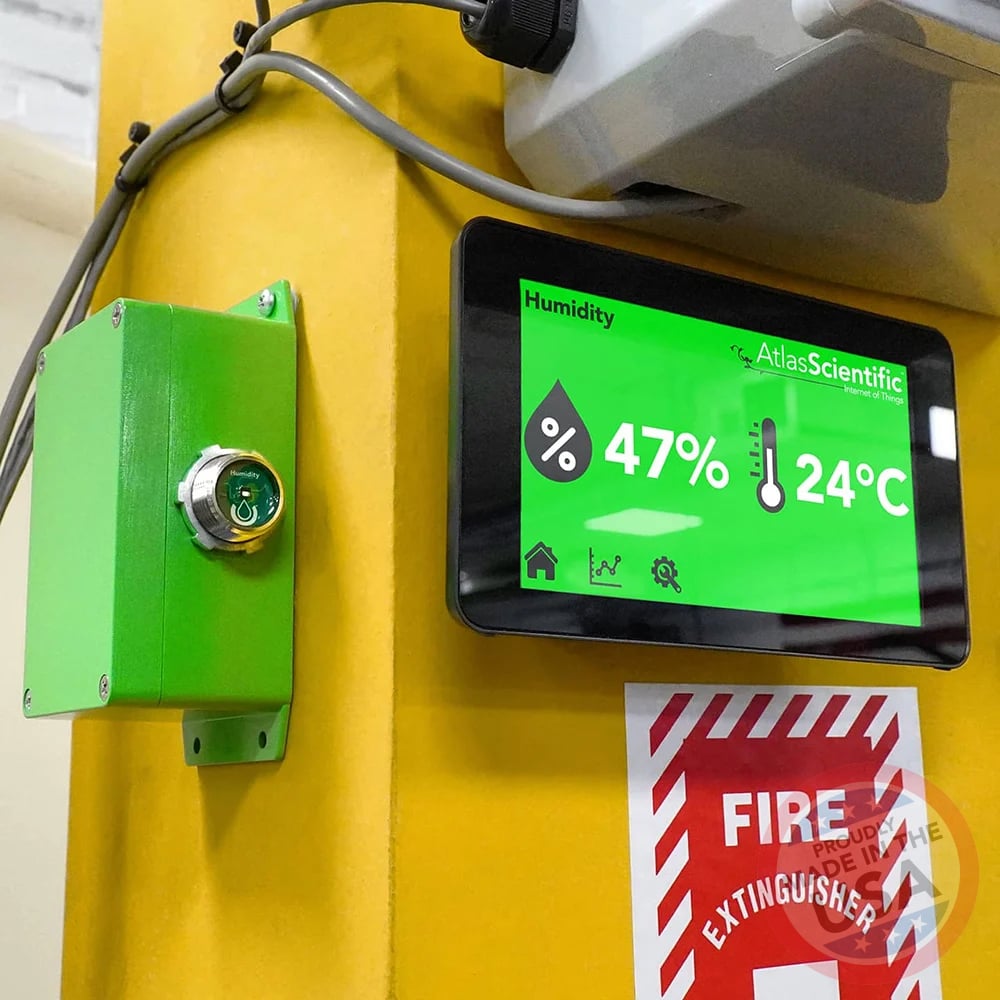

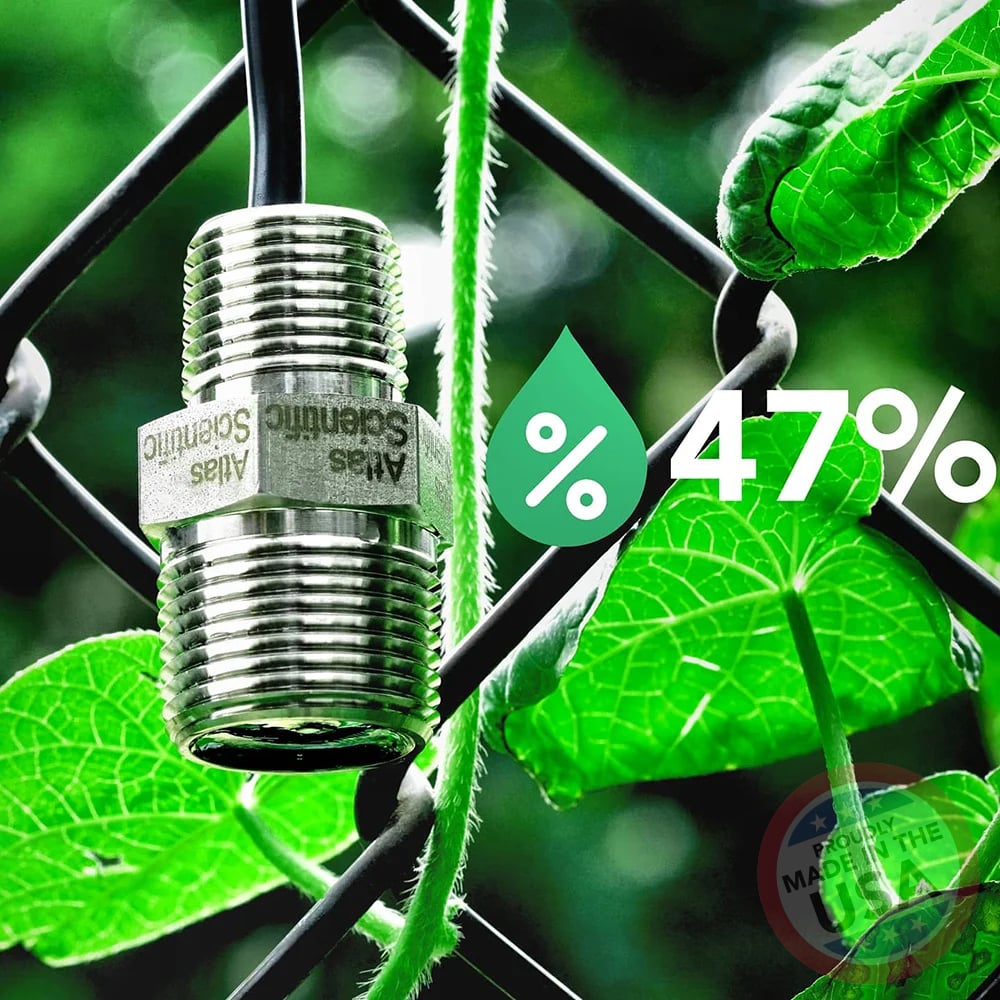

From industrial processes to environmental monitoring, this humidity probe can be used in countless applications. Our stainless steel Humidity Probe is versatile and durable; Ideal for both indoor and outdoor humidity monitoring. The EZO Embedded Humidity Probe gives the same readings as our EZO-HUM Circuit. There is no difference in the readings or accuracy, only the design.
This probe comes fully calibrated and ready to use right out of the box.

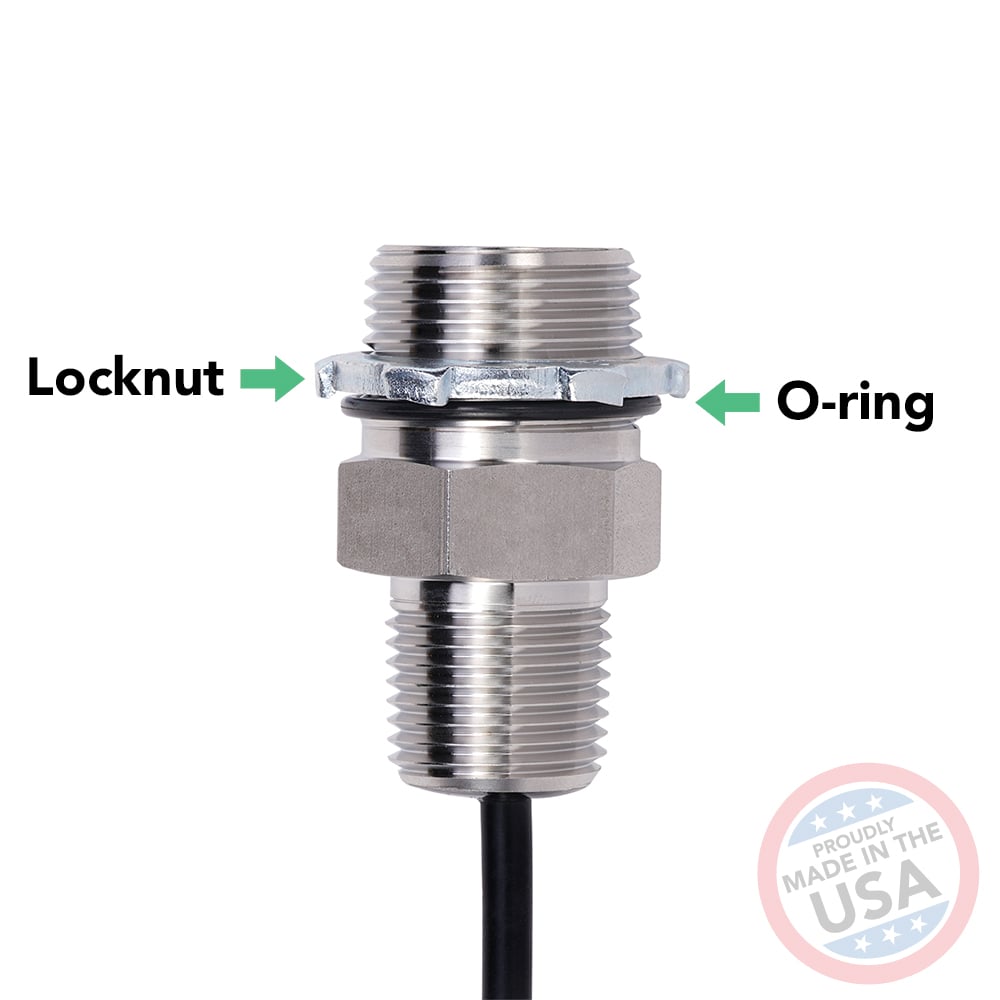

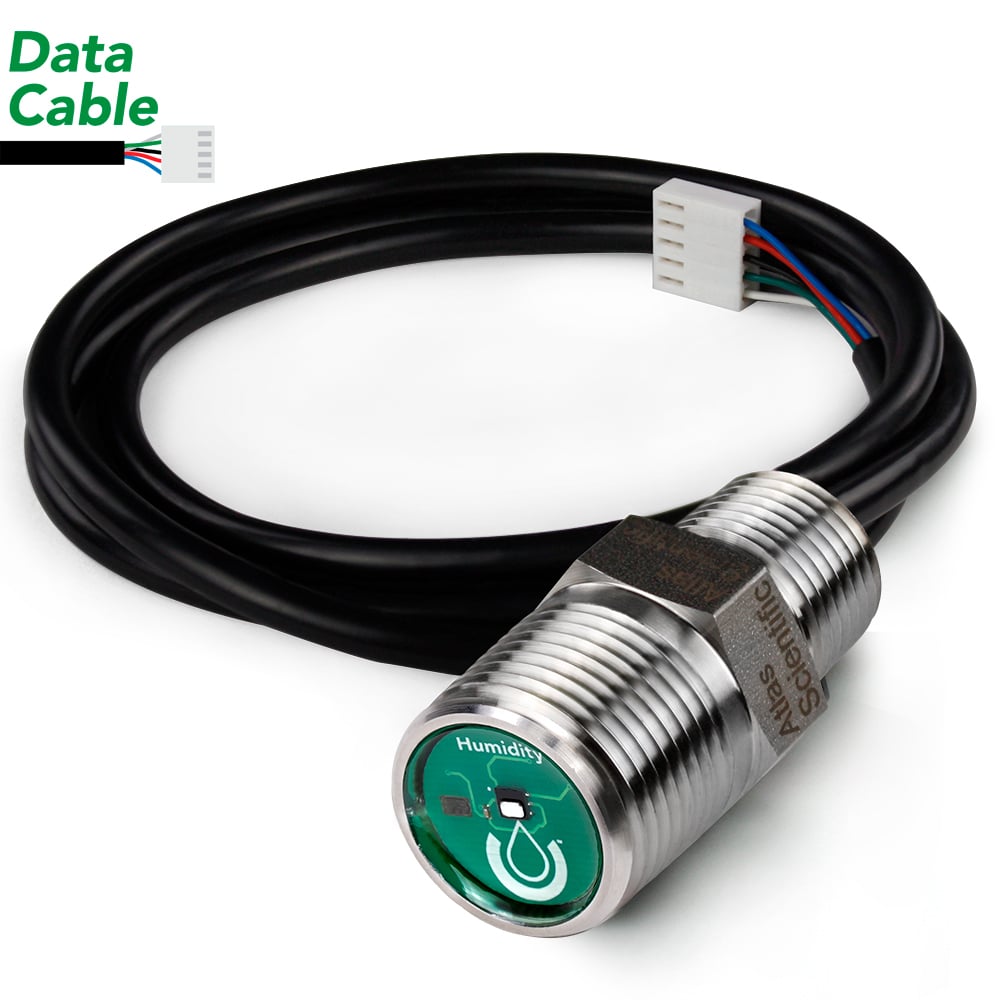

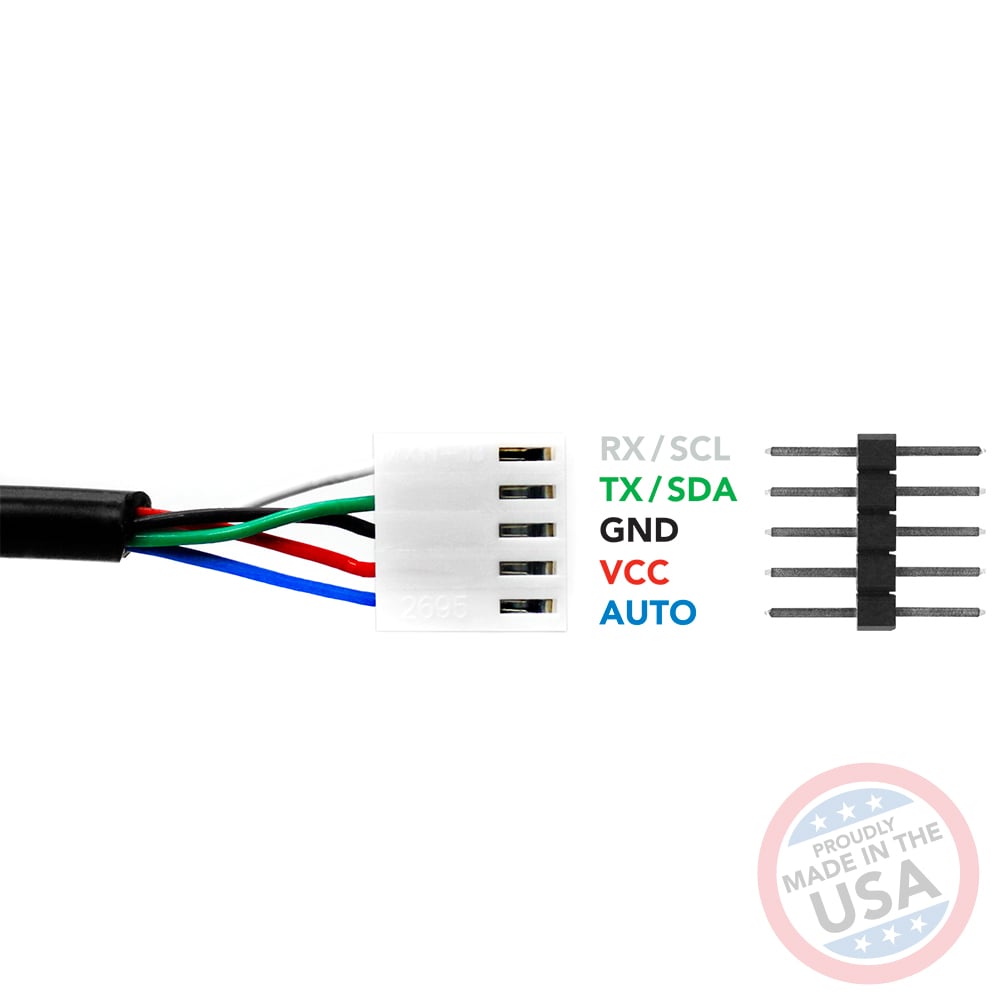

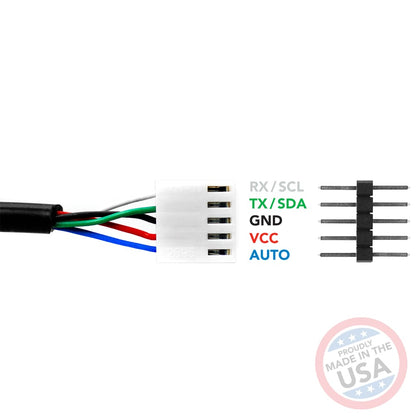

The EZO-HUM-P-S™ comes with: One embedded Humidity probe with stainless steel body, one data cable with 5 pin male header, and one Locknut & O-ring.
Specifications

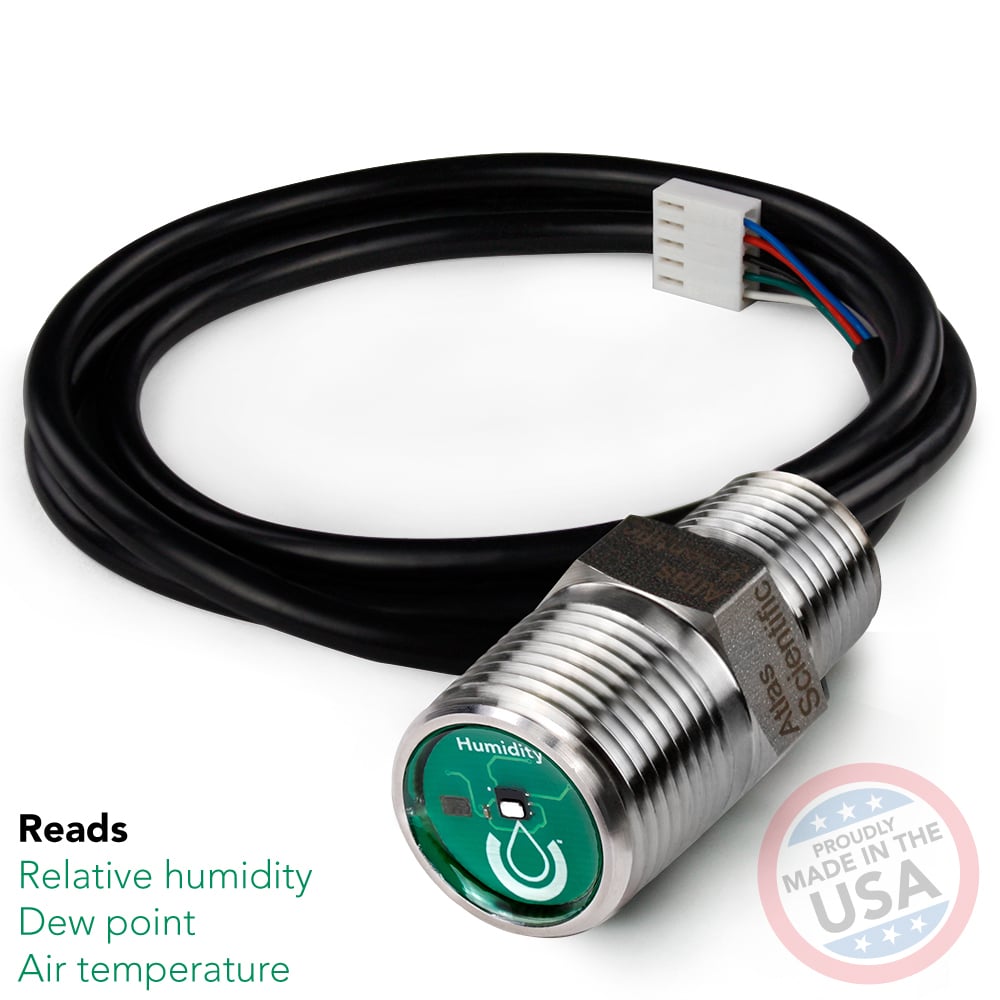

| Reads | Relative humidity (RH) |
| Dew point | |
| Air temperature | |
| Range | 0 – 100% RH |
| Calibration | Factory calibrated |
| Response time | 1 reading per second (UART mode) |
| 1 reading per 300 milliseconds (I2C mode) | |
| Accuracy | +/- 2% of reading from 5-95% RH |
| Body material | 316 stainless steel |
| Connector | 5 lead data cable |
| Cable length | 1 meter |
| Data protocol | UART & I2C |
| Default I2C address | 111 (0x6F) |
| Data format | ASCII |
| Operating voltage | 3.3V − 5V |
| IP rating | IP67 (waterproof up to 1 meter) |
| NEMA rating | 6P |
| Life expectancy | 10 years |
Documents & downloads
- EZO-HUM™ Stainless Steel Body Probe Datasheet
- Female connector information
- RoHS Certificate
- CE Certificate
- CSA Certificate
- FREE Software - AtlasDesktop Monitoring Software
- AtlasDesktop Monitoring Software Users Guide
- Arduino Uno Sample Code
- Arduino Mega / Giga Sample Code
- Arduino I2C Sample Code
- Raspberry Pi Sample Code (I2C)
- EZO UART Library
- EZO I2C Library
- EZO-HUM™ 3D model (*step)
