Industrial PT-1000 Temperature Probe

Industrial PT-1000 Temperature Probe

27.842 HUF
27.842 HUF
Sale Sold out
Taxes included.

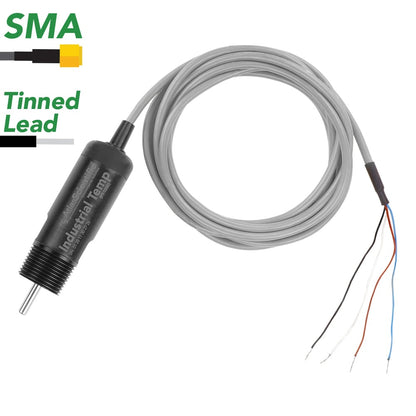

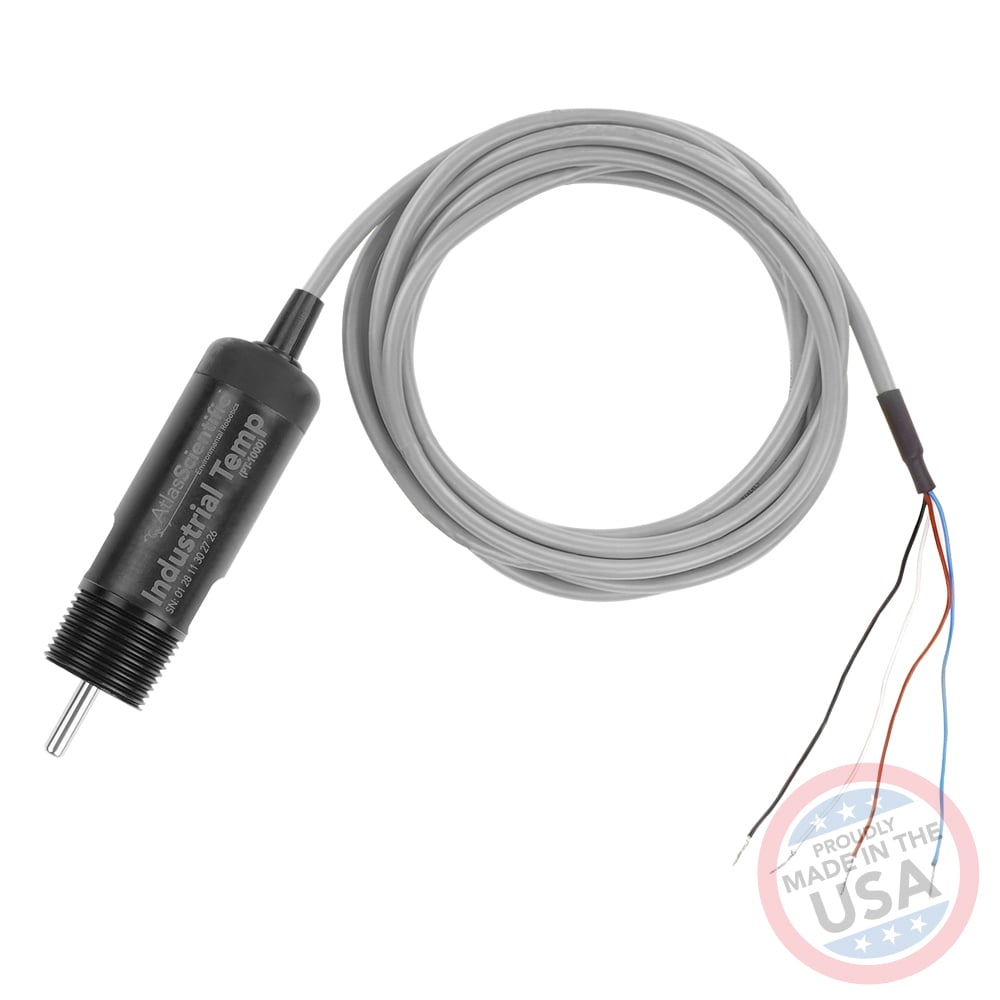

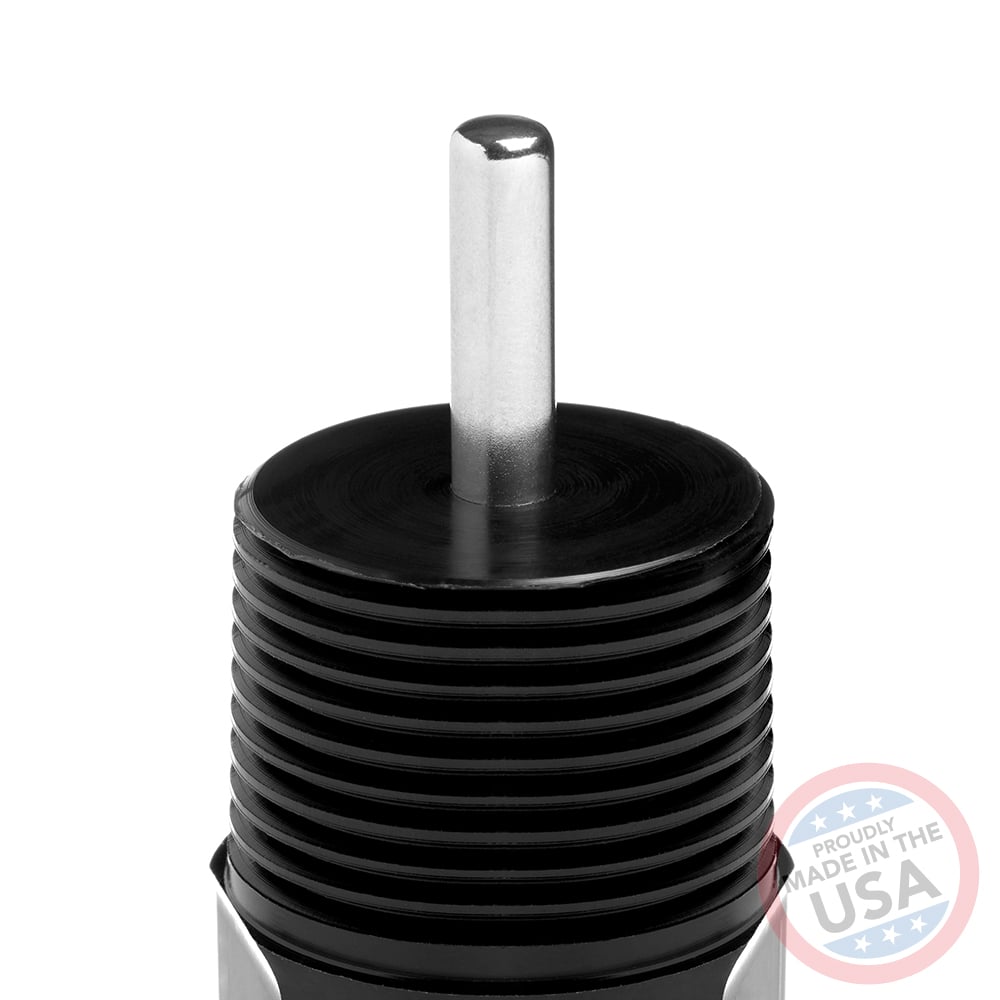

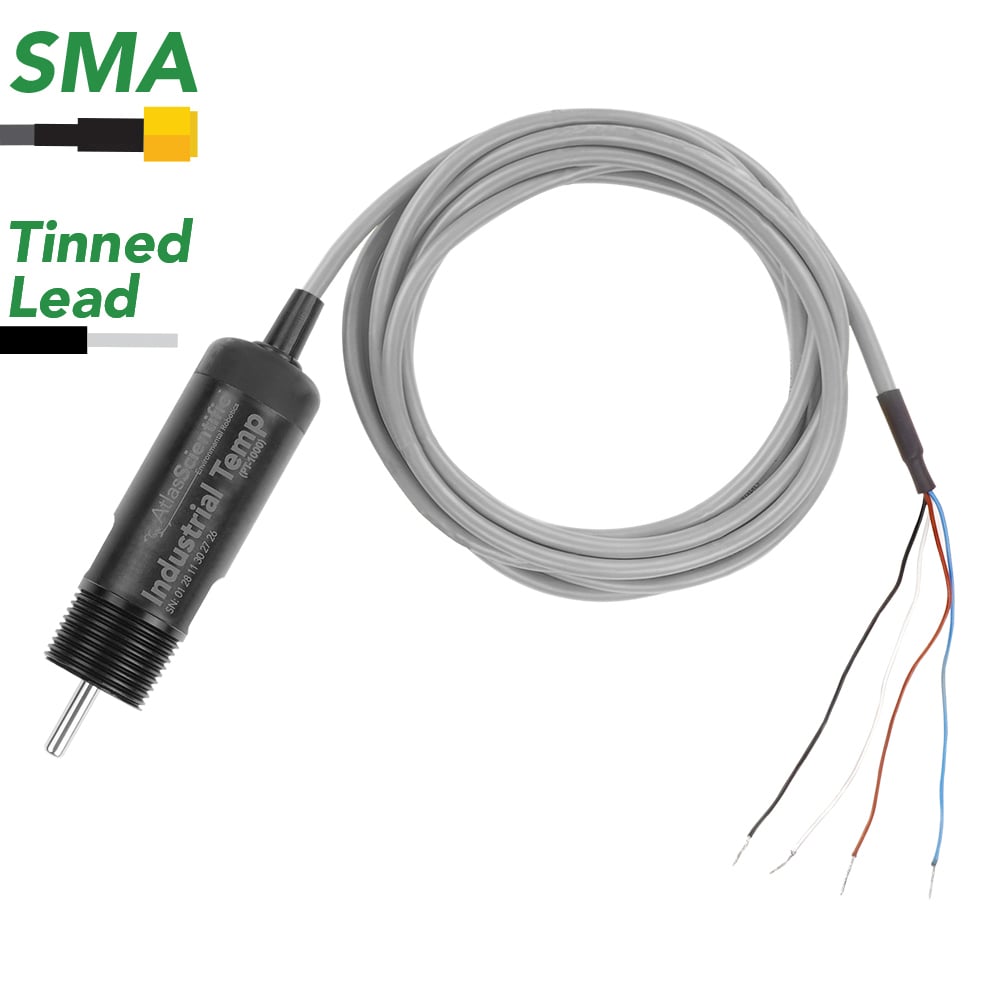

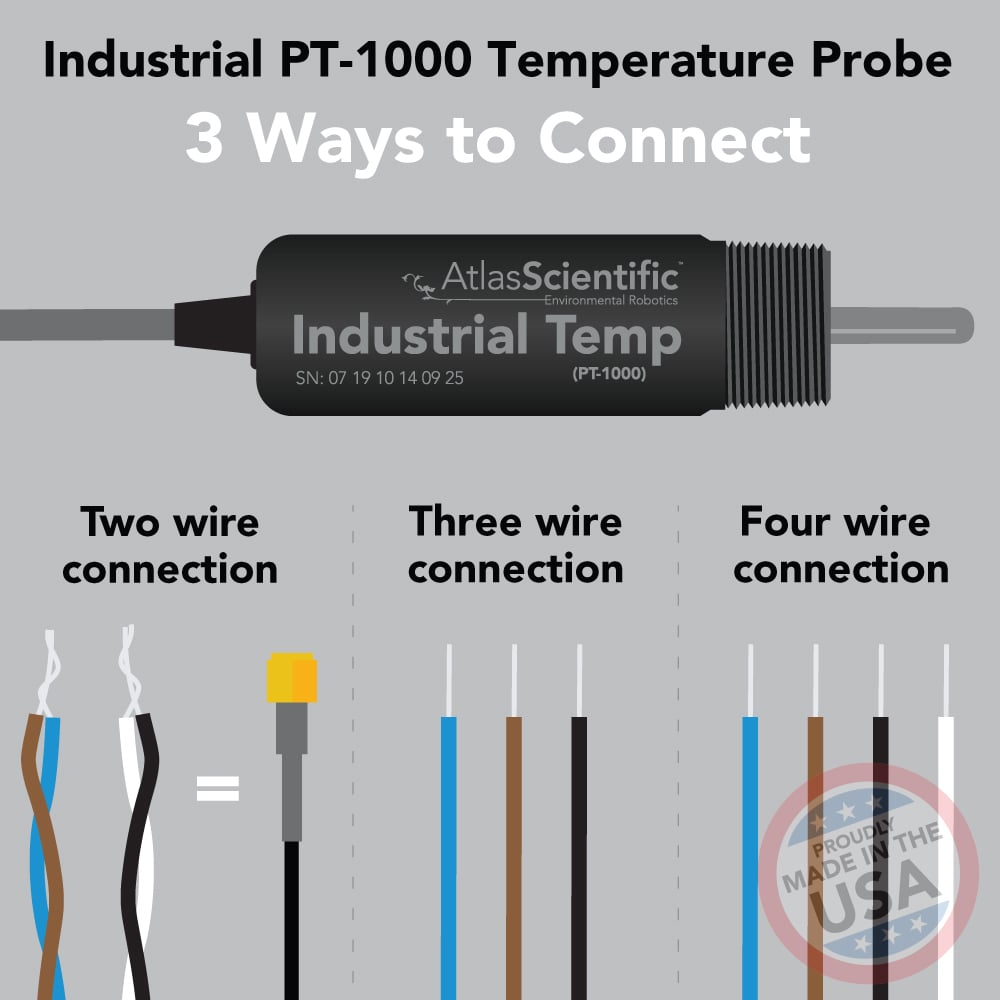

The Industrial PT-1000 Temperature Probe is a high-accuracy 4-wire temperature sensor. Internally it uses a class A PT-1000 platinum resistance temperature detector. The sensor is food safe and can be screwed into a pipe or a tank using its 3/4″ NPT threading. The sensor can be used in 2, 3, or 4 wire temperature sensor applications.

Specifications

Reads Temperature
Probe type Class A platinum, RTD
Range -55 ̊C to 220 ̊C
Accuracy +/- (0.15 + (0.002*t))
Reaction Time 90% in 13s

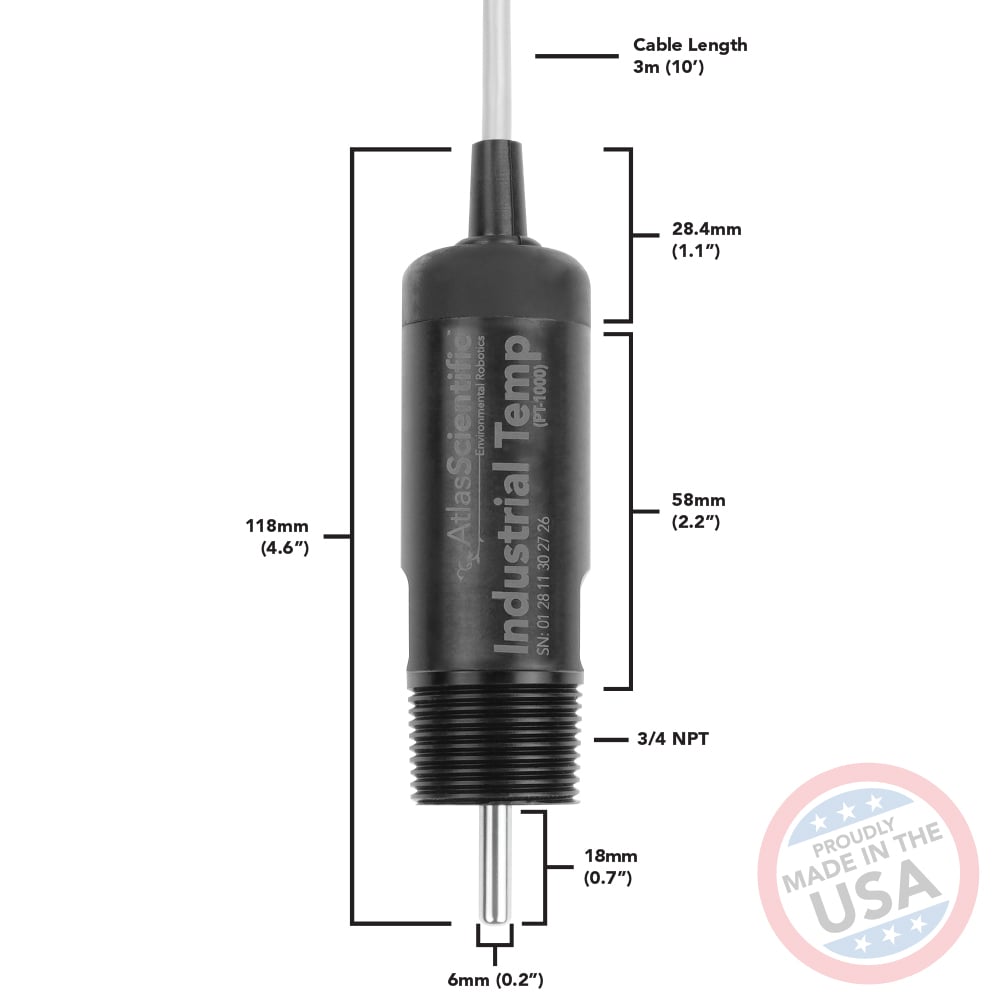

Cable length 3 Meters (10′)
Connector SMA or Tinned leads
Output Resistance (Analog)
Life expectancy 15 years
