Micro ORP Probe

Micro ORP Probe

95.692 HUF
95.692 HUF
Sale Sold out
Taxes included.

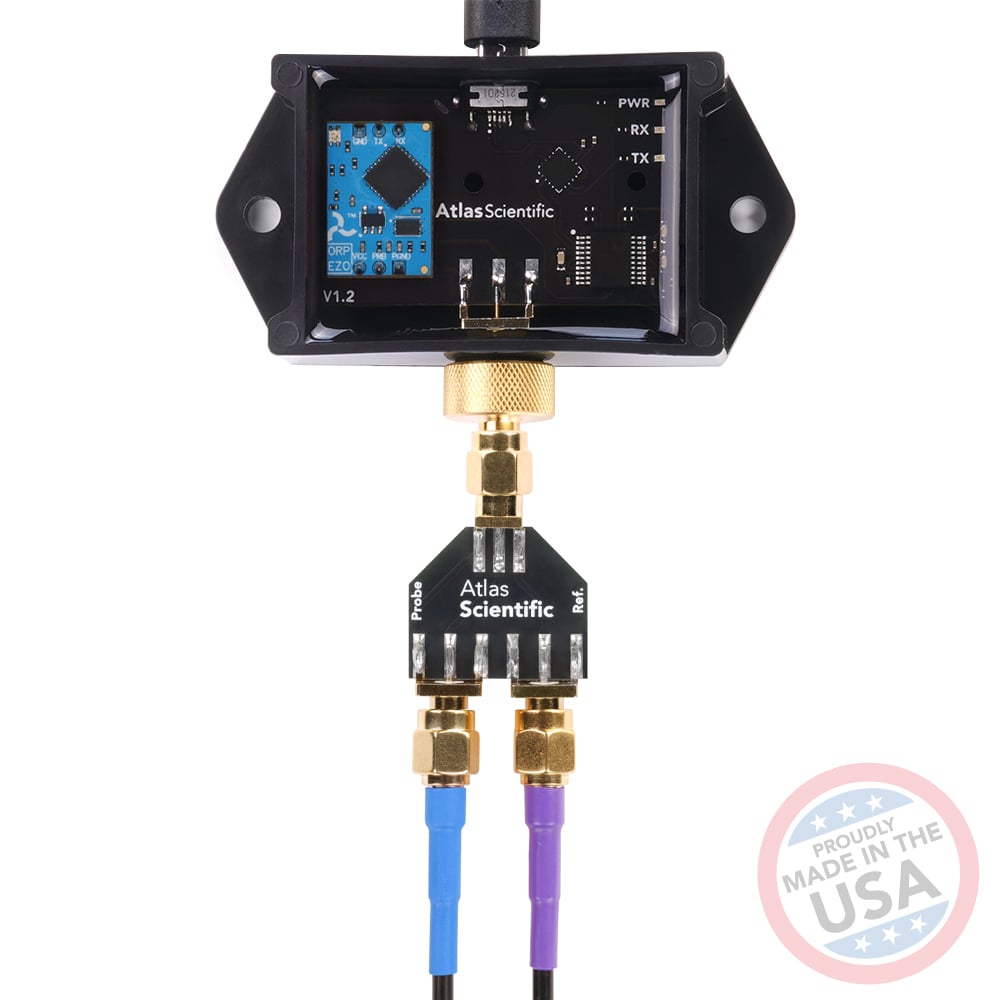

The Atlas Scientific Micro-ORP Probe was designed for microfluidics and other small applications. Because the probe is so small, it had to be built as a half cell ORP probe. A ½ cell probe works just like a normal ORP probe, but it consists of two separate pieces, the working electrode, and the reference electrode. The supplied connector board merges the two halves into one, just like a normal ORP probe.

Specifications

• 1 Micro ORP Probe
• 1 Micro Reference Probe
• 1 Half Cell SMA Breakout Board
Reads ORP
Range -2000mV – 2000mV
Accuracy +/– 1mV
Response time 95% in 1s
Temperature range °C -5 − 90 °C
Max pressure 150 PSI
Max depth 60m (197 ft)
Connector Male SMA
Cable length 61cm (2′)
Internal temperature sensor No
Time before recalibration ~1 month
Life expectancy ~6 − 12 months

Documents & downloads

View full details
Variant Variant total Quantity Price Variant total
No thanks, I have oneENV-10-ORP
No thanks, I have oneENV-10-ORP
95.692 Ft/ea		 0 Ft
95.692 Ft/ea 0 Ft
Yes, I need an adapterENV-10-ORP-SMA-HCA
Yes, I need an adapterENV-10-ORP-SMA-HCA
98.038 Ft/ea		 0 Ft
98.038 Ft/ea 0 Ft
