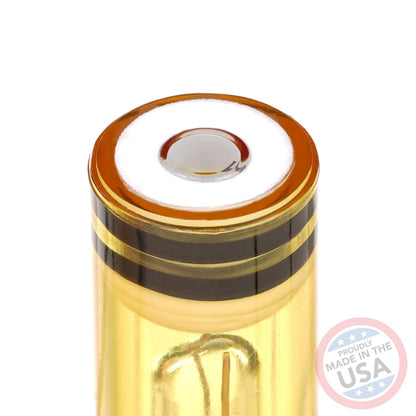

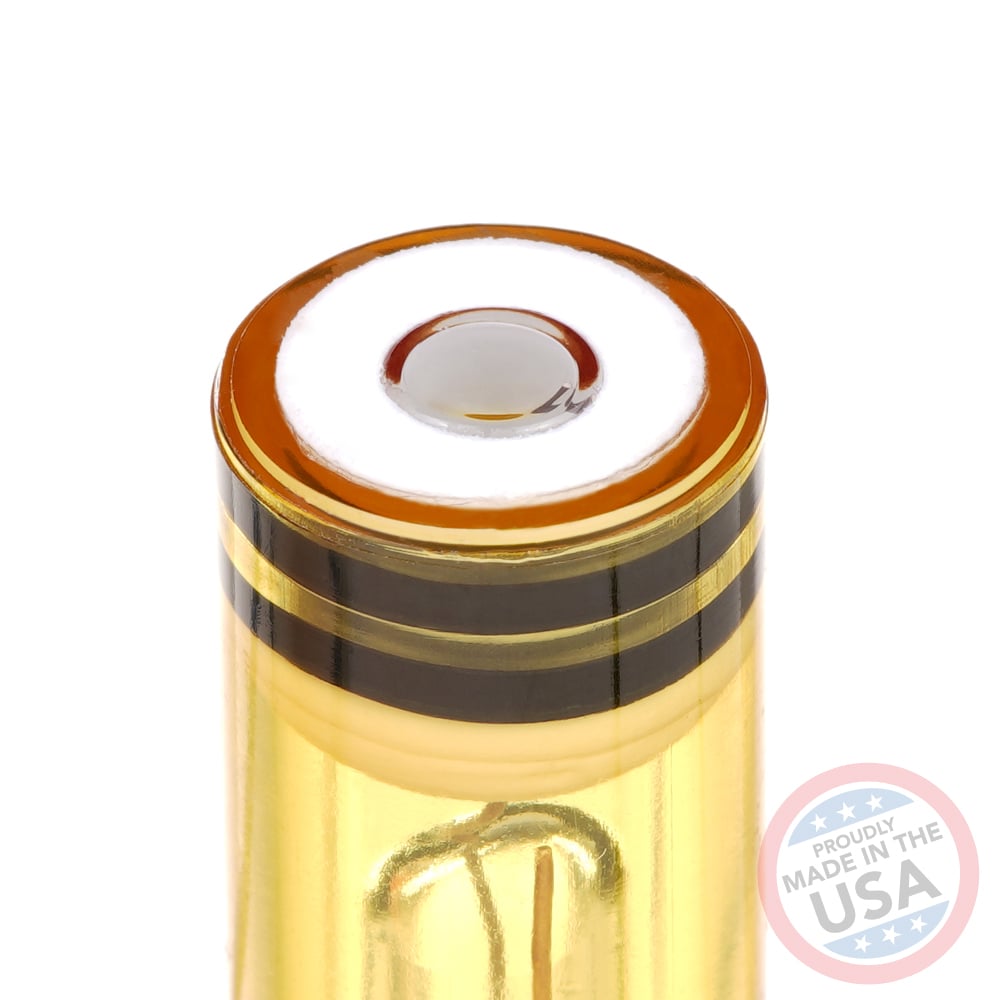

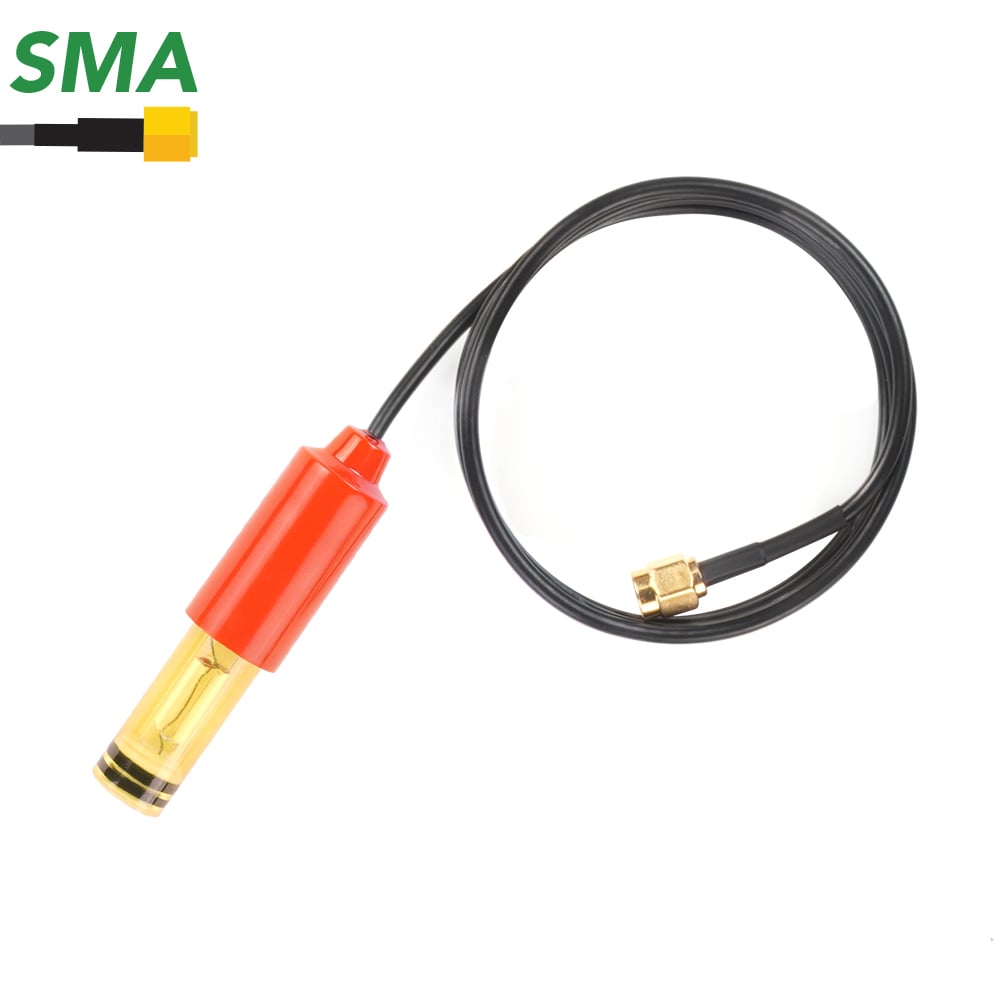

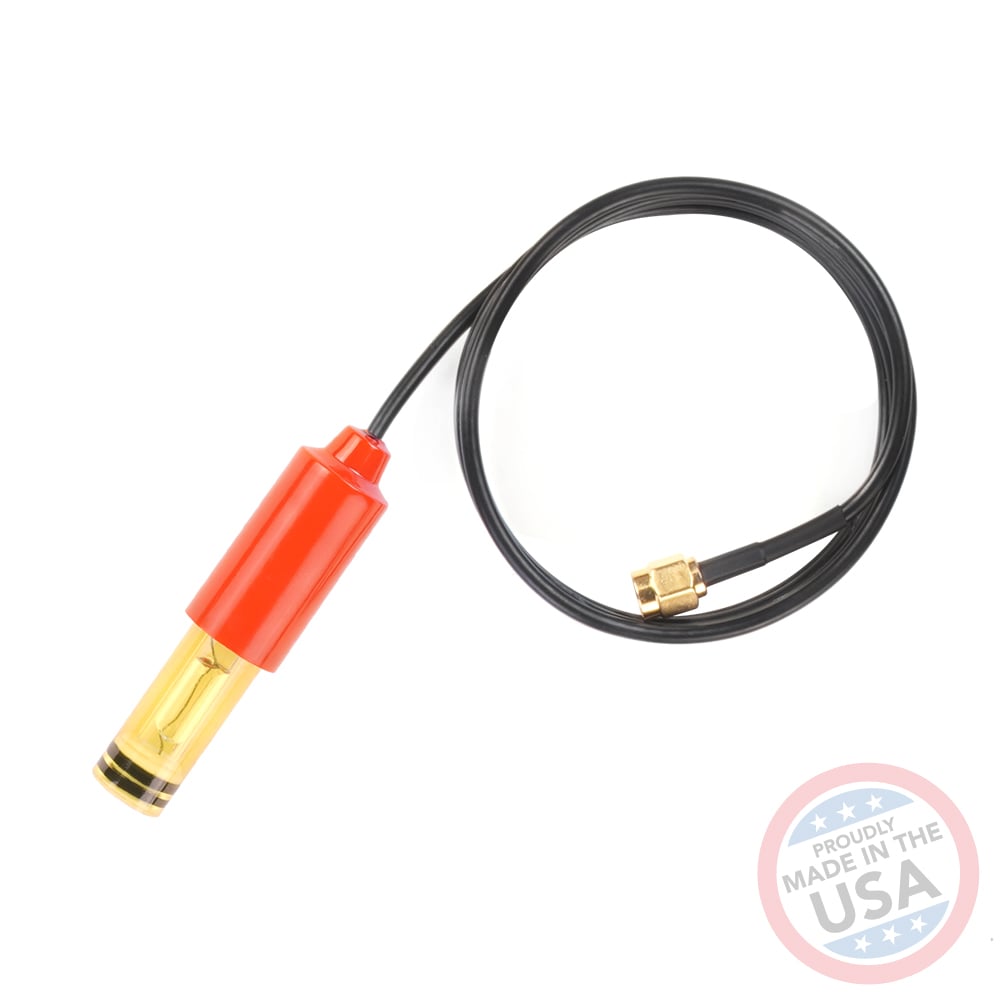

Mini Lab Grade pH Probe
Mini Lab Grade pH Probe
Regular price
39.215 HUF
Regular price
Sale price
39.215 HUF
Taxes included.

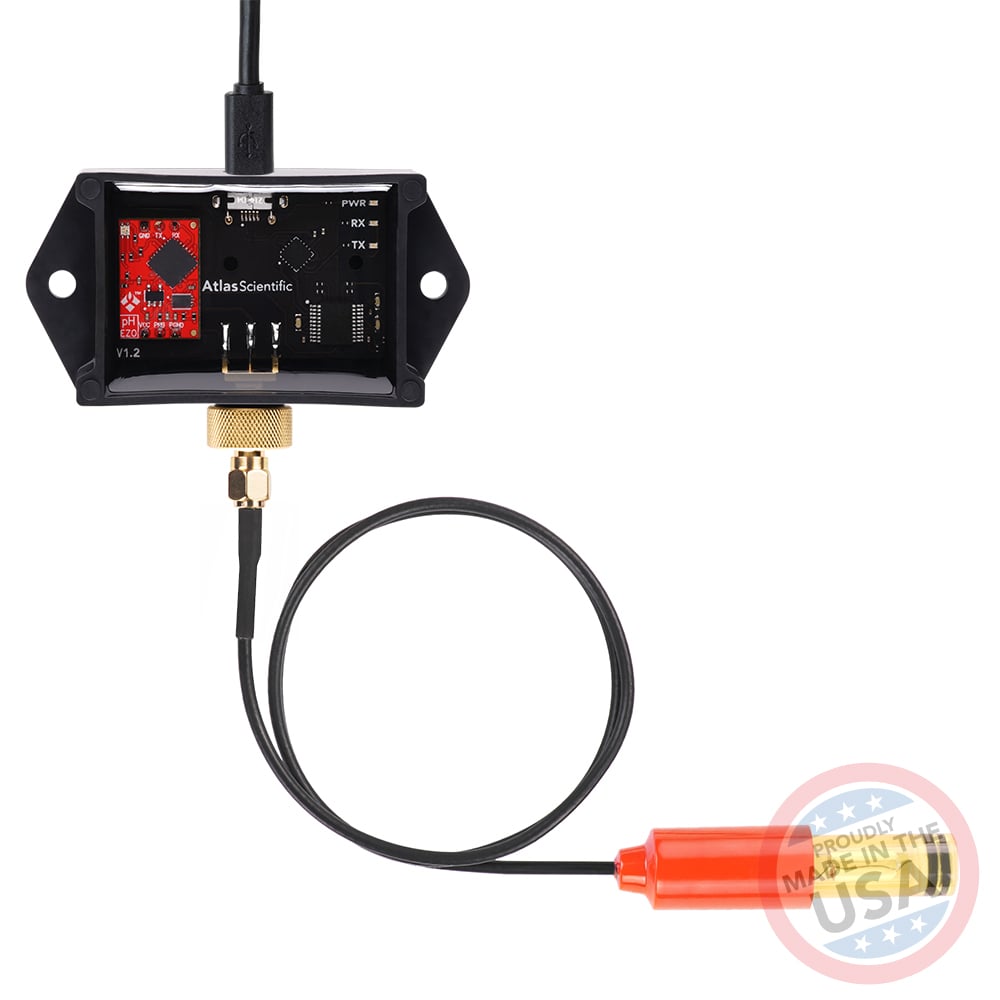

If space is an issue, the Atlas Scientific mini lab grade pH probe might be for you. This probe offers the same performance as our lab grade pH probe but in a smaller package. We have seen that a lot of engineers are using these probes inside small bench-top machines and underwater environmental monitoring applications.
Specifications
| Silver / silver chloride | |
| Reads | pH |
| Range | 0 − 14 |
| Resolution | +/- 0.001 |
| Accuracy | +/– 0.002 |
| Response time | 95% in 1s |
| Temperature range °C | -5 − 99 °C |
| Max pressure | 110 PSI |
| Max depth | 78m (254 ft) |

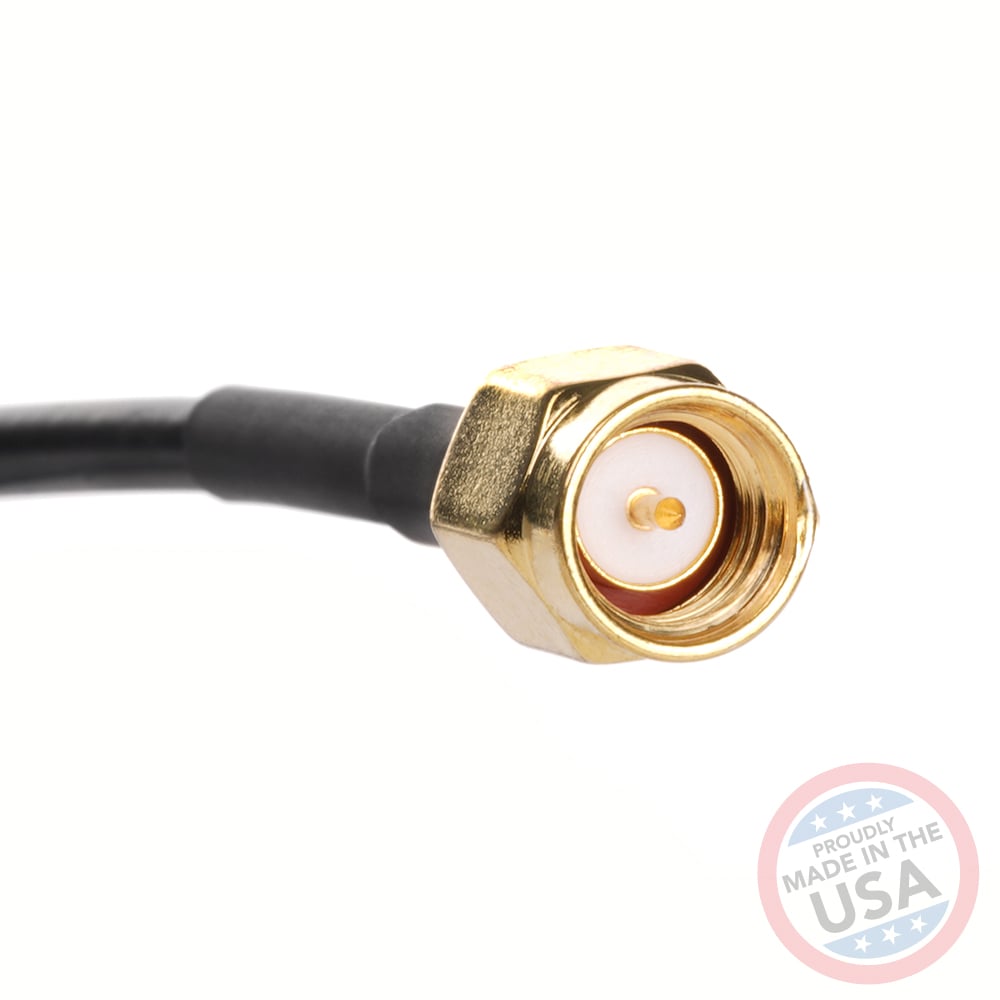

| Connector | Male SMA |

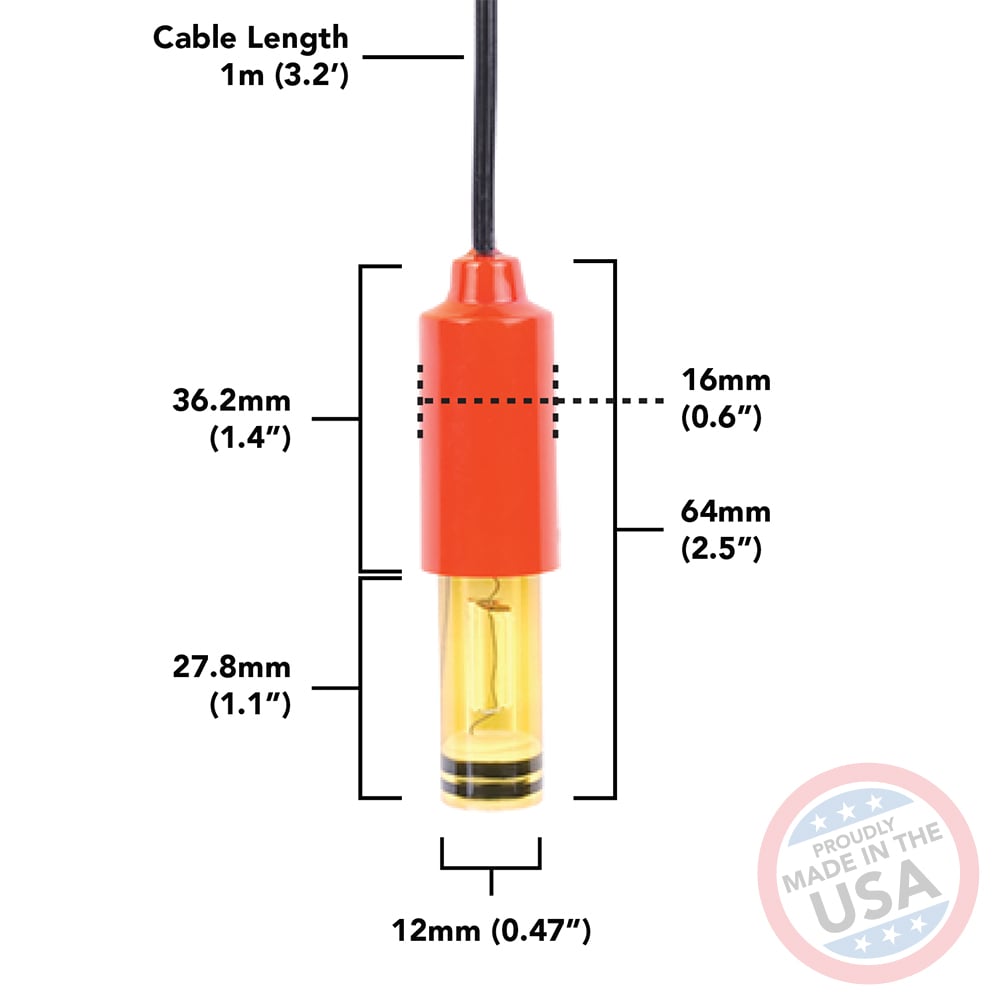

| Cable length | 1 meter (3.2′) |
| Internal temperature sensor | No |
| Time before recalibration | ~1 Year |
| Life expectancy | ~2 Years |
Documents & downloads
- Mini Lab Grade pH Probe Datasheet
- How to measure the pH of soil
- How to properly cut your probe cable
- Connecting probes into a pipe
- RoHS Certificate
- CE Certificate
- CSA Certificate
- European legislation Regulation (EU) No 10/2011
- European legislation Regulation (EU) No 1935/2004
- pH Temperature Compensation Calculator
- ENV-20-pH 3D model (*step)
