(Previously known as the Gravity Analog ORP Sensor / Meter)

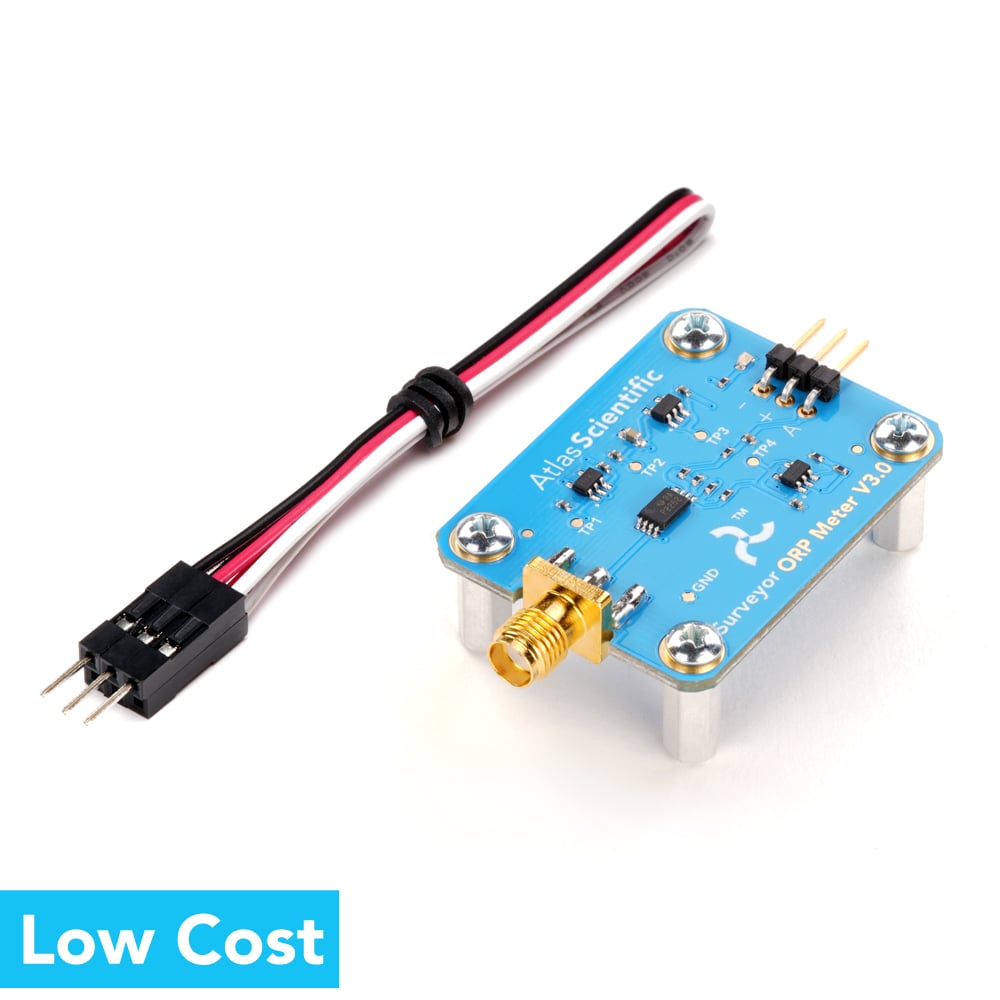

Every project is different; sometimes, you need high accuracy digital readings. And other times, you only need a basic analog output. For those of you looking to add ORP measurements into your device but want something simple, the Atlas Scientific Surveyor™ ORP Meter/Sensor is for you. This low-cost ORP meter gives you the same capabilities found in basic hand-held meters, with an easy way of capturing the data.
Specifications
Reads
ORP
Range
-1500mV − 1500mV
Accuracy
+/– 1mV
Response time
Continuous analog output
Supported probes
Any type & brand
Calibration
Optional
Temp. compensation
No (unnecessary)
Data protocol
Analog 0 − 3V

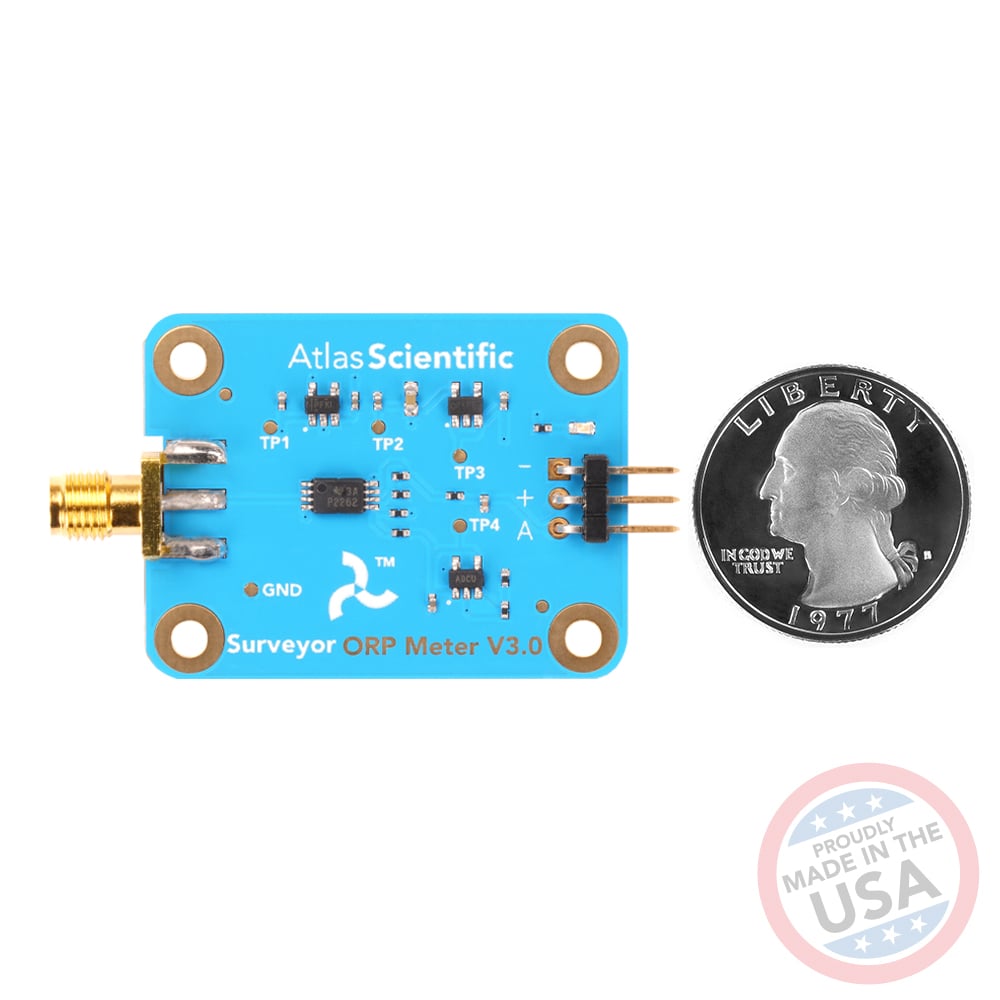

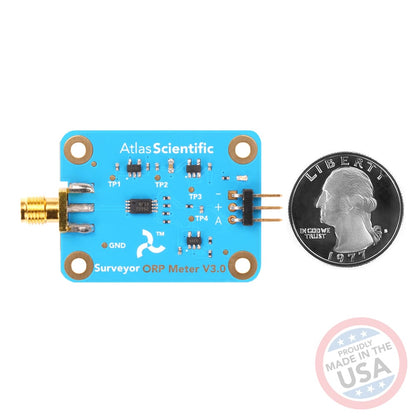

Surveyor™ dimensions
56.2mm x 32mm (2.2″ x 1.2″)
Weight
15 grams

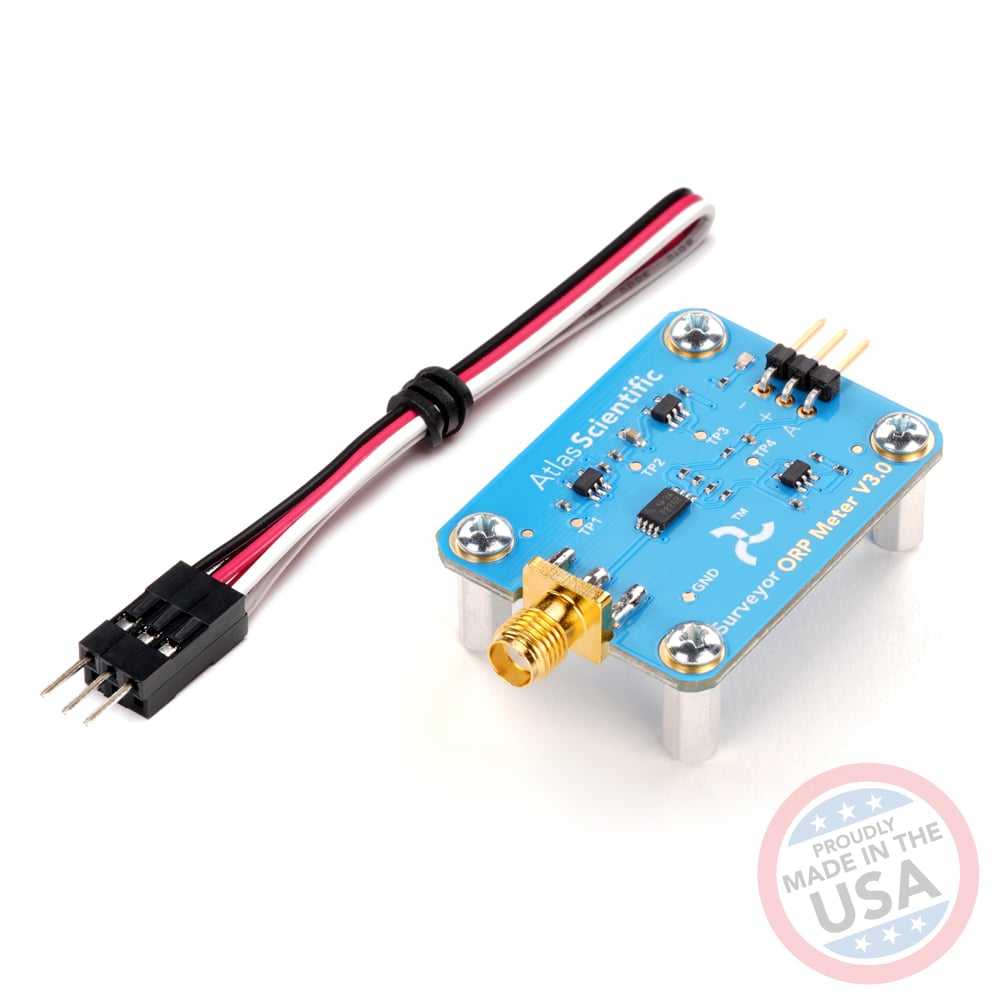

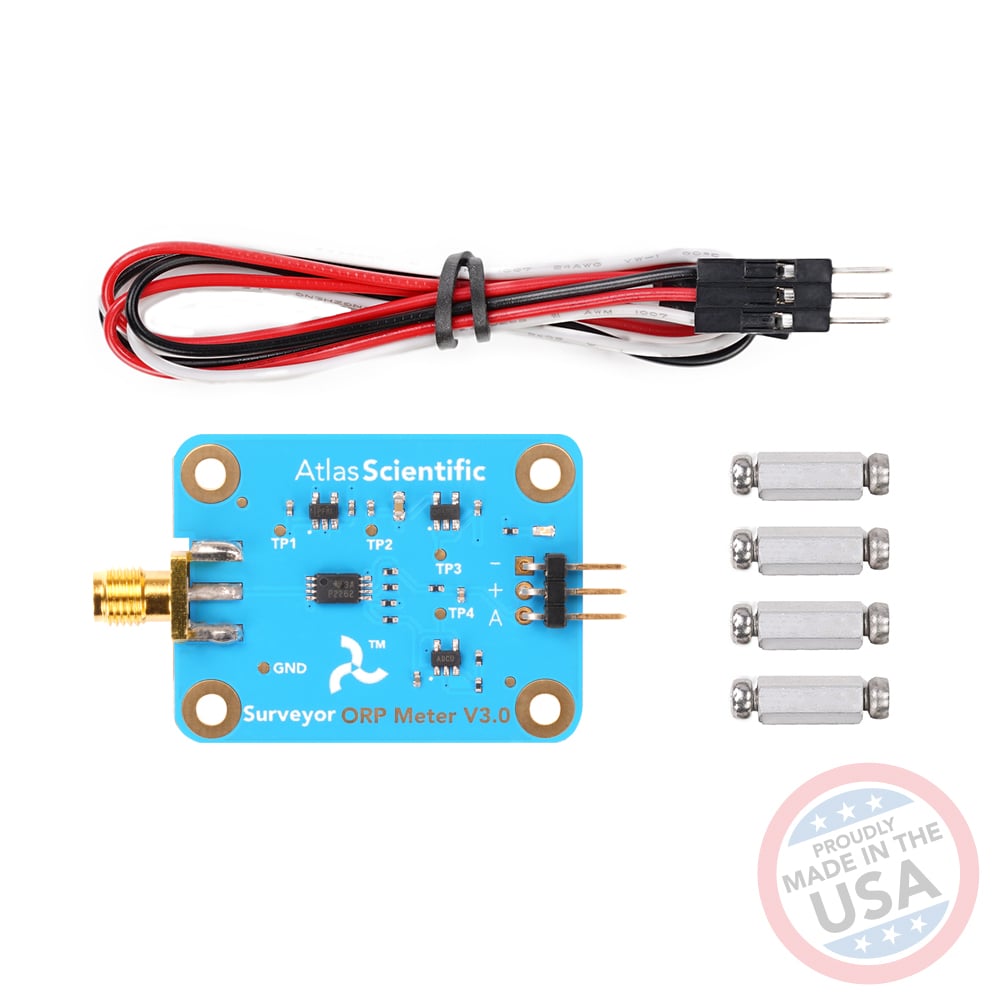

The Surveyor™ Analog ORP Sensor / Meter comes with (4) standoffs and screws, (1) 3 pin jumper cable
