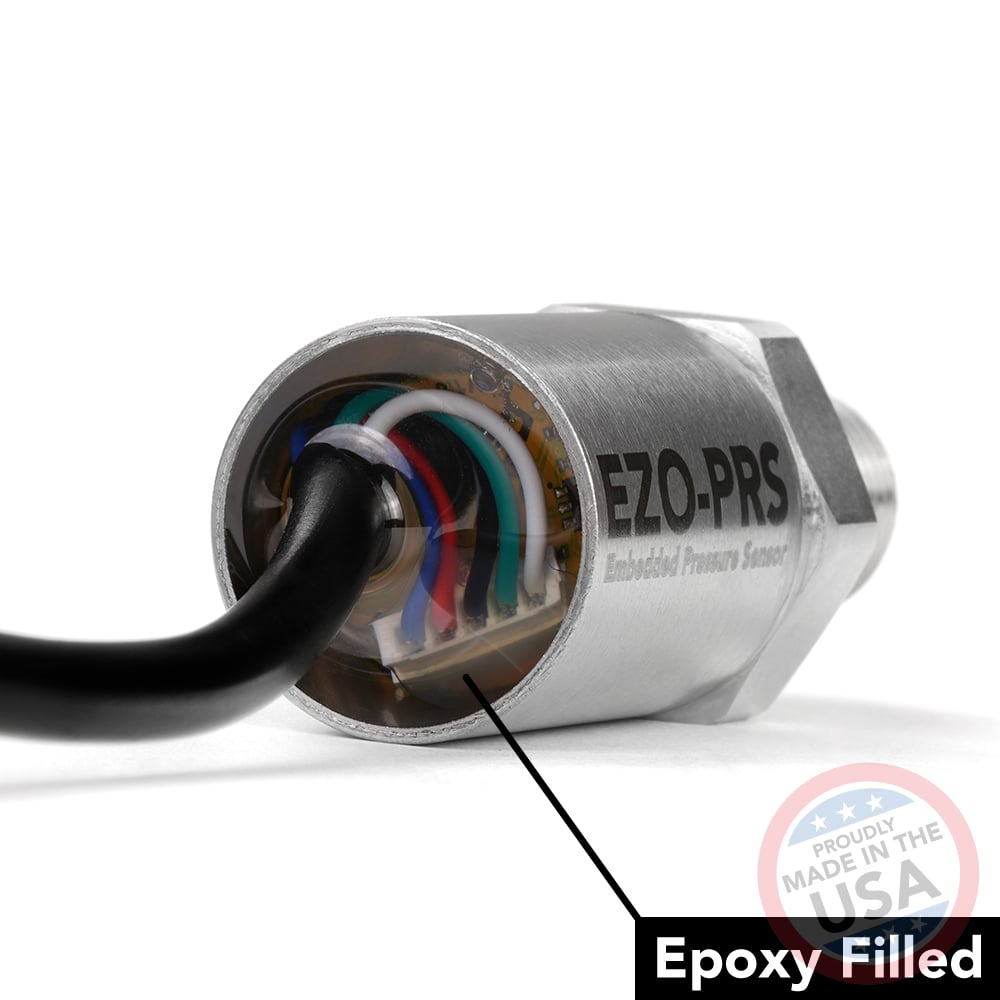

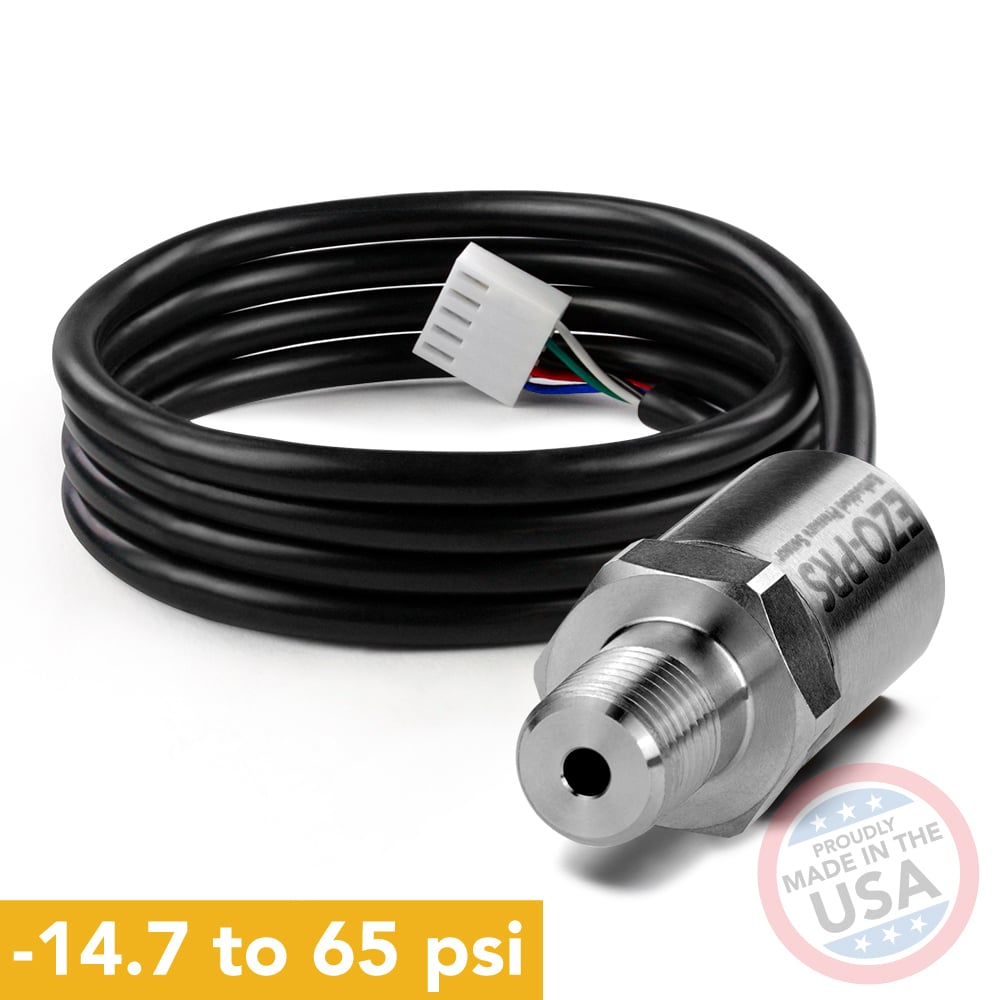

EZO-PRS™ Embedded Pressure Sensor
EZO-PRS™ Embedded Pressure Sensor
Regular price
66.666 HUF
Regular price
Sale price
66.666 HUF
Taxes included.
Finding a good pressure sensor can be tough. Some seem so cheap they couldn’t possibly have any meaningful accuracy, while others are so expensive, how could anyone use them? The Atlas Scientific EZO-PRS is a digital pressure sensor that provides the accuracy you need at a reasonable cost. The sensor can read the pressure of a liquid, gas, or oil from -14.7 to 65 psi.

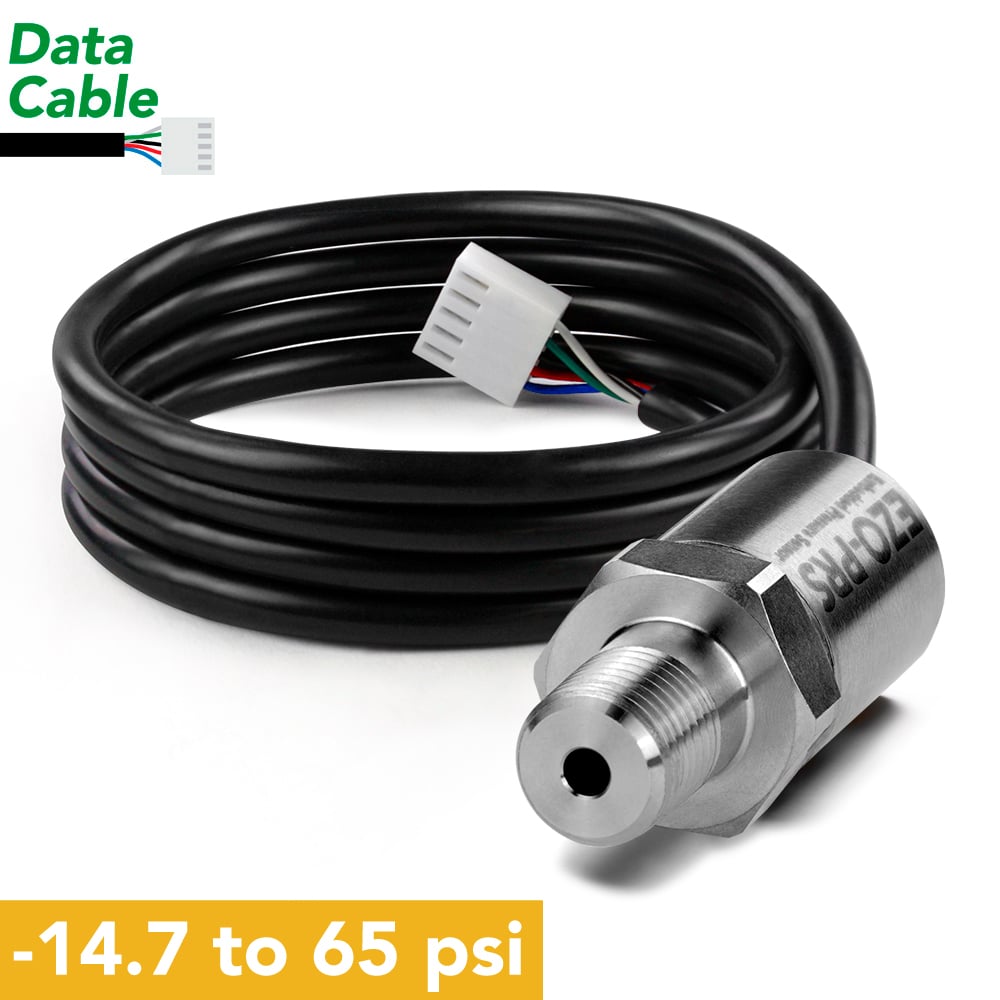

The EZO-PRS™ comes with: One embedded pressure sensor, and one data cable with 5 pin male header.
Specifications
| Type | Compound pressure sensor |
| Reads | psi (-14.7 to 65) Default |
| atm (-1 to 4.42) | |
| bar (-1 to 4.48) | |
| kPa (-101.3 to 488) | |
| inches of water (0 – 1,800”) | |
| cm of water (0 – 4,570cm) | |
| Response time | 1 reading per second |
| Resolution | 0.001 |
| Accuracy | +/- 1.35% (1 psi) |

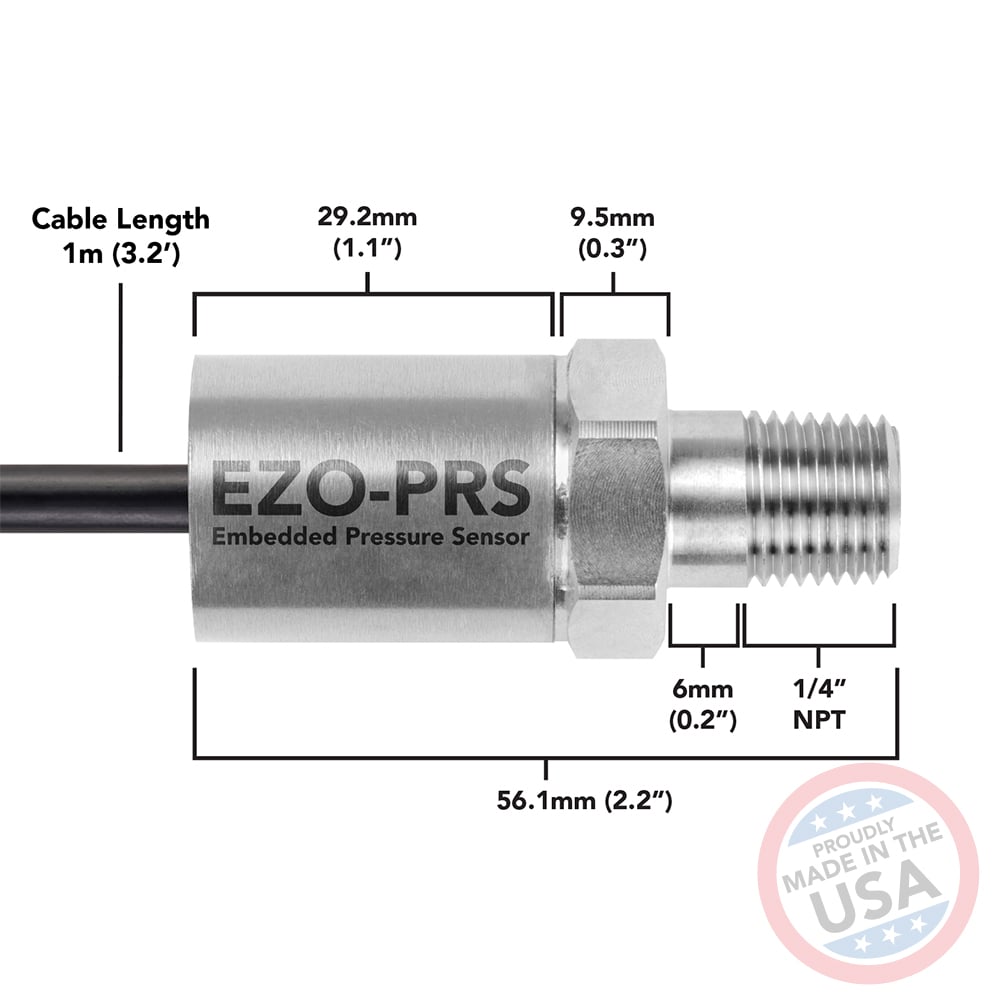

| Threaded connection | 1/4″ NPT |

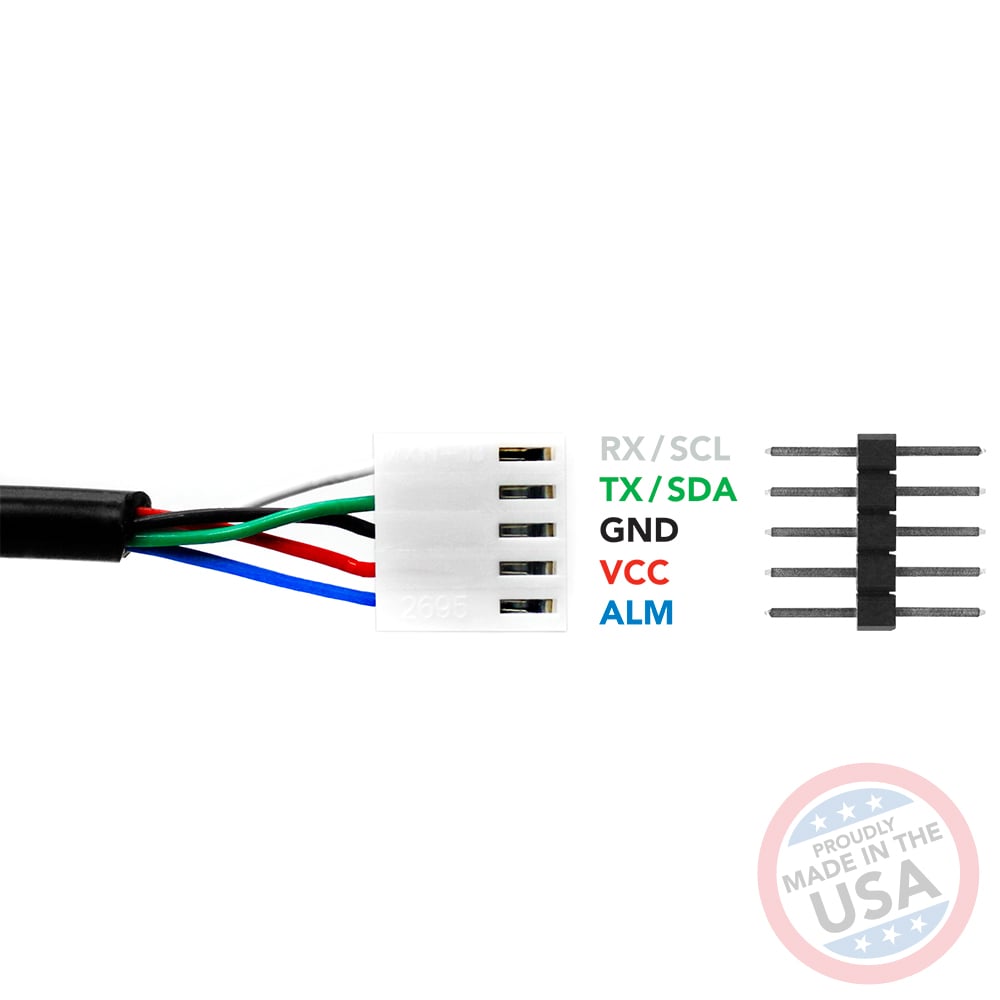

| Cable | 1 meter / 5 lead |
| Data protocol | UART & I2C |
| Default I2C address | 106 (0x6A) |
| Data format | ASCII |
| Operating voltage | 3.3V − 5V |
| Water resistant/dust proof | IP67 |
Documents & downloads
- EZO-PRS™ Datasheet
- RoHS Certificate
- CE Certificate
- CSA Certificate
- FREE Software - AtlasDesktop Monitoring Software
- AtlasDesktop Monitoring Software Users Guide
- Arduino Uno Sample Code
- Arduino Mega / Giga Sample Code
- Arduino I2C Sample Code
- Raspberry Pi Sample Code (I2C)
- EZO UART Library
- EZO I2C Library
- EZO-PRS™ 3D model (*step)
