Wi-Fi Aquaponics Kit

Wi-Fi Aquaponics Kit

484.346 HUF
484.346 HUF
Sale Sold out
Taxes included.

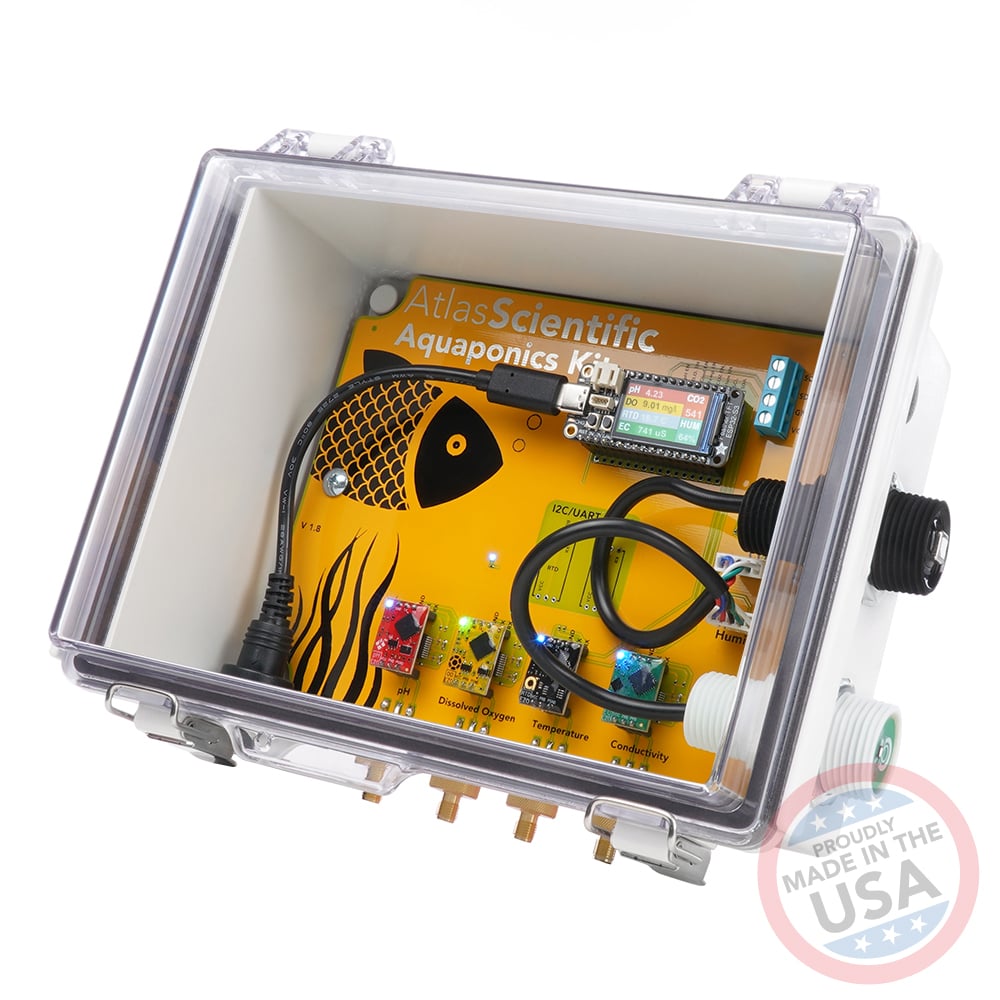

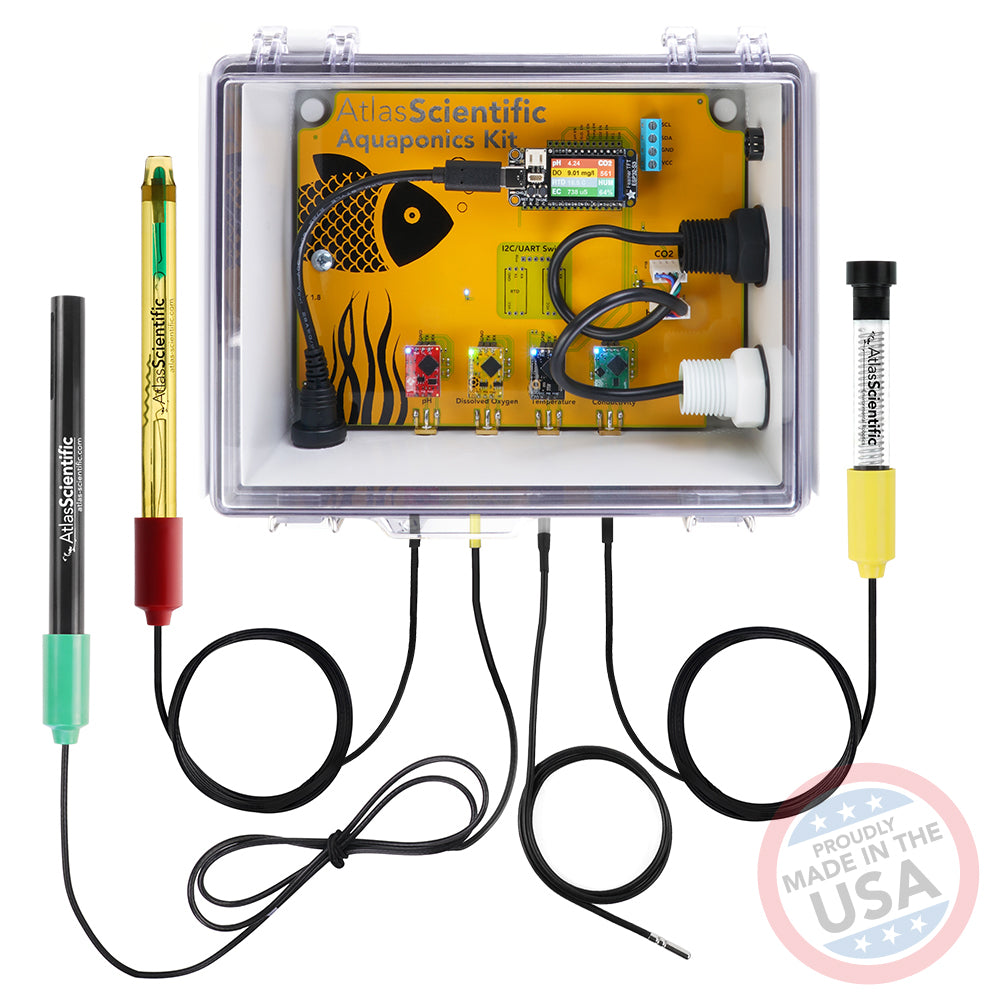

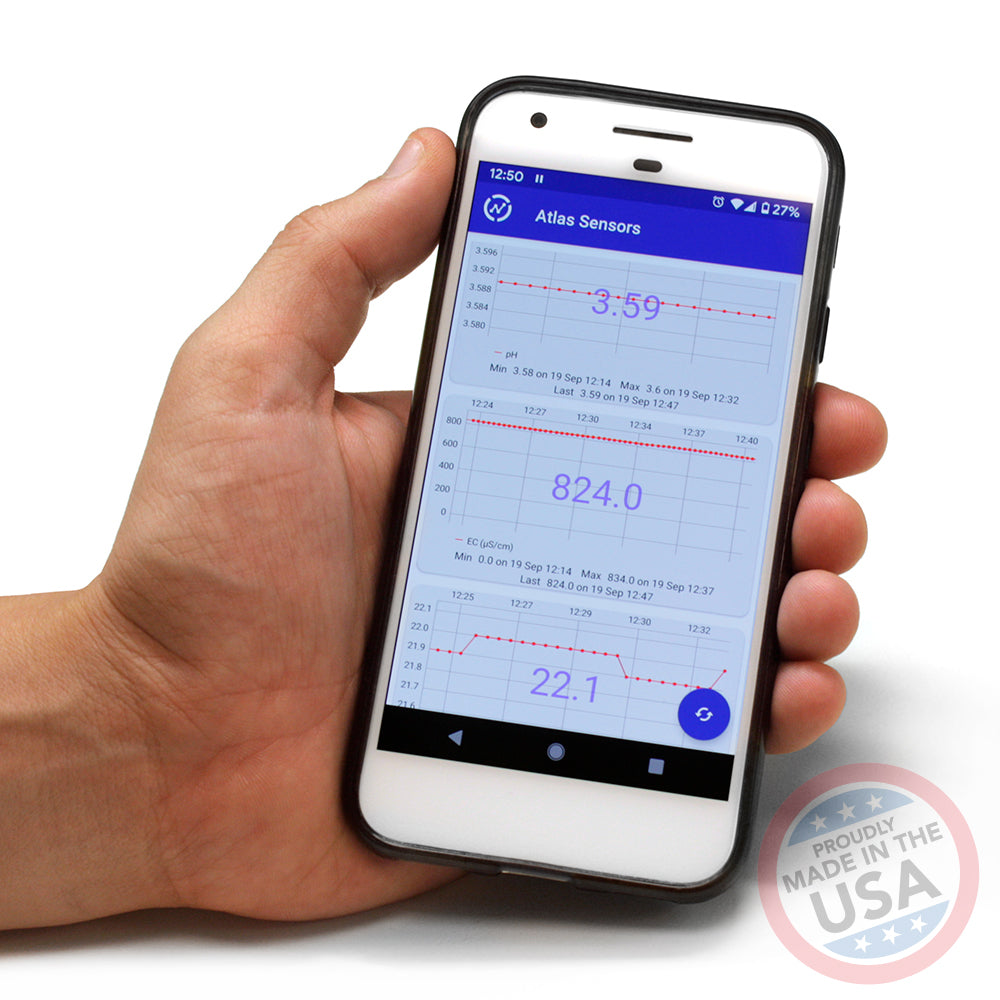

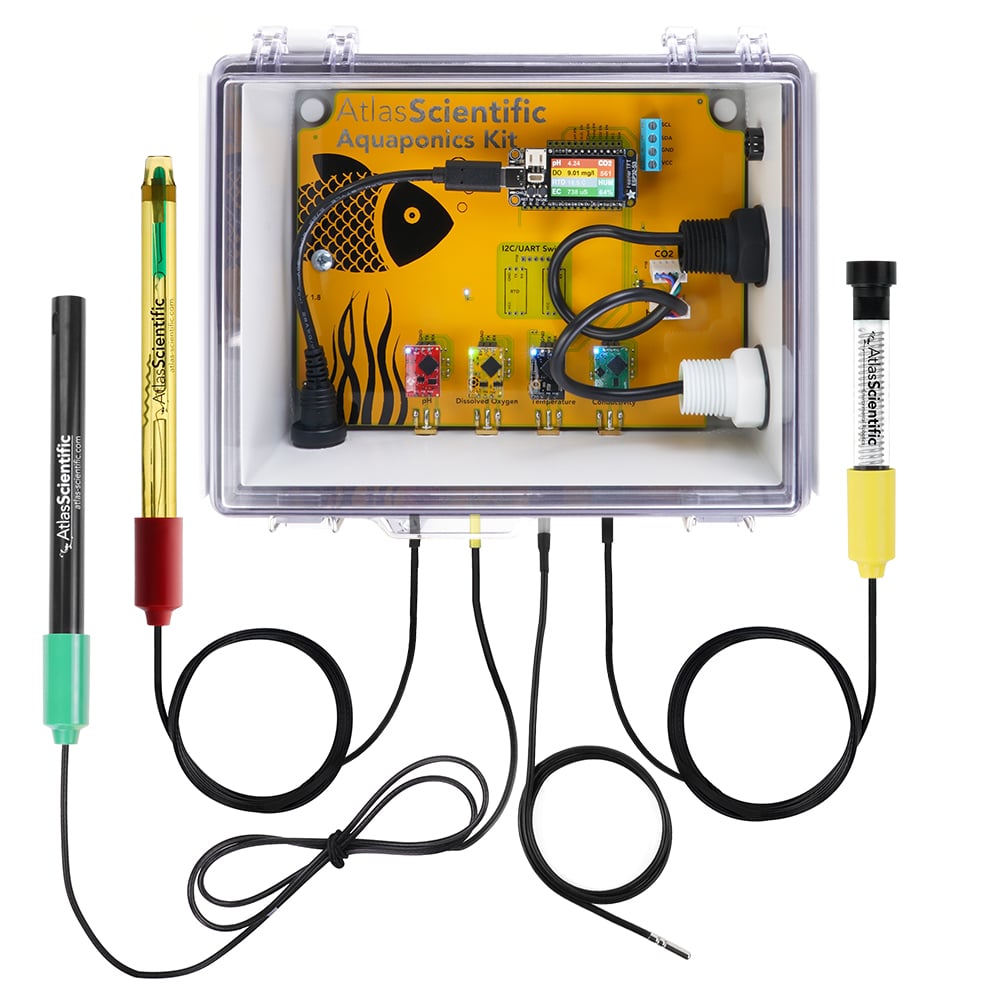

The Atlas Scientific Wi-Fi Aquaponics Kit reads pH, Dissolved Oxygen, Temperature, Conductivity, CO2, and Humidity. The pH, Dissolved Oxygen, and Conductivity readings are automatically temperature compensated. Measurements are now displayed on the microcontroller’s screen and uploaded to ThingSpeak, enabling remote monitoring from a phone, tablet, or PC. The code and setup instructions are available in the download section of this page.

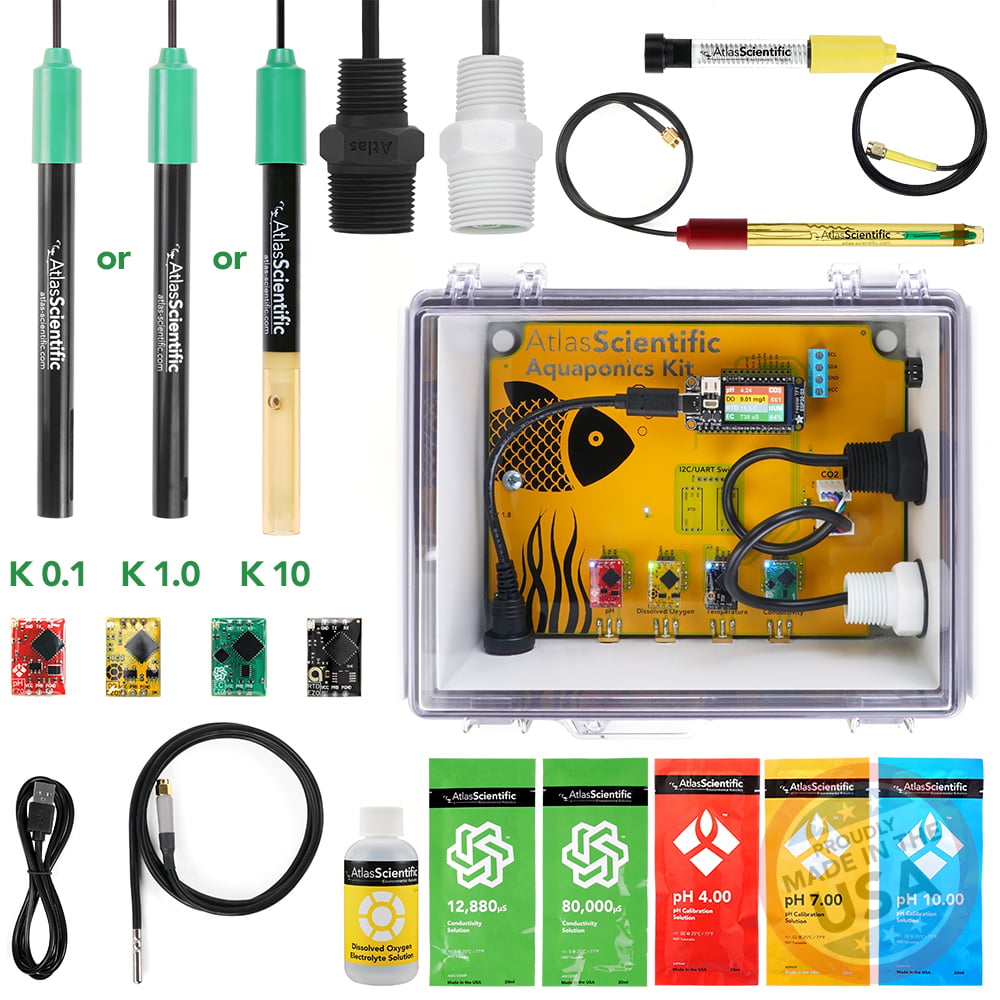

The Wi-Fi Aquaponics Kit comes with:

1x Enclosure with hardware assembled within (includes 1x 3′ USB C cable)

1x EZO pH circuit 1x Gen 3 Lab grade pH probe 3x 20ml calibration solution pouches (1x pH 4, 1x pH 7 and 1x pH 10)

1x EZO Dissolved Oxygen circuit 1x Lab grade Dissolved Oxygen probe

1x EZO RTD Temperature circuit 1x Standard PT-1000 temperature probe

1x EZO Conductivity circuit 1x Conductivity probe (K 0.1, K 1.0 or K10) 2x Conductivity calibration solutions (K 0.1, K 1.0 or K10)

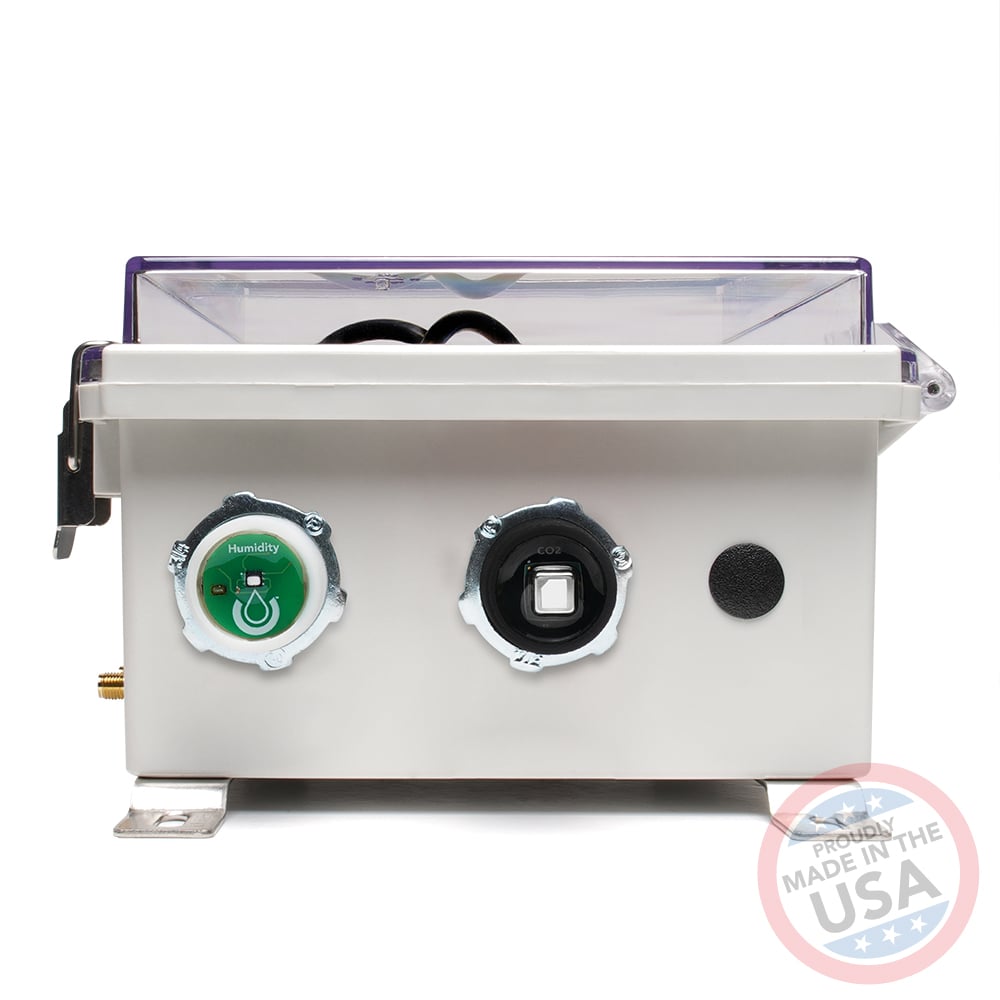

1x ENV-CO2™ Environmental Grade CO2 Sensor – Plastic Body 1x EZO-HUM™ Embedded Humidity Probe – Plastic Body

Specifications

• No soldering required
• No programming necessary
• Automatically uploads data to ThingSpeak cloud
• Access to data on phone, tablet or PC
• Auto temperature compensation for pH, Dissolved Oxygen and Conductivity

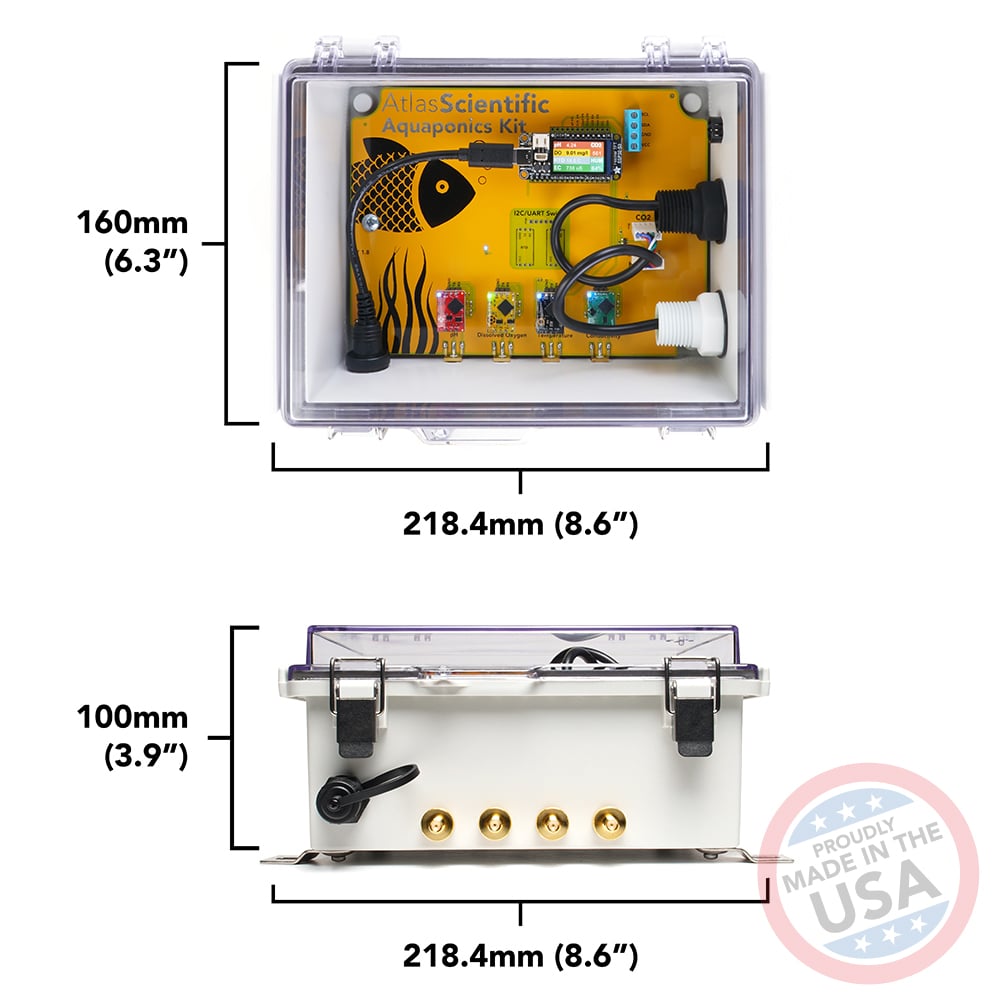

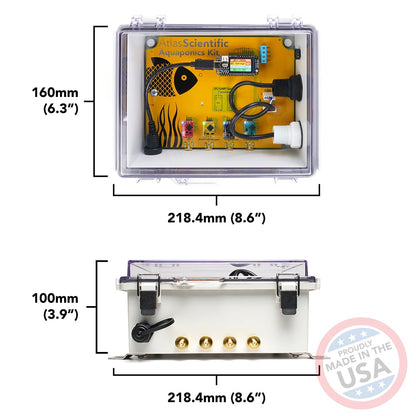

• Pre-drilled / wall mountable case with clear top
• pH range: 0 − 14 / resolution 0.01
• Dissolved Oxygen range: 0 − 100 mg/L
• Conductivity range: 0 − 200K / resolution 1μS
• CO2 range: 400 − 5,000 ppm
• Humidity range: 0 – 100%
• Operating voltage: 5V
• Current consumption: 310mA at 5V
• Three electrically isolated slots (pH, Dissolved Oxygen and Conductivity )
• Calibration solutions included.
• IP64 (dust and water splash proof)
• I2C mode only
