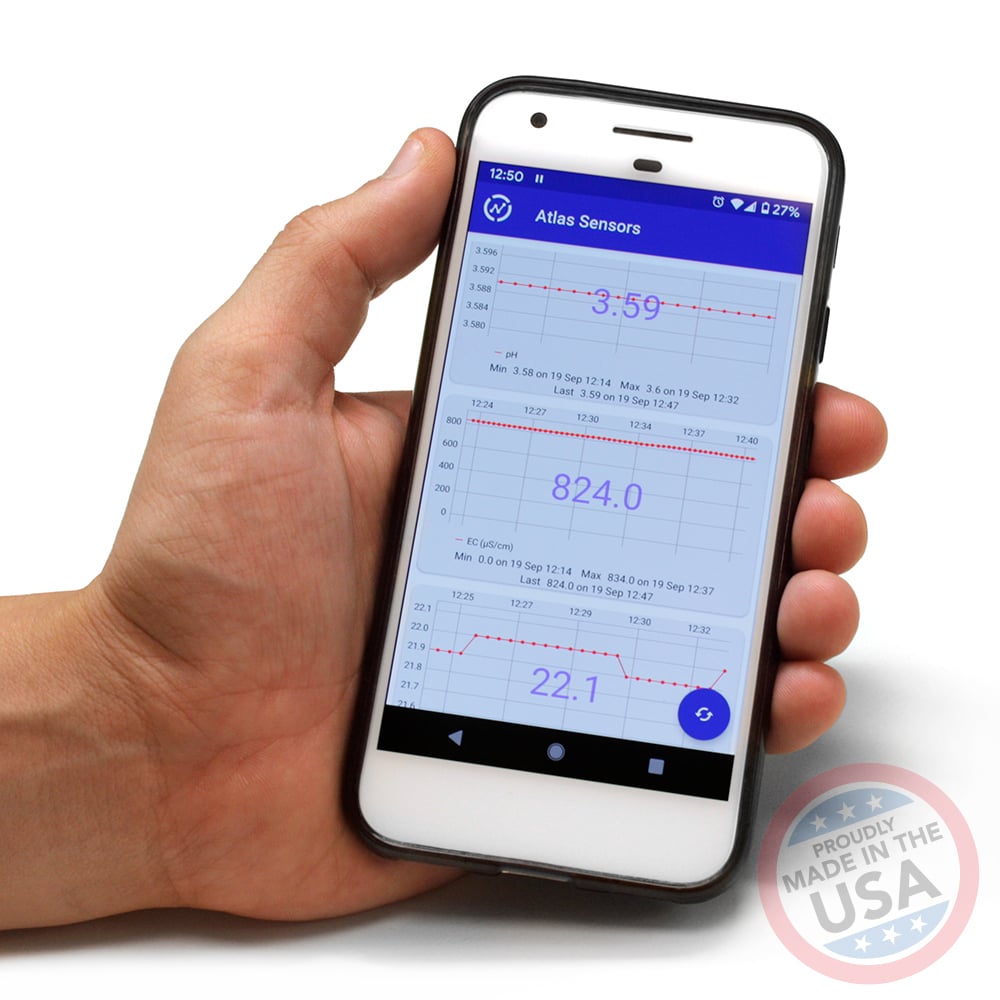

The Atlas Scientific Wi-Fi Hydroponics Kit reads pH, Conductivity, and Temperature. The pH and Conductivity readings are automatically temperature compensated. Measurements are now displayed on the microcontroller’s screen and uploaded to ThingSpeak, enabling remote monitoring from a phone, tablet, or PC. The code and setup instructions are available in the download section of this page.

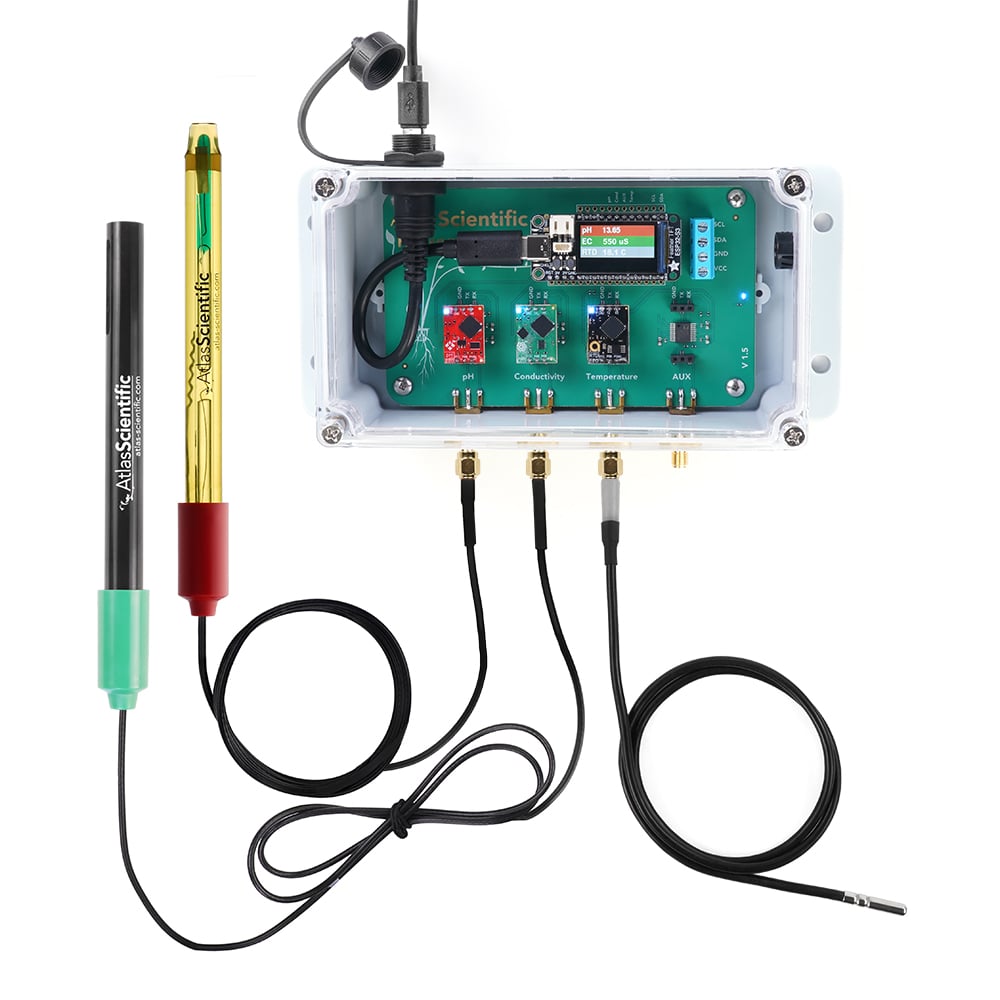

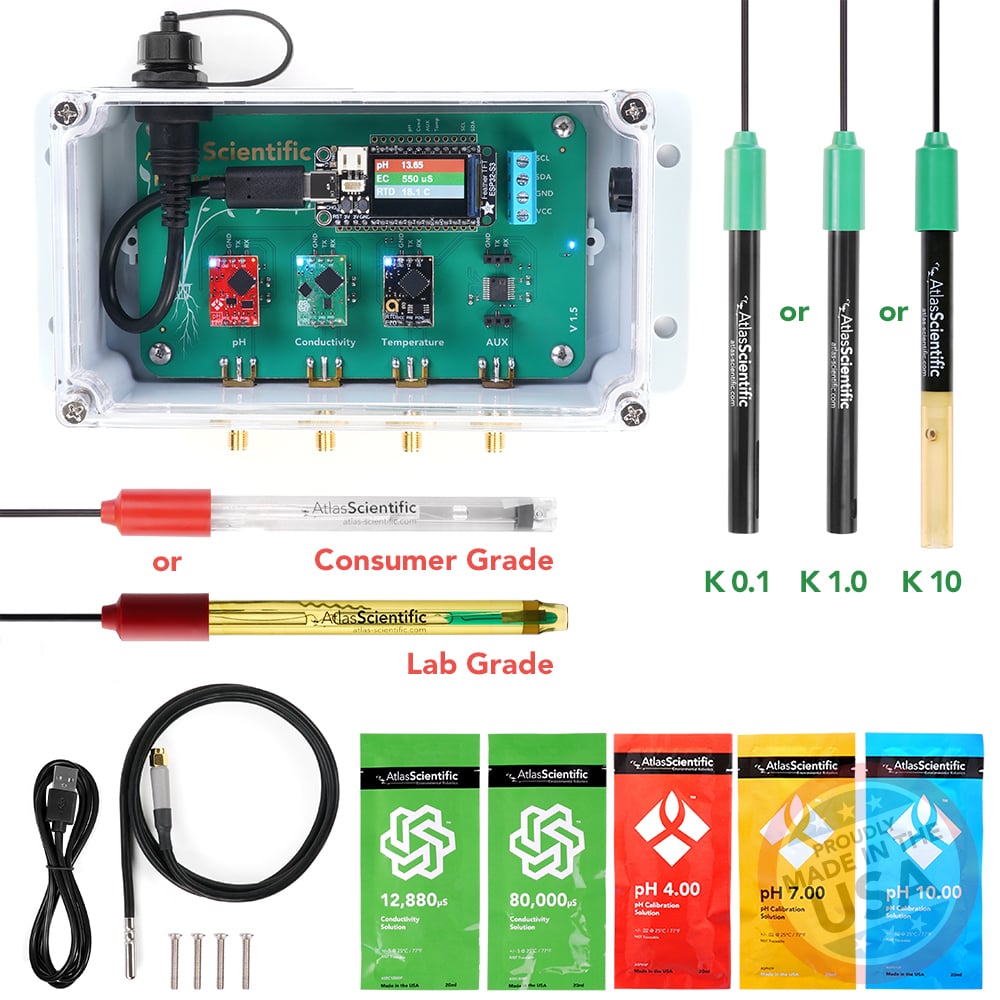

The Wi-Fi Hydroponics Kit comes with:
1x Enclosure with hardware assembled within (includes 1x 3′ USB C cable)
1x EZO pH circuit 1x pH probe (Consumer grade or Lab grade) 3x 20ml calibration solution pouches (1x pH 4, 1x pH 7 and 1x pH 10) 1x EZO RTD Temperature circuit 1x Standard PT-1000 temperature probe
1x EZO Conductivity circuit 1x Conductivity probe (K 0.1, K 1.0 or K10) 2x Conductivity calibration solutions (K 0.1, K 1.0 or K10)
Specifications
• No soldering required
• No programming necessary
• Automatically uploads data to ThingSpeak cloud
• Access to data on phone, tablet or PC
• Auto temperature compensation for pH and Conductivity

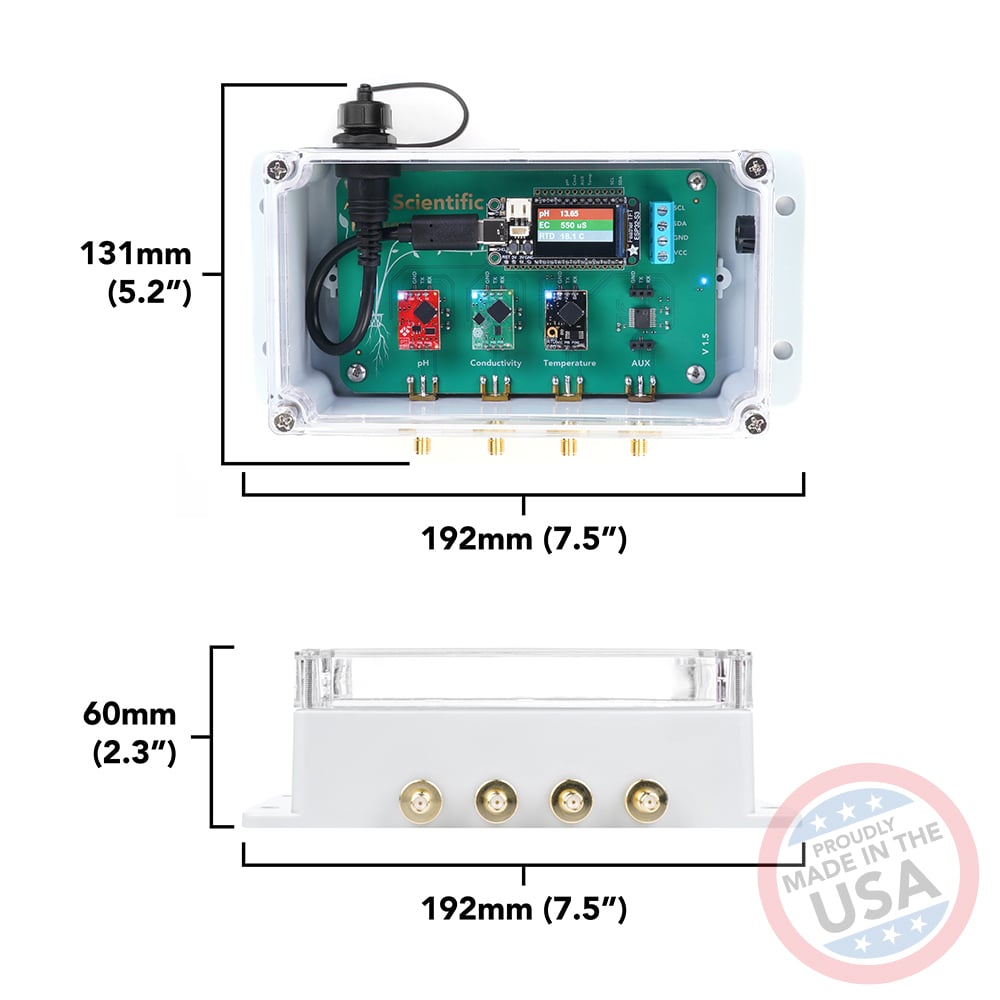

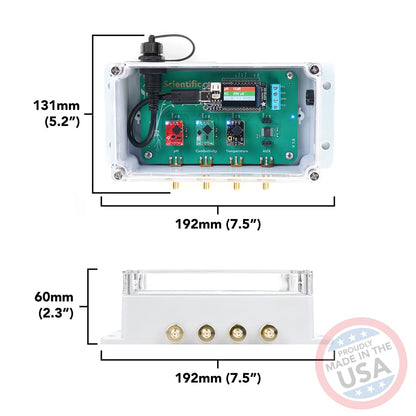

• Pre-drilled / wall mountable case with clear top
• pH range 0 − 14 / resolution 0.01
• Conductivity range 0 − 200K / resolution 1μS
• Operating voltage : 5V
• Current consumption : 310mA at 5V

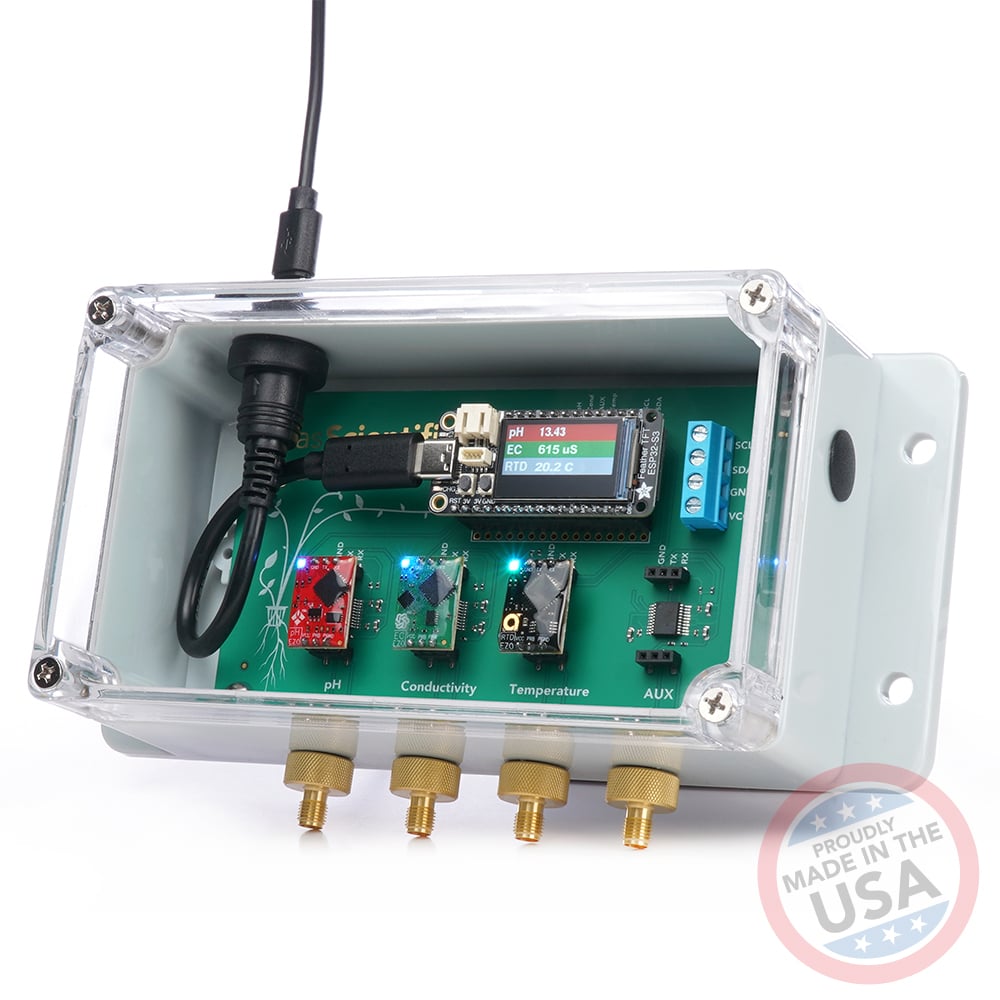

• Three electrically isolated slots (pH, Conductivity and AUX)
• One auxiliary (AUX) slot for an additional sensor
